Gigabyte B760m D3hp board, intel, 1700, b760, 4ddr5, 256gb, vga+hdmi+dp, 4sata+2m.2,5usb3.2, gblan, matx

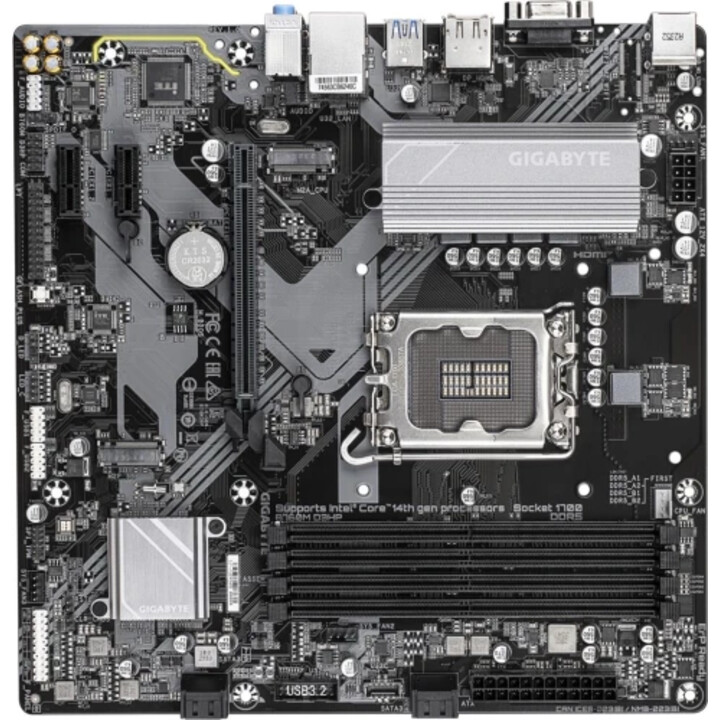

The Gigabyte B760M D3HP G10 is a micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 socket. It features the B760 chipset and supports DDR5 memory with four slots capable of up to 256GB. The board includes integrated graphics outputs via VGA, HDMI, and DisplayPort, making it suitable for systems without a discrete GPU.

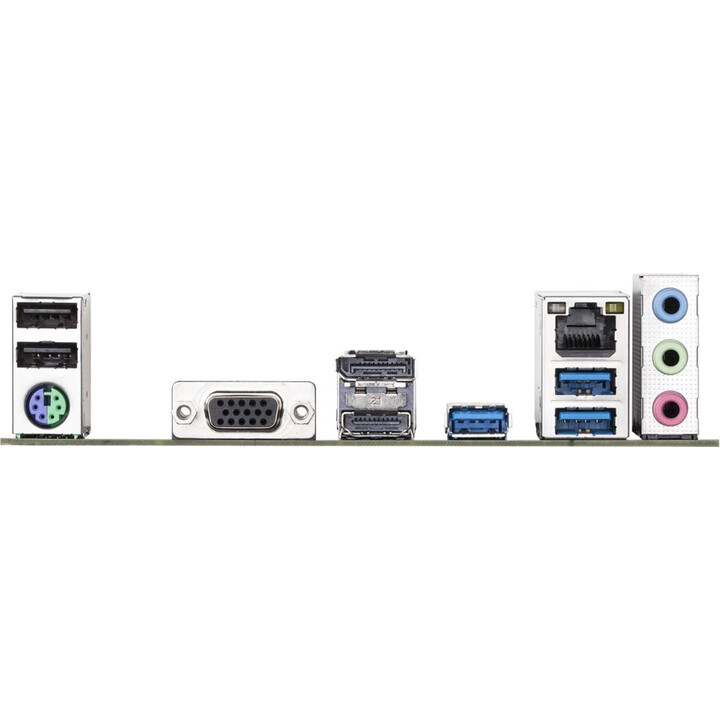

Storage options include four SATA III ports and two M.2 slots with PCIe 4.0 x4 support for fast NVMe SSDs. Connectivity is handled by five USB 3.2 Gen1 ports on the rear I/O and a Gigabit Ethernet LAN port. The board also provides a PCIe 4.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for expansion.
