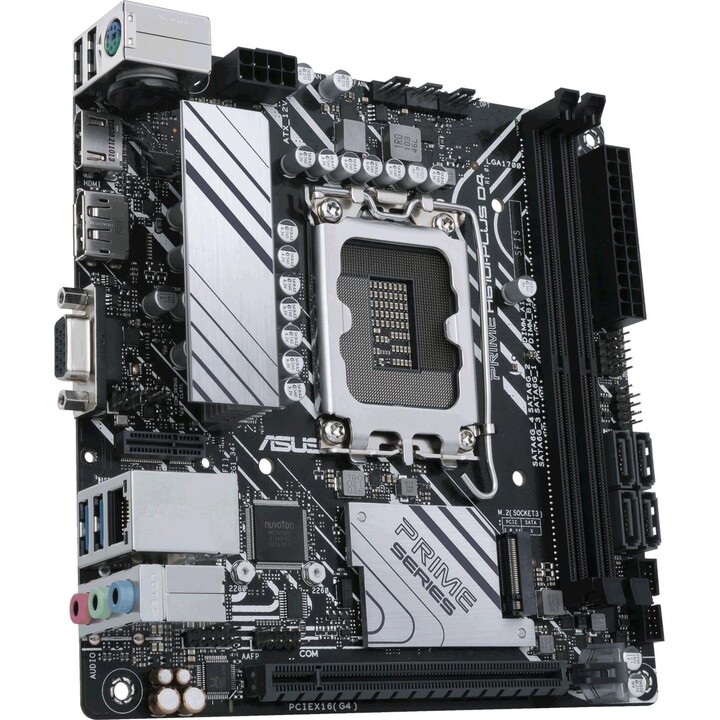

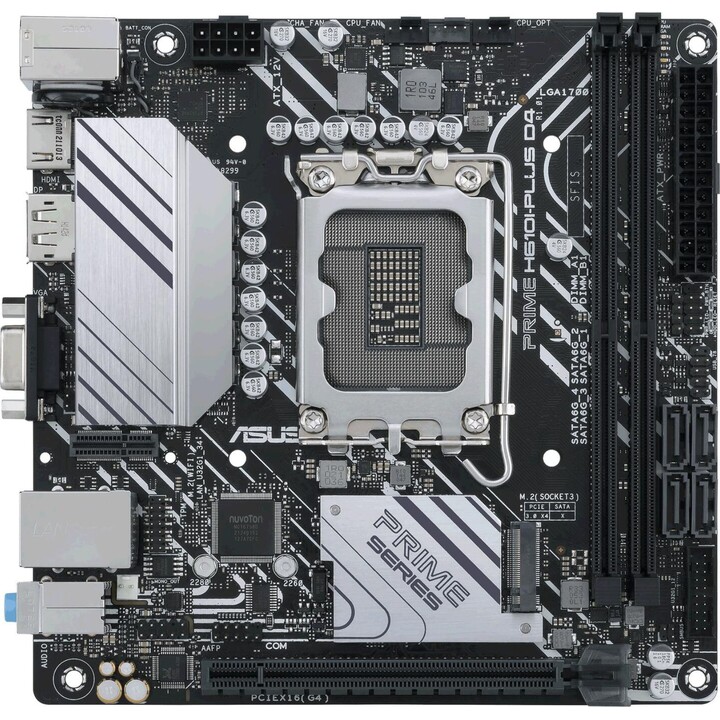

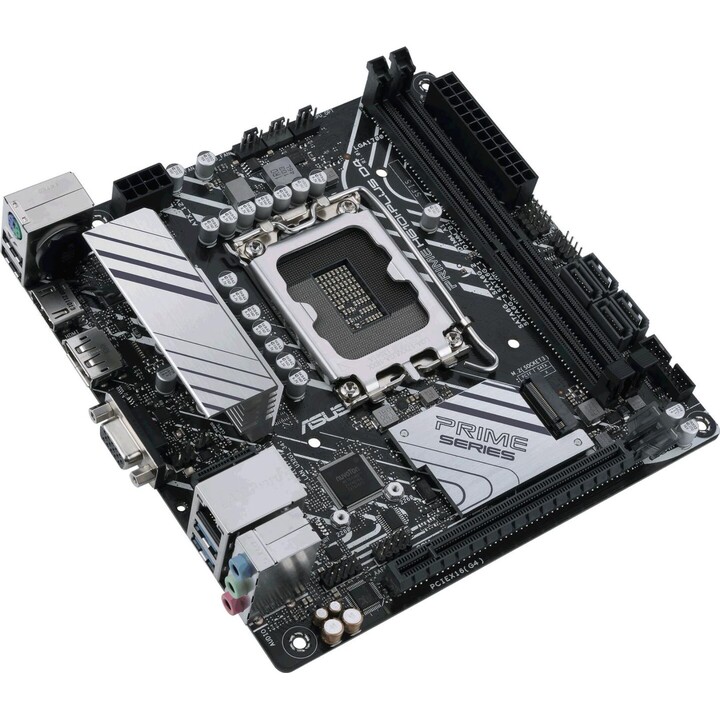

Asus Prime H610i-plus D4-csm Intel H610 Lga 1700 Mini Itx

ASUS PRIME H610I-PLUS D4-CSM BOARD,INTEL,1700,H610,2DDR4,64GB,VGA+HDMI+DP,GBLAN,4SATA3+1M.2,3USB3.2,M-ITX

Specs:

- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Supported processor sockets: LGA 1700
- Maximum internal memory supported by the processor: 64GB
- supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slot type: DIMM
- Maximum internal memory: 64GB
- Memory channels: Dual-channel
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz
- No ECC: Yes
- Unbuffered memory: Yes
- Ethernet: Yes
- Ethernet interface type: Gigabit Ethernet
- Wifi: No
- USB 2.0, connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX power connector (24 pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Fan connector: Yes
- USB 2.0: 2
- USB 3.2 Gen 1 (3.1 Gen 1): 2
- PS/2 mouse port: 2

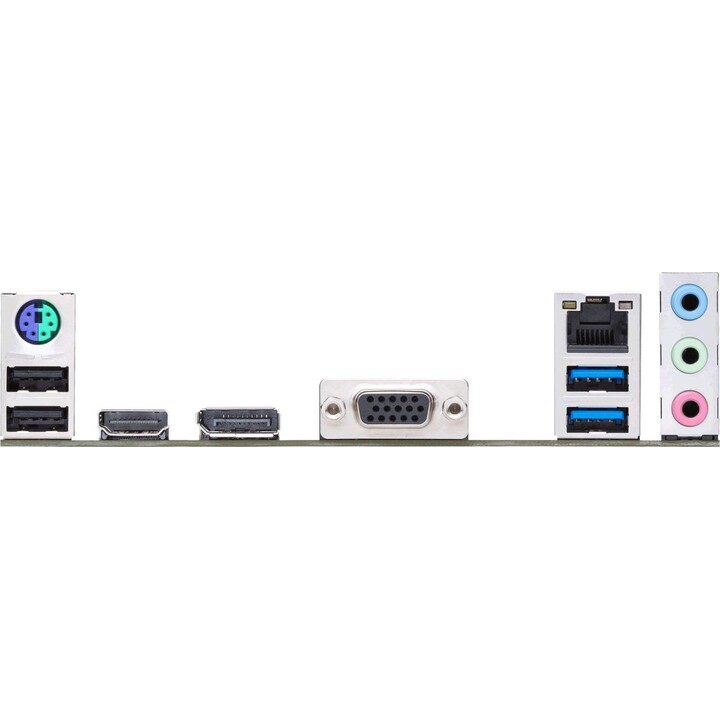

- Ethernet LAN ports (RJ-45): 1
- VGA ports (D-Sub): 1
- HDMI ports: 1
- HDMI version: 2.1
- DisplayPort: 1
- DisplayPort version: 1.4
- Headphone jack: 2
- Microphone input: Yes
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- PCI Express x16 (Gen 4.x) Slots: 1
- Number of M.2 (M) slots: 1
- BIOS types: UEFI AMI
- BIOS, memory size: 128 MB/s
- Chipset family: Intel
- Chipset: Intel H610
- Form factor: Mini ITX
- Audio output channels: 7.1 channels
- Power supply: ATX
- Harmonization System (HS) Code: 84733020
- Component for: PC
- Supported Windows operating system: Windows 10, Windows 11
- Compatible operating systems: Windows® 11 64-bit, Windows® 10 64-bit
- Width: 170.2 mm
- Depth: 170.2 mm
- Package width: 226 mm
- Package depth: 182 mm
- Package height: 60 mm
- Weight: 382 g
- Height: 71 mm
- Cables included: SATA
- Controllers included: Yes
