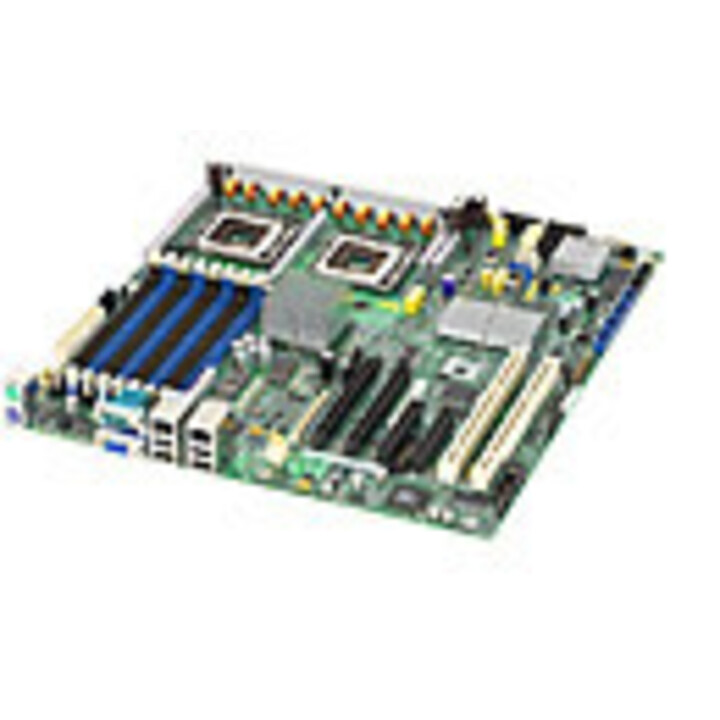

Intel Server Board S5000pslrombr Motherboard for Server and Workstation Lga 771 (socket J) Ssi Eeb Intel® 5000p

(EOL) INTEL SERVER MOTHERBOARD S5000PSLROMBR 900325 (STAR LAKE ROMB) SUPPORTS 45NM

Specifications:

- Processor manufacturer: Intel
- Processor socket: LGA 771 (Socket J)
- Number of processors supported: 2
- Processor, number of cores supported: 4
- Intel® ® Xeon ® series: 5100
- FSB processor, support: 1333,667,1066 MHz
- Number of DIMM slots: 8
- ECC: Yes
- Maximum internal memory: 64GB
- Width: 305mm
- Depth: 330mm
- Ethernet: Yes
- Wifi: No
- Ethernet interface type: Gigabit Ethernet
- LAN Controller: Intel® 82563EB
- USB 2.0, connectors: 8
- Integrated SAS ports: 8
- Serial port: 2
- Ethernet LAN ports (RJ-45): 2
- USB 2.0: 4
- HDD interface: SATA, Serial Attached SCSI (SAS)
- RAID Compatibility: Yes
- RAID levels: 0,1,5
- PCI Express x8 (Gen 1.x) slots: 2
- ARK motherboard ID: 46537
- PCI Express x4 slots (Gen 1.x): 2
- Compatible products: Intel Server Chassis SC5400
- Intel® Remote Management Modules Support: AXXRMM2
- BMC integrated with IPMI: Yes
- Low halogen options available: Yes
- Intel® I/O Acceleration Technology: Yes
- Chipset: Intel® 5000P
- Component for: Server
- Form factor: SSI EEB
