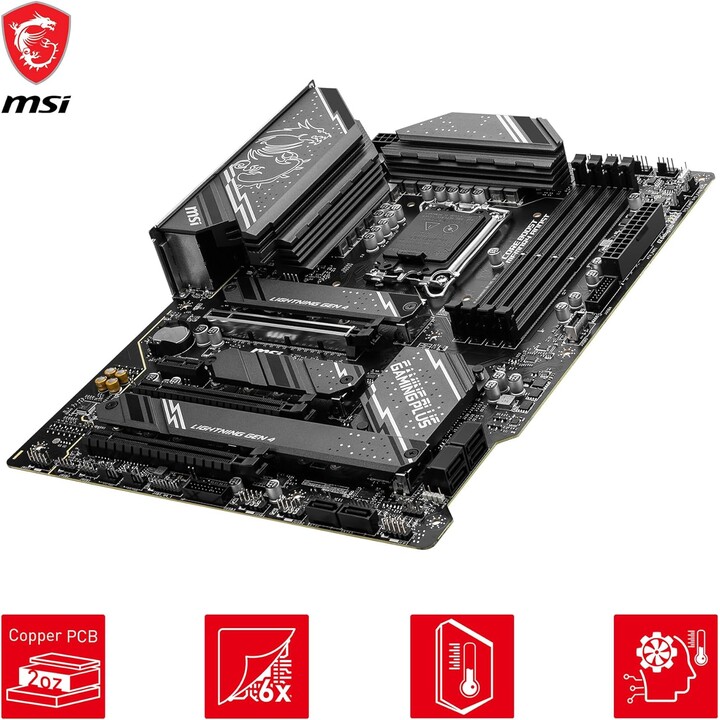

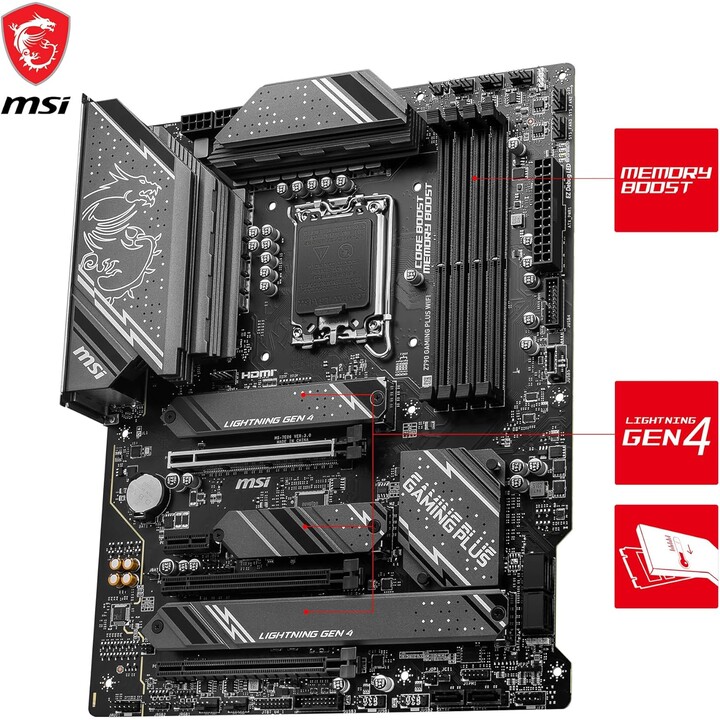

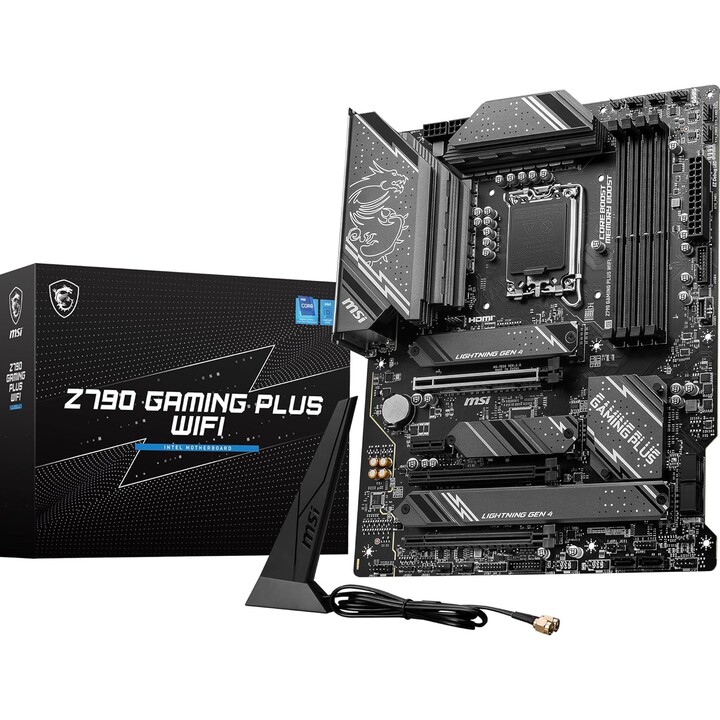

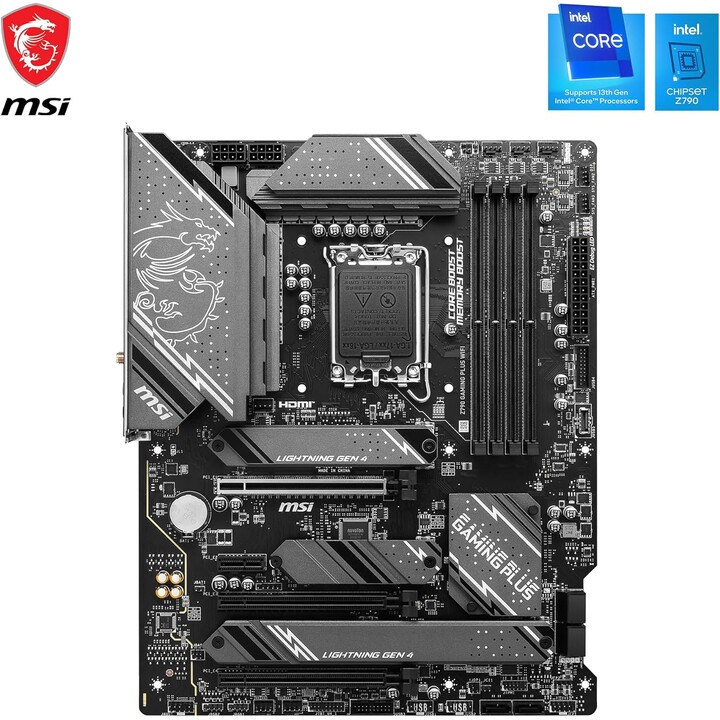

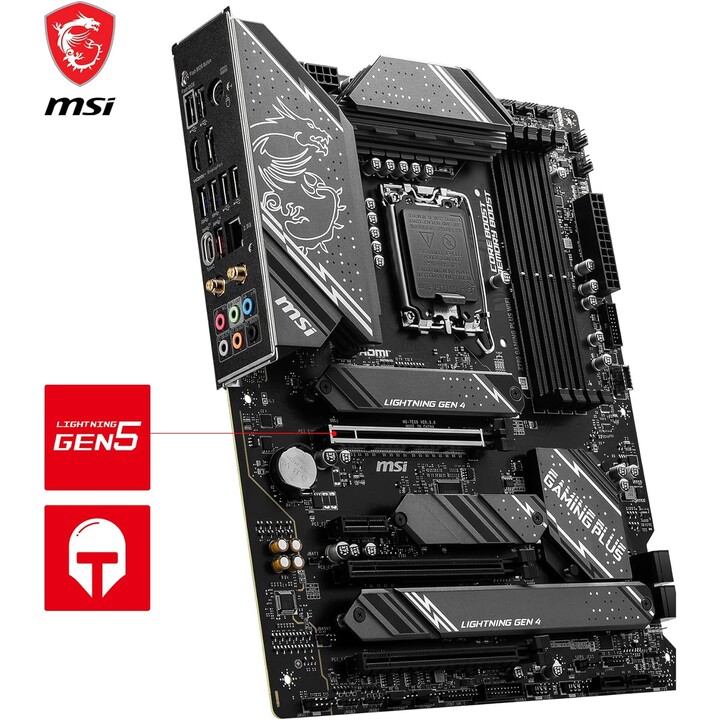

Msi Z790 Gaming Plus Wifi Motherboard Intel Z790 Lga 1700 Atx

MSI Z790 GAMING PLUS WIFI BOARD,INTEL,1700,Z790,4DDR5,192GB,HDMI+DP,6SATA3+4M.2,9USB3.2,2.5GB+WIFI6+BT5.2,ATX

Specifications:

- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor: Intel Celeron?, Intel Pentium? Gold
- Supported processor sockets: LGA 1700
- Maximum memory clock speed supported: 7200 MHz
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Maximum internal memory: 192 GB
- Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Non-ECC: Yes
- Wi-Fi Standard: Wi-Fi 6 (802.11ax)
- Ethernet: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3

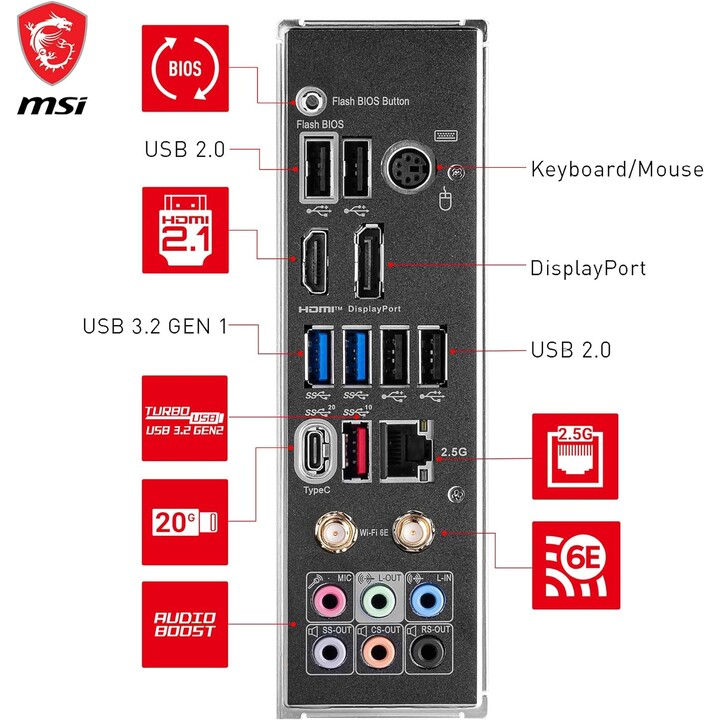

- USB 2.0, connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- Number of SATA III connectors: 6
- Audio connector on front panel: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- Connector for RGB LED strips: Yes
- TPM Connector: Yes
- Number of USB 3.2 Gen 2x2 Type C ports: 1
- USB 2.0: 4
- USB 3.2 Gen 1 (3.1 Gen 1): 2
- Number of Type A USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Ethernet LAN ports (RJ-45): 1
- S/PDIF output port: Yes
- HDMI ports: 1
- HDMI version: 2.1
- Supported storage disk interfaces: M.2, PCI Express
- Types of storage drives supported: HDD & SSD
- RAID levels: 0, 1, 5, 10
- Number of M.2 (M) slots: 4
- Support for parallel processing: Not supported
- Chipset family: Intel
- Chipset: Intel Z790
- Form factor: ATX
- Audio output channels: 7.1 channels
- Sound chip: Realtek ALC897
- Component for: PC
- Supported Windows operating system: Windows 10 x64, Windows 11 x64
- Width: 243.8mm
- Depth: 304.8 mm

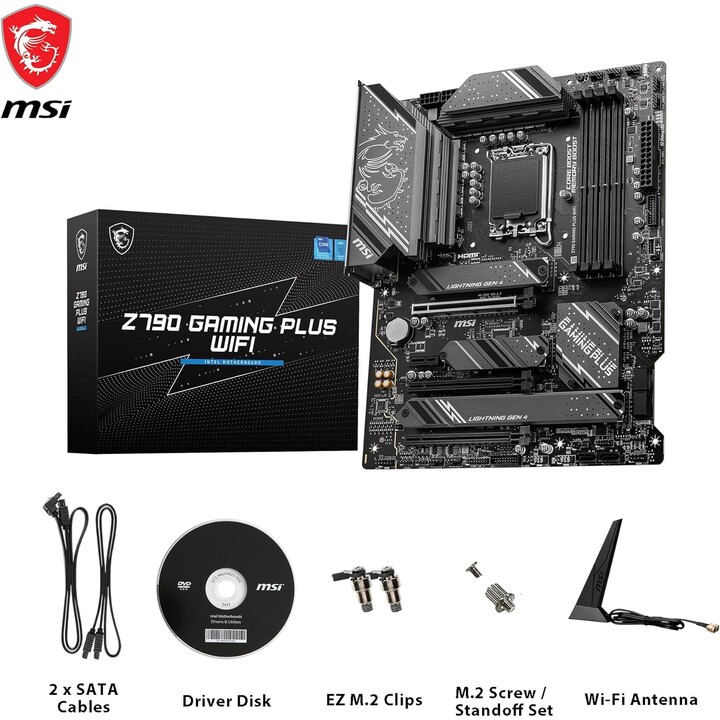

- Cables included: SATA
