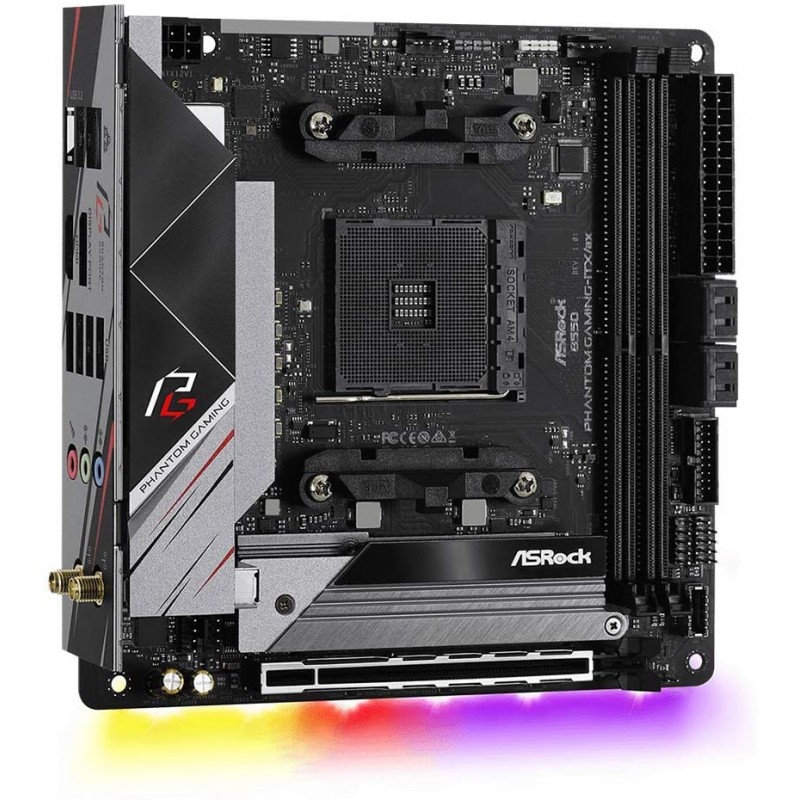

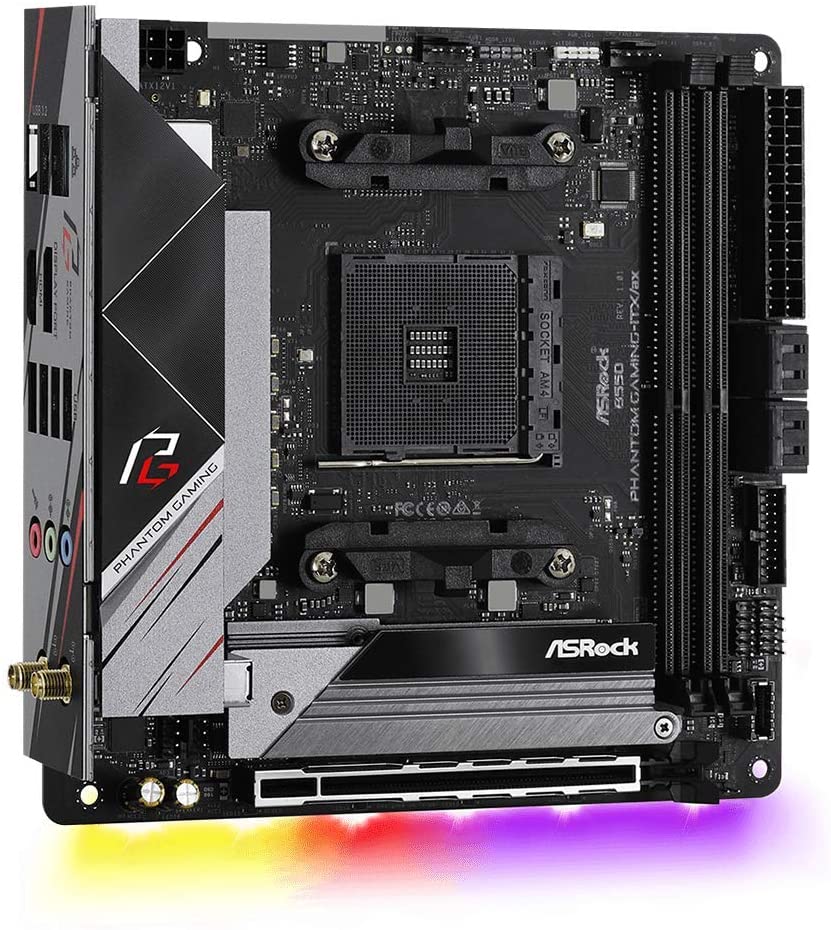

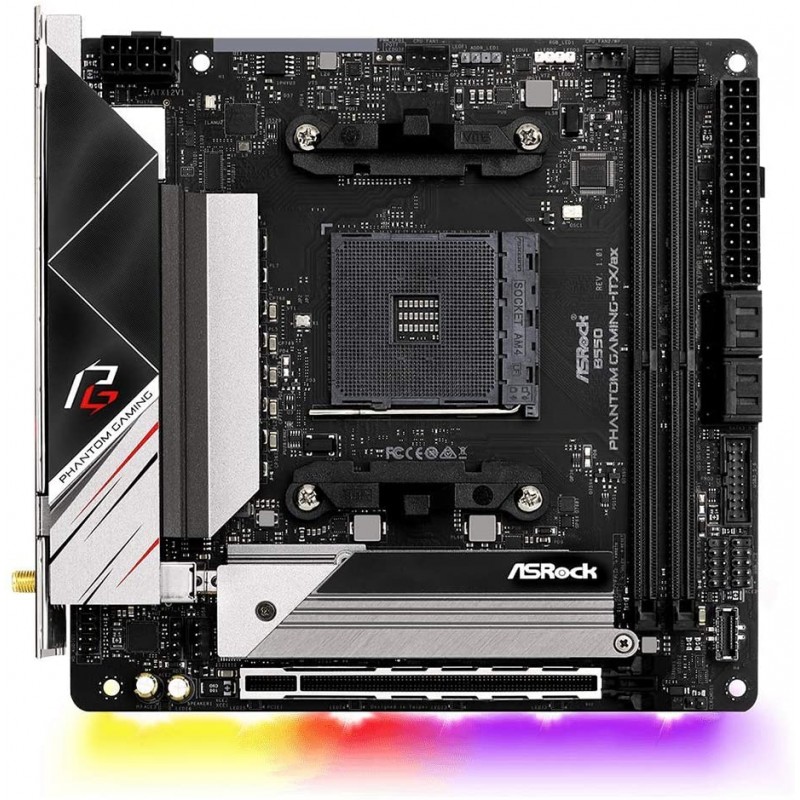

ASRock B550 Phantom Gaming-ITX / AX (AM4)

€166.89

without tax €166.89

Reference: B550 PHANTOM GAMING-ITX/AX

EAN: 4710483931611

Condition: New product

Do not wait any longer to enjoy your ASRock B550 Phantom Gaming-ITX / AX (AM4) at the best price in your store GreaTecno Read more...

Share with your friends

Buy it now and receive it between Fri 5 and Thu 11 with GLS o Correos Express España €16.45

Plinth	AM4
No. of CPU max.	one
Operating system	Medium	Windows 10 ready
Chipset	AMD B550
Grooves	PCIe x 16	two
	PCIe x 1	two
BIOS	256 MBit AMI UEFI BIOS
Form factor	ATX
Use	Pc
Power supply	EPS12v 2.9 x (24 + 8 + 4-pin)
Memory	maximum	128 GB
	No. of sockets	4x DDR4
	Supported memory type	SDRAM-DDR4
	Supported standards	DDR4-4533 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC ) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3200/2933/2667/2400/2133 MHz
	Channels	two
	Maximum memory slots	8
	Supports ECC	Yes
	Memory controller in CPU	Yes
	Maximum data density	8192 Mbit
Connections (external)	Mouse / keyboard combo (PS / 2)	one
	USB 3.0	6
	The name USB 3.2 Gen 1 corresponds to the earlier names USB 3.1 Gen 1 or USB 3.0.
	HDMI	one
	Microphone	one
	Online entry	one
	Check out online	one
	RJ-45	one
	Bluetooth	Yes
	Wlan	Yes
Connections (internal)	SATA	6
	M.2	two
	M.2-Modul Key	M
	M. 2 WI-FI	one
	M.2 interface	PCIe
	Length M.2	42 - 110 mm
	RGB LED	two
	Addressable RGB LED header	two
	4-pin PWM fan	6
Connections (optional)	USB 3.0	two
	USB 2.0	4
	Serial	one
	TPM	Yes
RGB Standard	RGB LED
SATA controller	AMD B550
directly usable RAID level	0, 1, 10
USB controller	AMD B550
Integrated graphics	The graphics connectors on the motherboard can only be used when using a CPU with an integrated graphics chip.
Sound	Realtek ALC1220
LAN	Dragon RTL8111H GbE LAN
Characteristics	CrossFireX
