Hikvision DS-D40W-2F/HUB SPARE: 3-in-1 Replacement HUB Board with Integrated Power Supply for 600x337.5mm LED Display Cabinets 3

Hikvision DS-D40W-2F/HUB Spare 3-in-1 HUB (317006690)

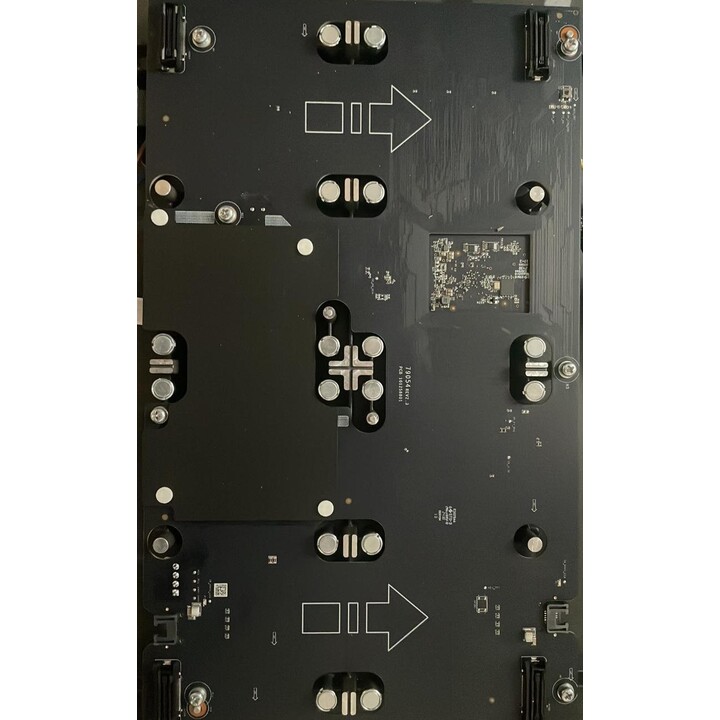

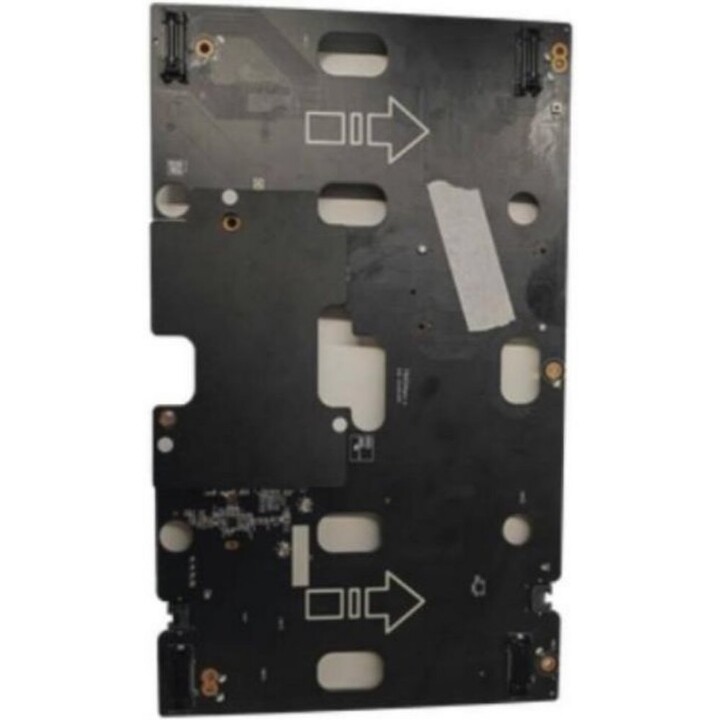

The Hikvision DS-D40W-2F/HUB (317006690) is a critical replacement component for the 5th Generation Hikvision indoor DVLED cabinet series (600 x 337.5mm). This "3-in-1" hub board is a highly integrated module that typically consolidates the functions of the HUB card, receiving card, and power interface into a single assembly. Designed for front-maintenance systems, it ensures stable signal distribution and power management across the LED lamp boards (modules). It is fully compatible with various imaging technologies within the DS-D40 series, including COB, HOB, and SMD, providing a versatile and streamlined repair solution for professional video wall installations.

Technical Specifications

* **Product Type:** Spare 3-in-1 HUB Board.

* **Compatibility:** Hikvision DS-D40W-2F Series Cabinet Structures.

* **Module Support:** Compatible with COB (BW family), HOB (AW family), and SMD (CW family) lamp boards.

* **Part Number (SAP):** 317006690.

* **EAN:** 6936422139698.

* **Maintenance:** Supports full front-side access/disassembly.

Functional Role

* **Signal Integration:** Distributes data signals to individual LED modules while maintaining high-speed communication with the video controller.

* **Integrated Power Supply:** Managing power distribution to the lamp boards (typically 5.5 VDC, 1A depending on specific lamp board configuration).

* **System Stability:** Part of a self-developed control system designed for high safety and reliability in 24/7 commercial display environments.

Physical and Environmental

* **Cabinet Size Compatibility:** 600 mm (W) × 337.5 mm (H).

* **Protection Grade:** IP00 (Internal use only).

* **Operating Temperature:** -10 °C to 40 °C.

* **Package Weight:** Approximately 700 g to 1.44 kg (depending on bulk packaging).

* **Package Dimensions:** ~420 x 250 x 67 mm.
