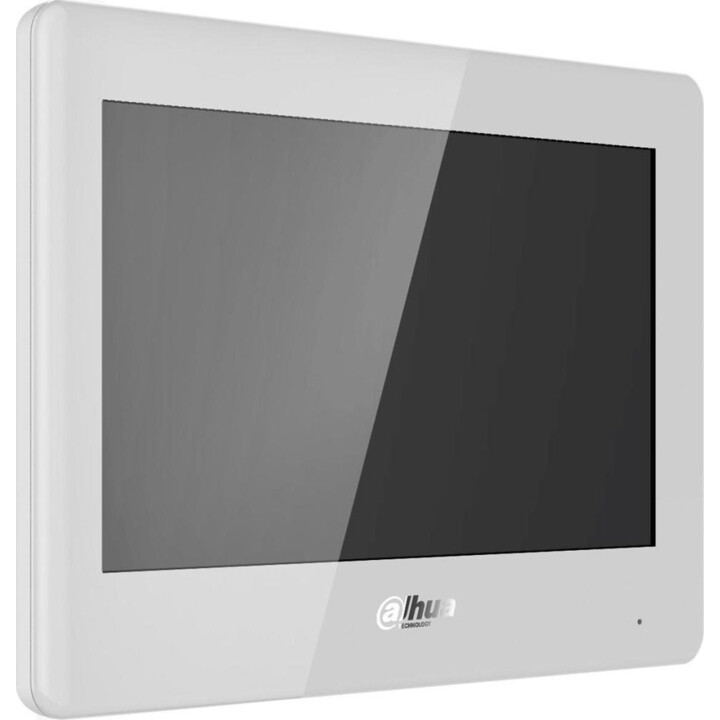

DAHUA VTH5421HW-W Video Door Phone Monitor

Display: 7" capacitive TFT touch screen with 1024 600 resolution, 2.5D glass.

Operating system: Embedded Linux with integrated processor and ONVIF and SDK support.

Video and cameras: IP door station monitor (VTO) and Dahua IPC cameras; H.265/H.264 decoding.

Audio: 2-way audio with G.711a/u and PCM compression, built-in speaker and echo suppression.

Alarms and I/O: 6 alarm inputs and 1 output, plus 1 12V/200mA power output; any input can function as a buzzer.

Wired network: 10/100 Mbps Ethernet port for direct IP connection to local network.

Built-in Wi-Fi: IEEE 802.11b/g/n (2.4 GHz) module with WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.

Power: 12 VDC 1 A or IEEE 802.3af PoE standard (36-57 V), power consumption °2 W in standby and °6 W in operation.

Storage: microSD card slot up to 64GB for video recording and visitor messages.

Usage functions: configurable Do Not Disturb (DND) mode, receiving text messages from the management centre, internal and group calls, camera monitoring.

Extension capacity: up to 9 monitors in villa and 4 in flat, plus 1 main monitor and 2 extensions in Wi-Fi mode, depending on topology.

Construction: PC+ABS housing in white or black, surface mounted, dimensions approx. 189 130 26.9 mm, net weight 0.35 kg.

Environment: operating temperature -10 °C to +55 °C, humidity 10%-95% non-condensing; CE and FCC certifications.
