Power Supply Msi Mag A1000gls Pcie5, psu, 1000w, 80 Plus Gold, modular, 135mm, active Pfc, pci-e 5.0 (16 Pin)x1, pci-e (6+2 Pin)
Power Supply Msi Mag A1000gls Pcie5, psu, 1000w, 80 Plus Gold, modular, 135mm, active Pfc, pci-e 5.0 (16 Pin)x1, pci-e (6+2 Pin)

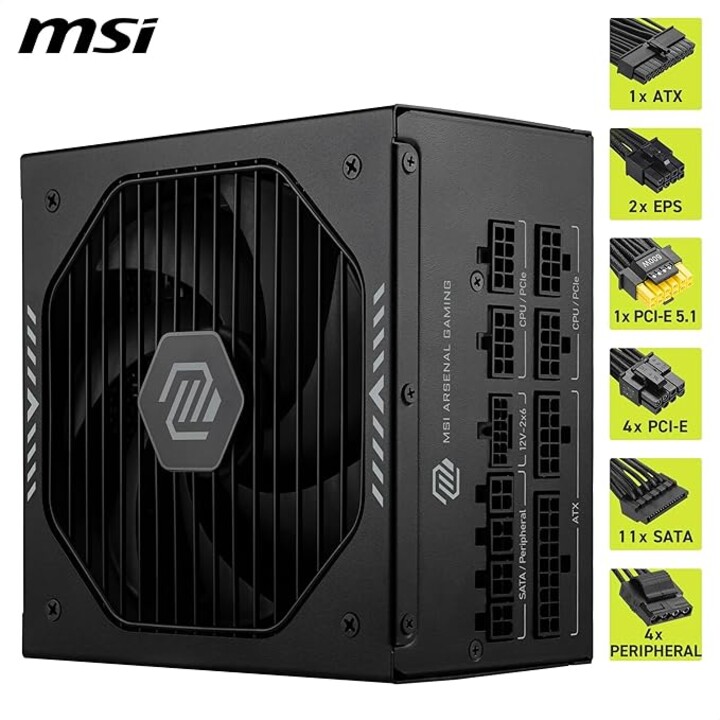

The MSI MAG A1000GL PCIE5 is a high-performance power supply designed for demanding gaming and workstation builds. With 1000W continuous output and 80+ Gold certification, it delivers up to 90% efficiency under typical loads, reducing heat and energy waste. The fully modular design allows you to connect only the cables you need, simplifying cable management and improving airflow inside your case.
Equipped with a 135mm fluid dynamic bearing fan, the PSU operates quietly even under heavy load. Active PFC ensures stable power delivery across a wide input voltage range (100-240V). The unit includes a native PCIe 5.0 16-pin (12VHPWR) connector, providing up to 600W to compatible graphics cards, plus multiple PCIe 6+2 pin connectors for legacy GPUs. Built with high-quality Japanese capacitors, it offers reliable performance and long-term durability.
| Brand | MSI |
| Model | MAG A1000GL PCIE5 |
| Part Number | 306-7ZP1B21-CE0 |
| Wattage | 1000 W |
| Efficiency Rating | 80+ Gold |
| Form Factor | ATX |
| Modular | Fully modular |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| PFC | Active PFC |
| Input Voltage | 100-240 VAC |
| PCIe 5.0 Connector | 1 x 16-pin (12VHPWR) |
| PCIe 6+2 Pin Connectors | 4 |
| EPS 4+4 Pin Connectors | 2 |
| SATA Connectors | 8 |
| Molex Connectors | 4 |
| Protection Features | OVP, OCP, OPP, SCP, OTP |
| Color | Gold |
| Dimensions | 150 x 140 x 86 mm |
| Weight | 2.5 kg |
-
Power1000 W
-
Power rangeDe 501 a 1.000 W
