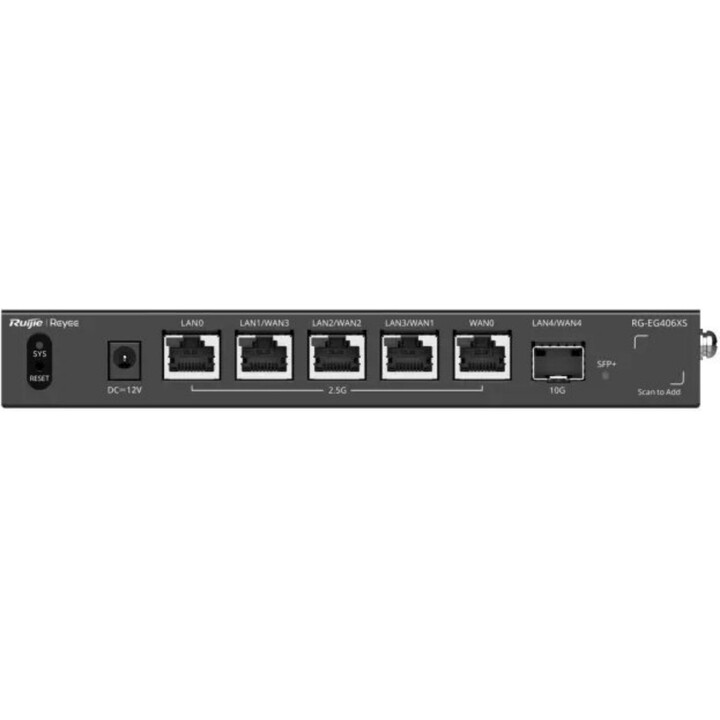

Reyee RG-EG406XS-P 6-Port Multi-Gigabit SFP+ Enterprise Gateway Router 4-Port PoE+ Unit

Reyee RG-EG406XS-P

The Reyee RG-EG406XS-P is a high-performance multi-gigabit enterprise gateway designed for small to medium-sized business networks. This hardware unit features a 6-port configuration, including two 10Gbps SFP+ ports for high-speed fiber uplinks and four 2.5Gbps RJ-45 ports. The structural architecture provides integrated Power over Ethernet (PoE+) support on all four copper ports with a total power budget of 60W, facilitating the direct power synchronization of access points and IP cameras. The system utilizes a fanless chassis design to ensure silent operation and increased reliability. Technical interfaces support advanced network management features, including multi-WAN load balancing, captive portal authentication, and cloud-based configuration. The unit is optimized for data throughput in demanding environments, offering hardware-level acceleration for VPN and firewall processing.

Technical Specifications

- Model: RG-EG406XS-P

- Brand: Reyee

- EAN: 6976915005116

- Part Number: 16300

- Product Year: 2026

- Product Type: Enterprise Gateway Router

- Network Interfaces: 2 x 10Gbps SFP+, 4 x 2.5Gbps RJ-45

- PoE Standard: IEEE 802.3at / 802.3af (PoE+)

- PoE Budget: 60 W

- Throughput: 6 Gbps (L3)

- RAM: 1 GB

- Flash Memory: 256 MB

- Maximum Concurrent Clients: 300

- Layer Features: Multi-WAN, Load Balancing, Policy Routing, Firewall, VPN (IPsec/L2TP/PPTP/OpenVPN)

- Cooling System: Fanless Passive Cooling

- Power Supply: External DC 54V/1.2A

- Installation: Desktop / Wall Mount

- Dimensions: 190 mm x 100 mm x 28 mm

- Color: Black
