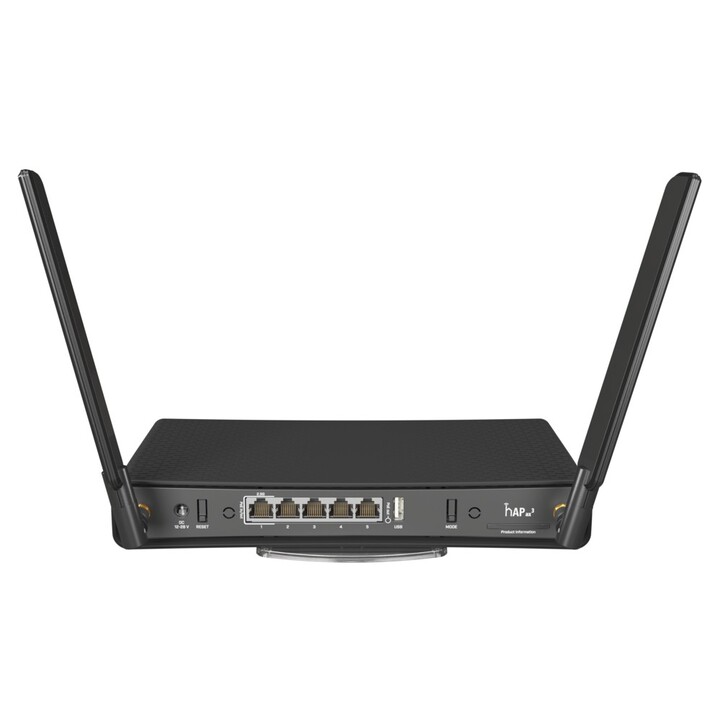

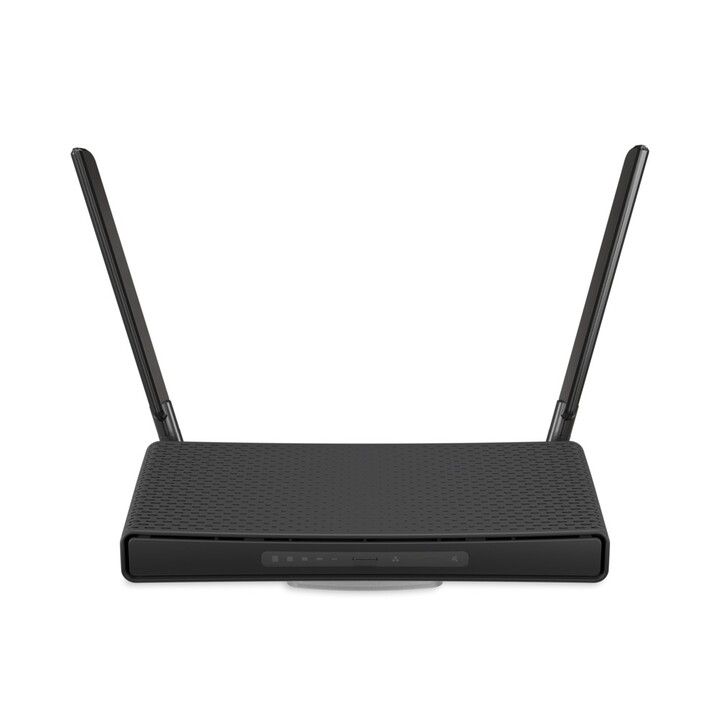

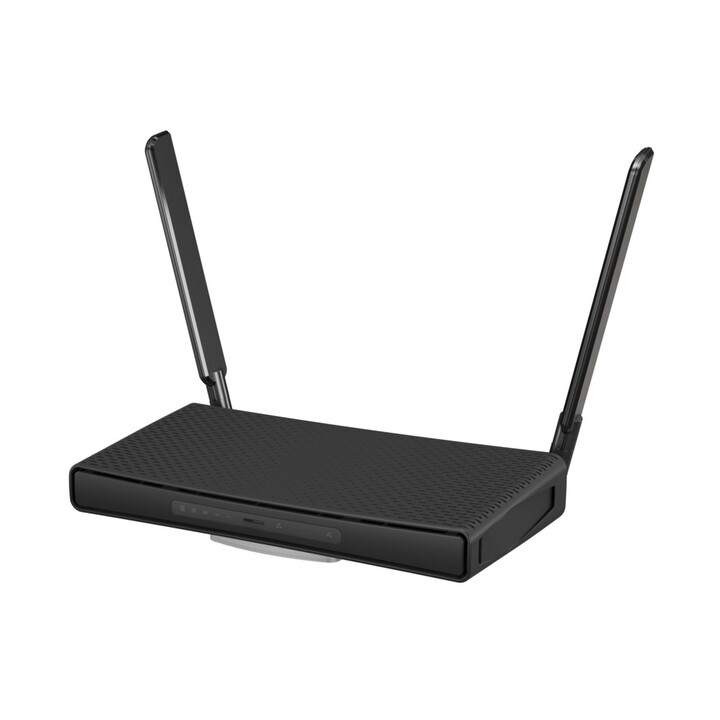

The MikroTik hAP Ax3 is a powerful dual-band Wi-Fi 6 router designed for high-density environments. With a 2.5 Gigabit Ethernet WAN port and four Gigabit LAN ports, it provides ample wired connectivity for demanding applications. The router supports 2.4 GHz and 5 GHz bands with 2x2 MIMO, delivering combined wireless speeds of up to 1.8 Gbps. Its compact design includes four external RP-SMA antennas for optimal signal coverage.
Equipped with a quad-core ARM CPU and 1 GB RAM, the hAP Ax3 runs RouterOS, offering advanced routing, firewall, and VPN features. The 2.5GbE port can be used as WAN or LAN, and PoE out on port 5 allows powering external devices. USB 2.0 port enables storage sharing or 4G/LTE modem connectivity. Ideal for small businesses, power users, or as a home gateway.
| Product Name | MikroTik hAP Ax3 |
| Model | C53UIG+5HPAXD2HPAXD |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz (2x2), 5 GHz (2x2) |
| Max Data Rate | 2.4 GHz: 574 Mbps, 5 GHz: 1.2 Gbps |
| Ethernet Ports | 4x RJ45 10/100/1000 Mbps, 1x RJ45 2.5 Gbps |
| Antenna Connectors | 4x RP-SMA (external antennas included) |
| CPU | Quad-core ARM 1.8 GHz |
| RAM | 1 GB DDR4 |
| Storage | 128 MB NAND |
| PoE Out | Yes, on port 5 (2.5GbE) |
| USB | 1x USB 2.0 |
| Power Supply | 24V DC jack (PoE in supported) |
| Operating System | RouterOS (Level 4 license) |
| Brand | MikroTik |
|---|---|
| Country | Latvia |
| Address of origin | Aizkraukles iela 23, Riga, LV-1006, Latvia |
| EU responsible person | Mikrotik |
| Address | Brivibas gatve 214i, Riga, Latvia, LV-1039 |
| [email protected] | |
| Phone | +371-6-7317700 |
