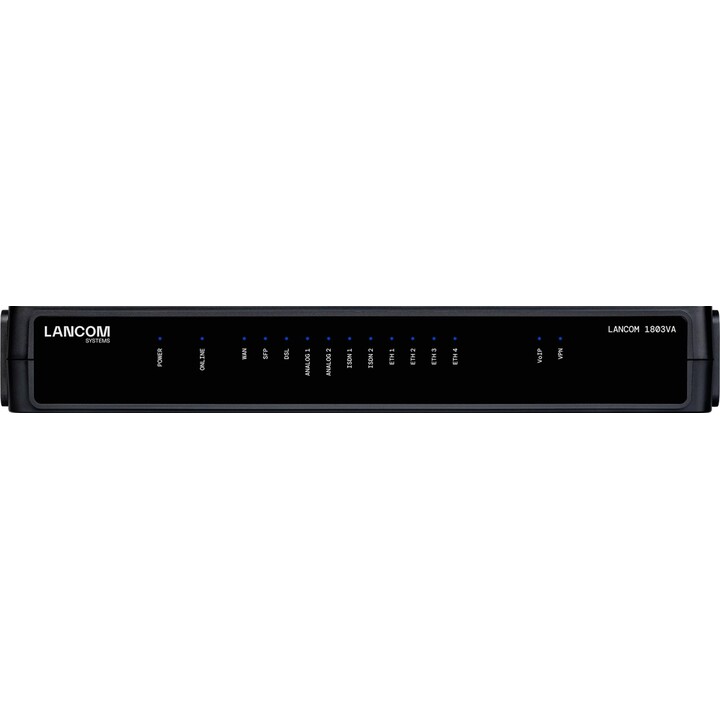

LANCOM 1803VA (62153): VDSL Supervectoring SD WAN VoIP Gateway, 5x Gigabit Ethernet, ISDN/Analog Support

LANCOM 1803VA (62153, EAN 4044144621536) is a compact SD-WAN VoIP gateway with integrated VDSL Supervectoring modem (up to 300 Mbps) for resilient networks of small/medium businesses via DSL and fiber optic.

Technical Features

• 5x Gigabit Ethernet ports (1 combo TP/SFP WAN), supports up to 25 IPsec VPN tunnels, SD-WAN with dynamic path selection and multi-WAN load balancing, LCOS 10.80 OS.

• 2x internal ISDN BRI NT ports, 2x analog FXS ports, SIP trunking with G.711/G.722 codecs.

Connectivity and Features

• Compatible with VDSL/ADSL2+, Ethernet over GRE/L2TPv3, 4096 VLANs, IGMP/MLD snooping, USB 2.0 host, serial console (USB-C).

• Zero-touch deployment via LANCOM Management Cloud, advanced QoS for voice/video.

Design and Efficiency

• Wall-mountable (293x44x190 mm, 740g), silent fan, maximum power consumption 27W, operating temperature between 0 and 40°C.
