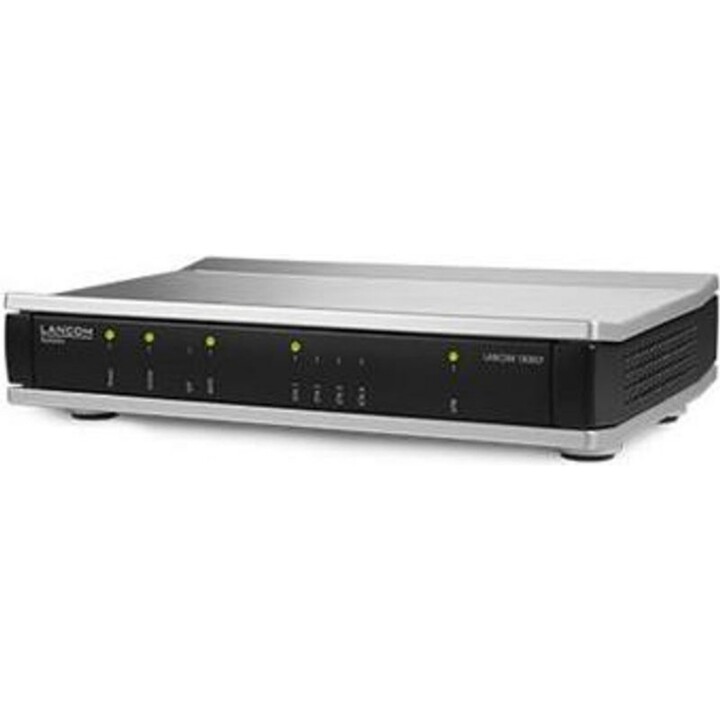

LANCOM 1800EF: SD-WAN VPN Router, Gigabit Ethernet/SFP Fiber WAN, 4x Gigabit LAN, 5 IPSec VPN (25 optional), 210x45x140mm

LANCOM 1800EF (62138, EAN 4044144621383) is a compact SD-WAN VPN router optimized for high-speed fiber optic WAN connections (FTTH/GPON via SFP) and Gigabit Ethernet in small branch offices.

Performance specifications

• 4 Gigabit Ethernet switching ports (up to 3 configurable as WAN), supports 5 IPsec VPN tunnels (expandable to 25), dynamic load balancing, up to 16 ARF virtual networks, LCOS 10.80 OS.

• IEEE 802.3az energy-efficient Ethernet, PIM/IGMP/MLD multicast routing.

Connectivity and features

• 1x SFP/mini-GBIC slot for fiber modules, USB 2.0 host, USB-C console, VLAN support (4096 IDs), EoGRE/L2TPv3 tunneling.

• Zero-touch deployment via LANCOM Management Cloud.

Design and efficiency

• Wall mountable (210x45x140 mm, 450 g), 12 V DC input (15 W max), operating temperature 0-40 °C, silent fan.
