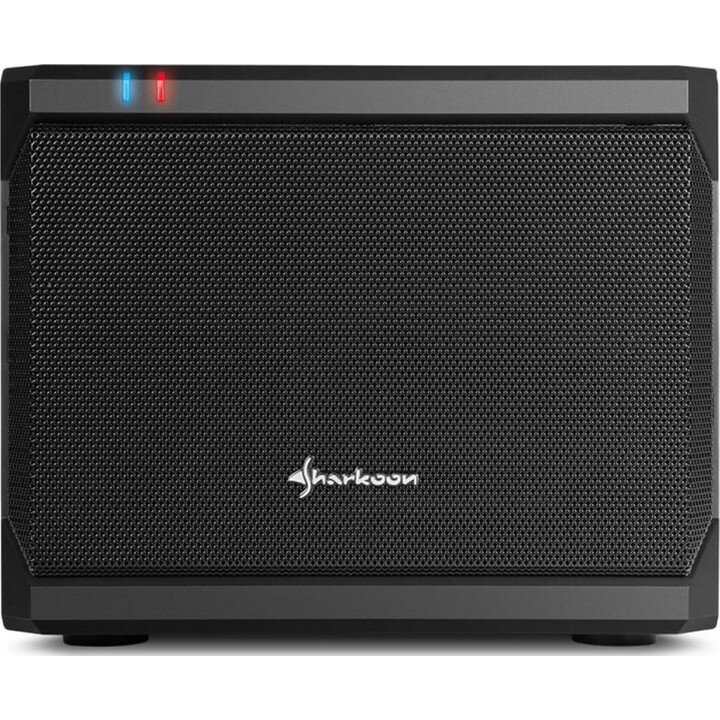

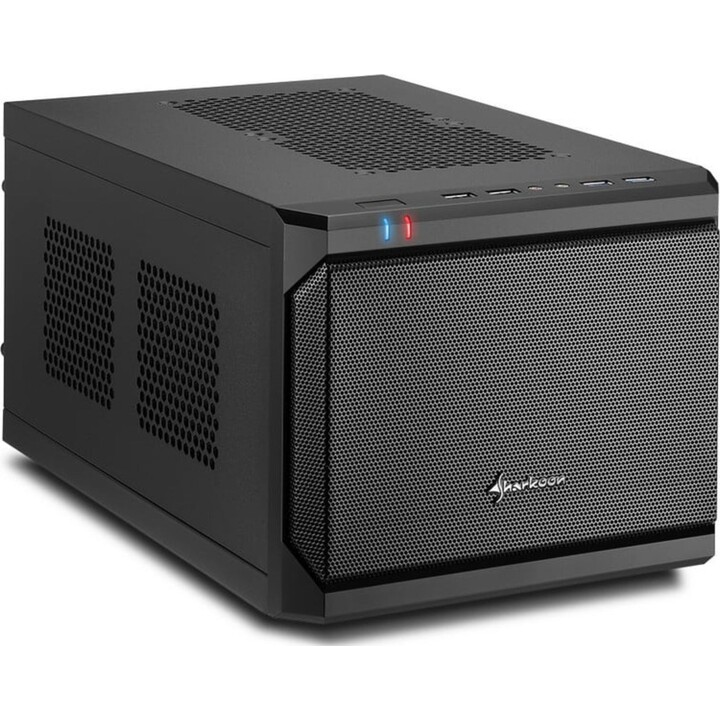

Sharkoon QB One Mini-ITX USB 3.0 PC Tower Black

The all-black QB ONE Mini-ITX PC case offers maximum flexibility in the smallest possible footprint. Thanks to its sophisticated design, this high-quality case provides more than enough space for the necessary components.

Measuring just 36.8 x 22.5 x 18.0 cm (L x W x H), its compact size makes it ideal for transport. The elegant design makes it perfect for use in a living room, for example, as a powerful gaming PC. Thanks to the clever arrangement of controls and ports, the case can be used in either a horizontal or vertical orientation.

In addition, conventional ATX power supplies can also be installed, where the use of SFX power supplies offers even more space.

Characteristics:

• Ideal ventilation options. A quiet 120mm fan is pre-installed at the top of the case, and an additional 120mm fan can be mounted if needed. For optional system cooling, the top also offers ample space for a 240mm radiator. All side panels feature generous ventilation openings and come equipped with dust filters. A clear advantage for integrated graphics cards is the excellent airflow provided by the side vents. For further optimization of ventilation, an 80mm fan can be mounted at the rear.
• Modern connectivity. On the front, two USB 3.0 ports and two USB 2.0 ports offer easy access for connecting peripheral devices. Additionally, the QB ONE has two audio ports for convenient headphone use.
• Versatile mounting options. The QB ONE supports the installation of a powerful dual-slot graphics card, with a maximum length of up to 31.5 cm. In addition, up to two 3.5" hard drives or two 2.5" HDDs/SSDs can be installed. An additional 2.5" HDD/SSD can be installed at the rear of the case in place of an 80 mm fan. CPU coolers with a maximum height of up to 15 cm can also be used. For easy cooler installation, the case features a dedicated CPU cooler opening. Convenient thumbscrews simplify opening and closing the case.

Specs:

• General
  • Form factor: Mini-ITX
  • Expansion slots: 2
  • Interior lacquering: Yes
  • Side panel: Metal
• Weight & Dimensions
  • Weight: 3.0 kg
  • Dimensions (L x W x H): 36.8 x 22.5 x 18.0 cm
• I/O
  • USB 3.0 (front): 2
  • USB 2.0 (front): 2
  • Audio (front): Yes
• Bays
  • 3.5" or 2.5": 2
  • 2.5": 1* Install a 2.5" disk drive or an 80 mm fan on the rear panel
• Fan settings
  • Rear panel: 1x 80 mm fan (optional)**
  • Top panel: 1x 120mm fan (pre-installed) or 1x 240mm radiator (optional)
• Compatibility
  • Motherboard: Mini-ITX
  • Max. length of graphics cards: 31.5 cm
  • Max. CPU cooler height: 15.0 cm
  • Max. power supply length: 14.5 cm
  • Max. radiator height incl. fan: 5.0 cm
  • Power supply: SFX/ATX (not compatible with ATX modular power supplies)
