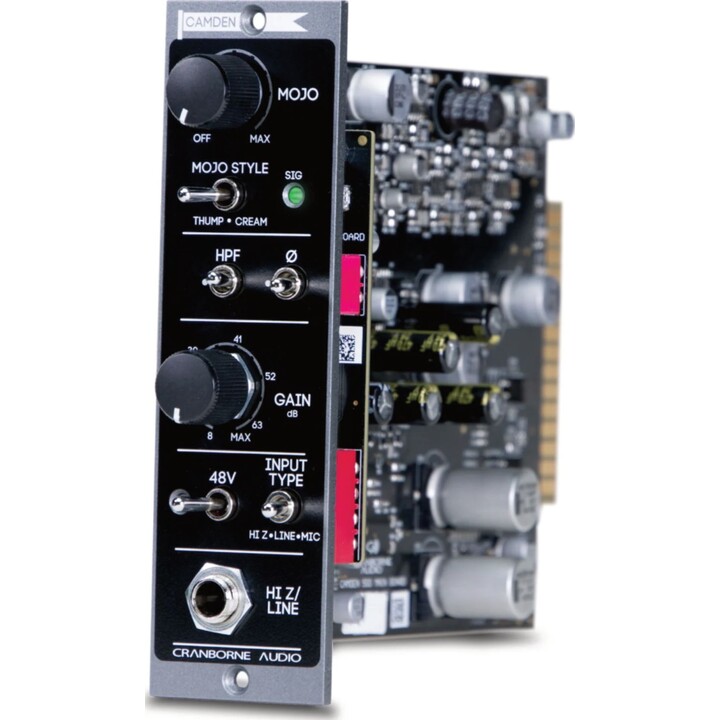

Cranborne Audio Camden 500 Microphone Preamplifier Module
Cranborne Audio Camden 500 Microphone Preamplifier Module
The Cranborne Audio Camden 500 is a 500-series microphone preamplifier module that combines pristine transparency with variable harmonic saturation. Its THRU control allows you to dial in anything from clean, high-headroom amplification to warm, tube-like distortion, making it versatile for both tracking and mixing. With a gain range of 80dB and ultra-low noise floor, it handles everything from quiet acoustic sources to loud drums with ease.
Built with a discrete Class-A topology, the Camden 500 delivers a frequency response of 10Hz to 70kHz (±0.5dB) and includes a 3-band EQ with a sweepable midrange. The high-pass filter at 80Hz removes low-end rumble, while the +48V phantom power and polarity reverse switch provide essential functionality for professional recording. Its robust construction and high-quality components ensure reliable performance in any studio environment.
| Type | 500-series microphone preamplifier |
| Gain Range | 80dB (with 20dB pad) |
| Frequency Response | 10Hz - 70kHz (±0.5dB) |
| THD+N | <0.001% (clean mode), up to 5% (saturation mode) |
| Noise Floor | -129dBu (A-weighted) |
| Maximum Input Level | +22dBu |
| Maximum Output Level | +26dBu |
| EQ | Low: ±12dB @ 60Hz; Mid: ±12dB (500Hz-5kHz sweepable); High: ±12dB @ 12kHz |
| High-Pass Filter | 80Hz, 12dB/octave |
| Phantom Power | +48V |
| Polarity Reverse | Yes |
| Pad | -20dB |
| Power Requirements | ±16V DC (from 500-series rack) |
| Dimensions | 1.5" x 5.25" x 6.5" (standard 500-series) |
| Weight | 1.2 lbs |
-
Brand
-
ReferenceCAMDENEBAYPRO
-
In stock4 Items
-
ConditionNew
-
EAN135060619260009
-
MPNCA-C50010
| Brand | Cranborne Audio |
|---|---|
| Country | United Kingdom |
| Address of origin | Cranborne Audio Ltd., London E10, United Kingdom |
