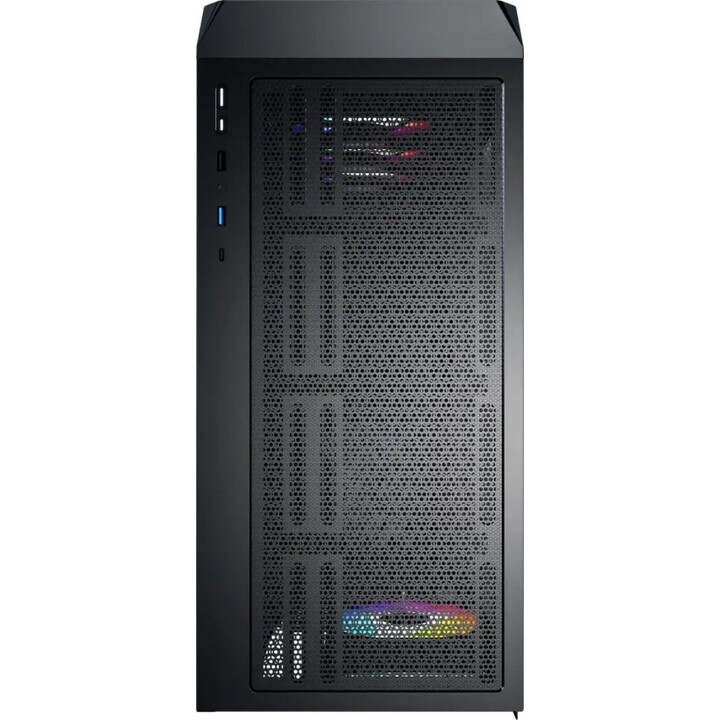

MONTECH X5 (B) Premium Compact mATX Gaming Case Dual Chamber Black Edition

Montech X5 High-Airflow Mid Tower Chassis - Black (4710562748376)

The Montech X5 is a professional mid-tower computer chassis designed with a priority on high-volume thermal performance and high-visibility hardware presentation. The exterior is characterized by a high-permeability mesh front panel that facilitates maximum air intake, crucial for maintaining low operating temperatures for high-performance internal components. This chassis is equipped with a unique swivel-door tempered glass side panel, which provides both a premium aesthetic and tool-less access to the system’s interior for maintenance or hardware upgrades. The X5 comes pre-configured with a comprehensive cooling array, featuring six pre-installed 120mm Fixed RGB (FRGB) fans: three at the front for intake, two at the top for exhaust, and one at the rear for exhaust. This push-pull configuration ensures immediate, balanced airflow out of the box. The internal architecture supports ATX, Micro-ATX, and Mini-ITX motherboards, incorporating a dual-chamber layout with a full-length power supply shroud to streamline cable management and isolate heat zones.

Technical Specifications

* Model: X5 Black

* Part Number: 4710562748376

* Case Type: Mid Tower

* Material: Steel, Tempered Glass, Plastic

* Motherboard Compatibility: ATX, Micro-ATX, Mini-ITX

* Drive Bays: 2x 3.5" (compatible with 2.5") + 2x 2.5"

* Expansion Slots: 7

* Cooling System (Front): 3x 120mm FRGB fans (included)

* Cooling System (Rear): 1x 120mm FRGB fan (included)

* Cooling System (Top): 2x 120mm FRGB fans (included)

* Radiator Support: Front (up to 360mm / 240mm)

* Front I/O Ports: 1x USB 3.0, 2x USB 2.0, HD Audio, Mic, LED Control Button

* Max GPU Length: 305 mm

* Max CPU Cooler Height: 165 mm

* Dimensions: 370 x 190 x 436 mm

Key Features

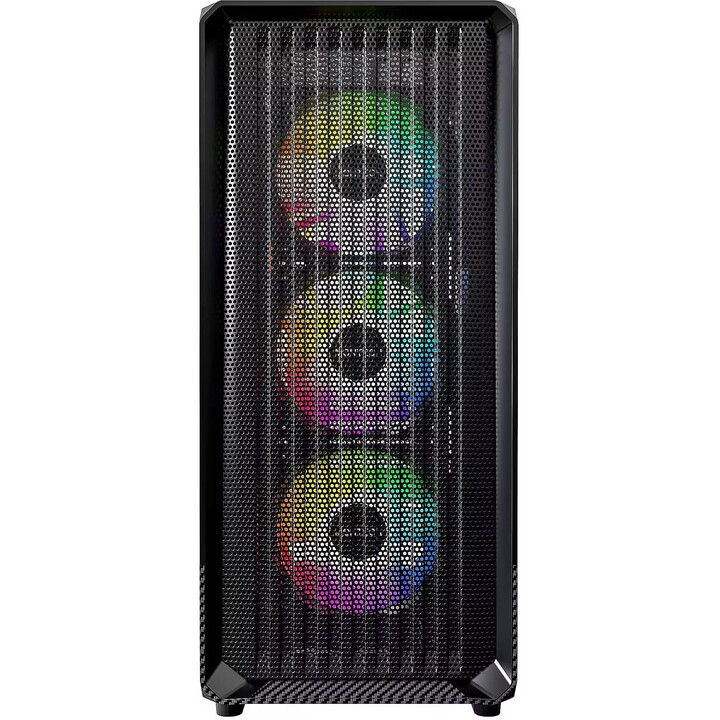

* High-Flow Mesh Front Intake: Engineered with an expansive mesh surface area that ensures unrestricted air volume enters the chassis to cool critical hardware under heavy workloads.

* Six-Fan Integrated Cooling Array: Provides a complete thermal solution pre-installed from the factory, utilizing six 120mm fans to achieve optimal pressure and exhaust balance.

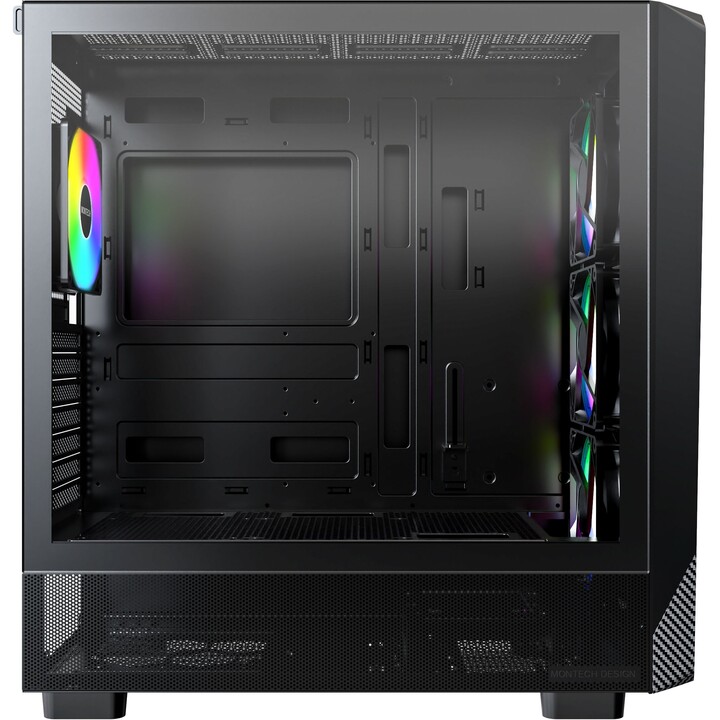

* Swivel-Door Tempered Glass Design: Features a side panel mounted on a hinged mechanism with a magnetic closure, allowing for quick, professional access to components without the use of screws.

* Dual-Chamber Thermal Isolation: Includes a dedicated compartment for the power supply unit and storage drives, preventing cumulative heat buildup from affecting the motherboard and graphics card.

* Dynamic FRGB Lighting System: Equipped with auto-cycling RGB fans that provide a vibrant, uniform lighting effect across the entire chassis, controllable via a dedicated physical toggle on the I/O panel.
