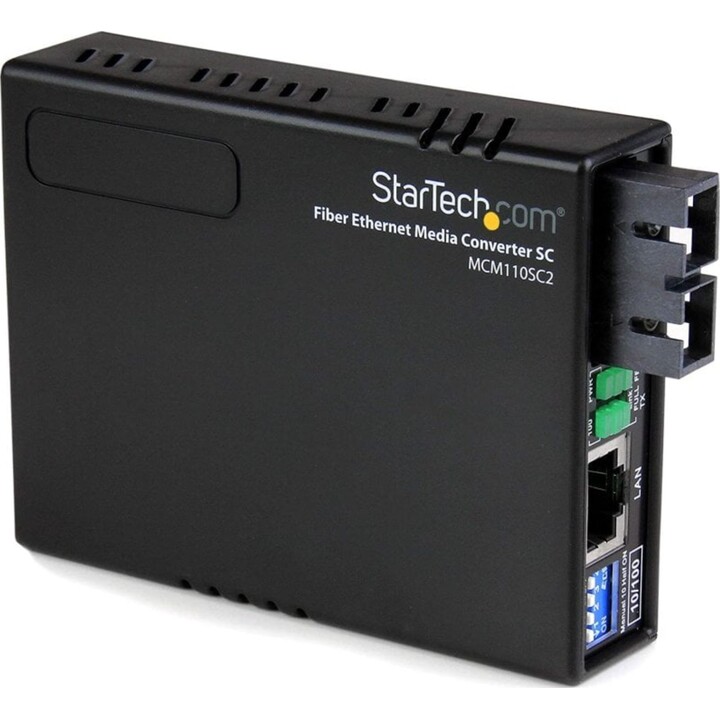

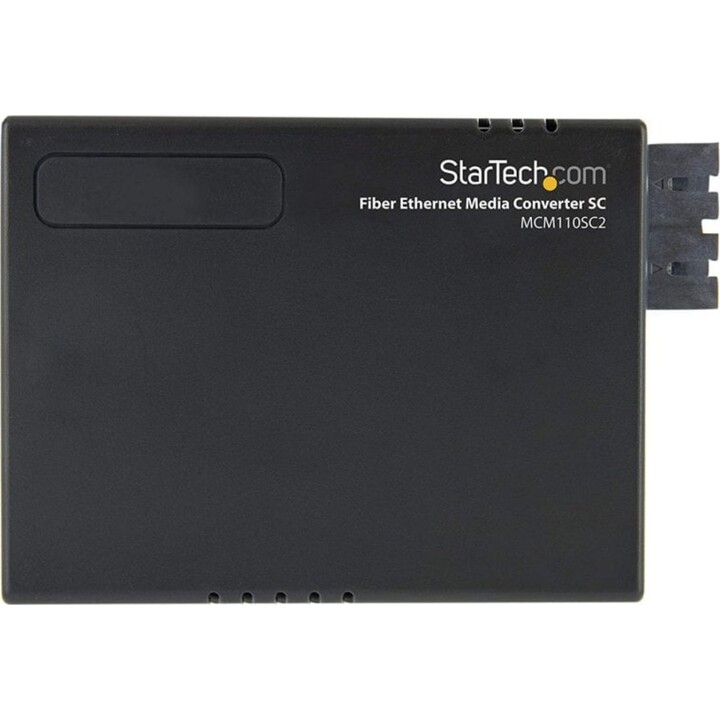

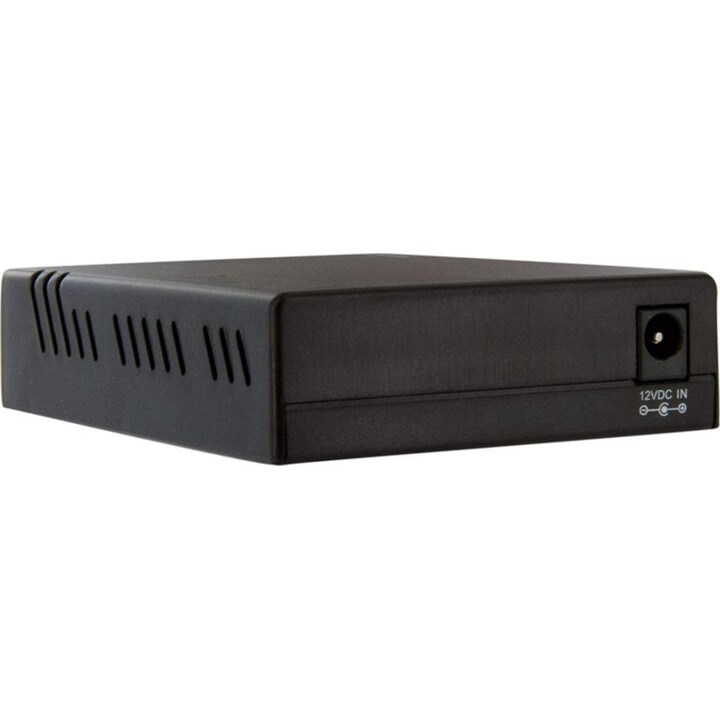

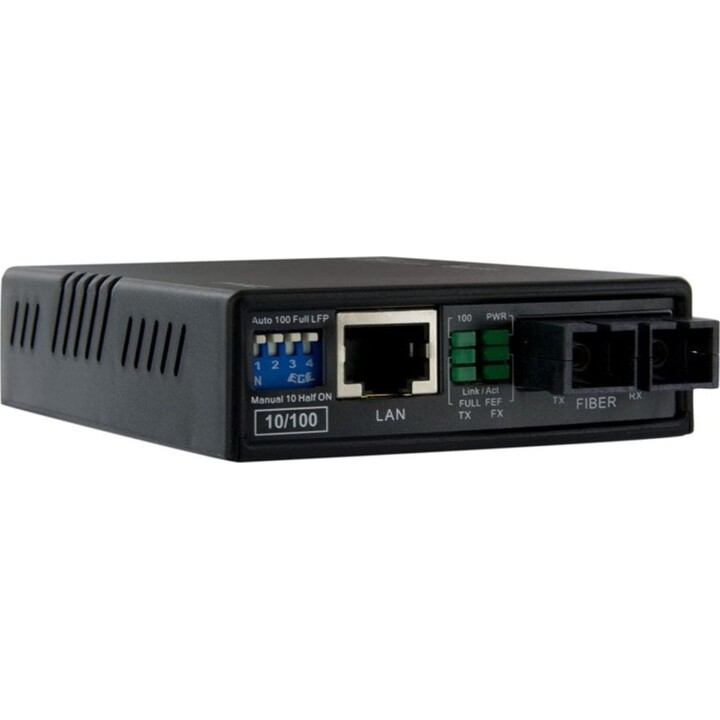

Startech Gigabit Ethernet to SC Fiber Media Converter

Convert an RJ-45 Gigabit Ethernet network connection to SC MultiMode fiber.

The MCM110SC2EU 10/100 Ethernet to Multimode Fiber Media Converter (SC, 2 km) enables the creation of an efficient and cost-effective Ethernet-fiber link that converts 10Base-T or 100Base-Tx Ethernet signals into 100Base-Fx optical signals, and vice versa, to extend an Ethernet network connection over a Multimode Fiber backbone terminated in SC.

The converter supports a maximum multimode fiber optic cable length of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks in remote locations using SC-terminated multimode fiber, ensuring maximum network performance and scalability. This GbE Ethernet to Fiber converter is compatible with most 3COM, Cisco, Lucent, and Nortel networks and complies with IEEE 802.3 standards.

Characteristics

• It allows for improved scalability by increasing the distances between network points by up to 2 km (Multimode)
• Compact and lightweight cabinet design that is easy to assemble in all types of places and requires virtually no configuration.
• It offers greater bandwidth and allows for a higher data flow rate by eliminating network bottlenecks and congestion.

Specs

• Connection
  • Maximum data transfer rate: 100 Mbit/s
  • Input converter interface: 100BASE-FX,100Base-TX,10Base-T
  • Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
  • Ethernet LAN, data transfer rate: 10,100 Mbit/s
  • Jumbo Frames, support: Yes
  • Jumbo plots: 9000
  • Flow control support: Yes
  • Auto MDI / MDI-X: Yes
  • Self-negotiation: If
  • Duplex system: Full, Semi (duplex)

• Ports and Interfaces
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) number of ports: 1
  • Fibre Channel ports: 1
  • Fiber optic connector: SC
  • DC input socket: Yes

• Performance
  • Maximum transfer distance: 2000 m
  • Wavelength: 1310 nm
  • Wavelength division multiplexing (WDM): No
  • Fiber mode structure: Multimode
  • Mean time between failures: 65000 h

• Design
  • Internal: No
  • LED Indicators: Activity, Link, Power
  • Product color: Black
  • Housing material: Plastic
  • Certification: CE, FCC

• Energy control
  • Input voltage: 230 V
  • Output voltage: 12 V
  • Output current: 0.2 A
  • Power over Ethernet (PoE): No
  • Plug type: Type M

• Weight and dimensions
  • Width: 75 mm
  • Depth: 95 mm
  • Height: 20 mm
  • Weight: 90.5 g

• Environmental conditions
  • Operating temperature range: 0 - 50°C
  • Storage temperature range: -10 - 70 °C
  • Relative humidity range for operation: 10 - 90%

• Packaging
  • Package width: 145 mm
  • Package depth: 175 mm
  • Package height: 65 mm
  • Package weight: 300 g

• Package contents
  • AC adapter included: Yes
  • User manual: Yes

• Technical details
  • Sustainability certifications: RoHS
