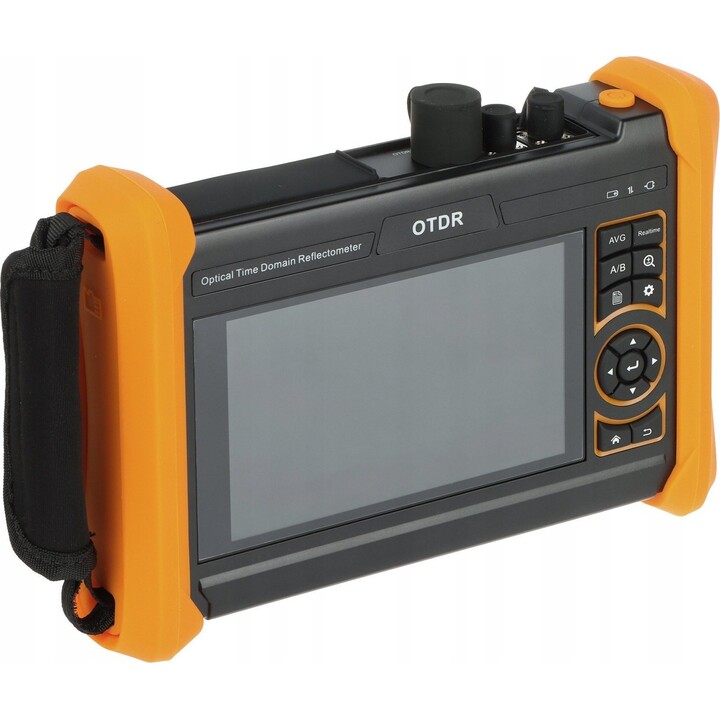

The CS-R6E-50H is a high-performance optical time-domain reflectometer (OTDR) designed for precise fiber optic network characterization and fault location. With a dynamic range of 50dB and dual-wavelength operation at 1310nm and 1550nm, it provides accurate measurements over long distances up to 200km. The device features an ultra-short event dead zone of 0.8m, enabling detection of closely spaced events.

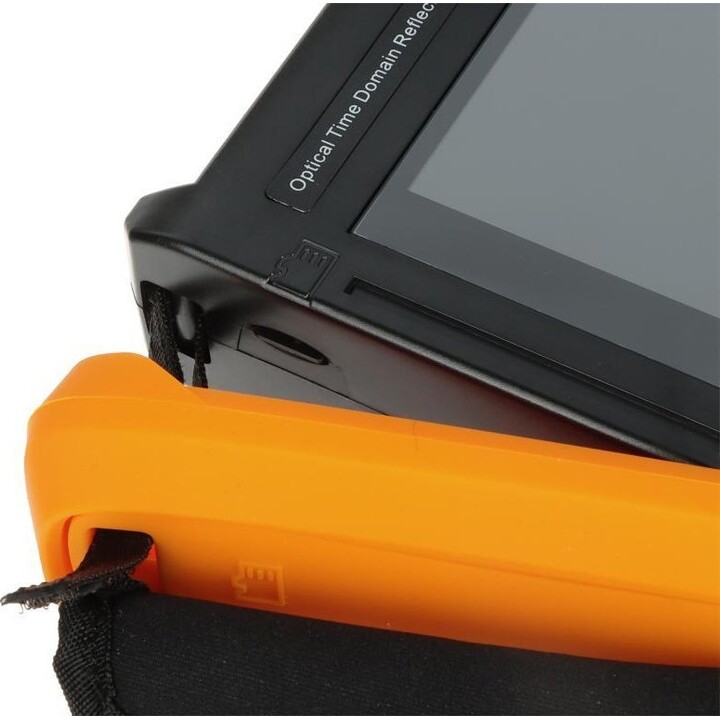

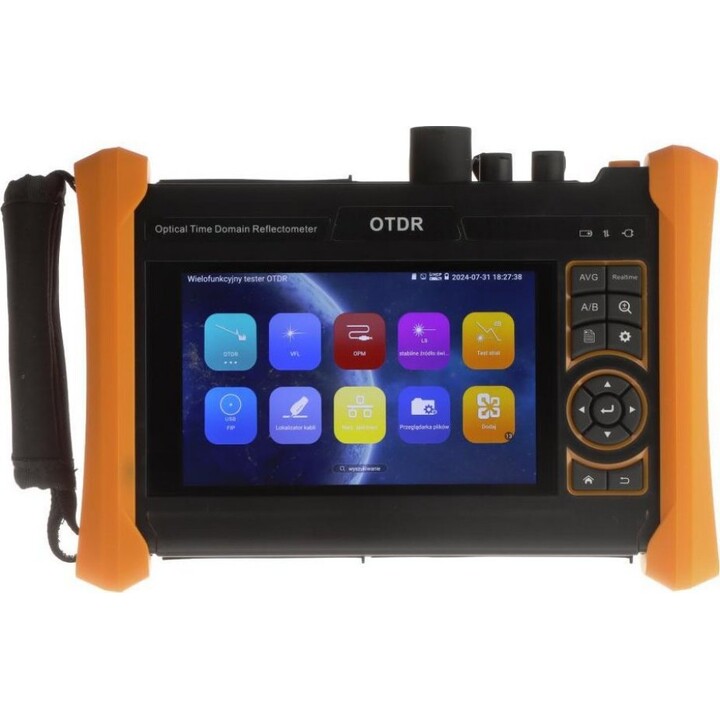

Equipped with a 7-inch high-resolution color touchscreen, the CS-R6E-50H offers intuitive operation and clear waveform display. It supports multiple testing modes including auto, real-time, and average, and stores up to 100,000 traces. The rugged design and long battery life make it suitable for field use in telecom and CATV networks.
