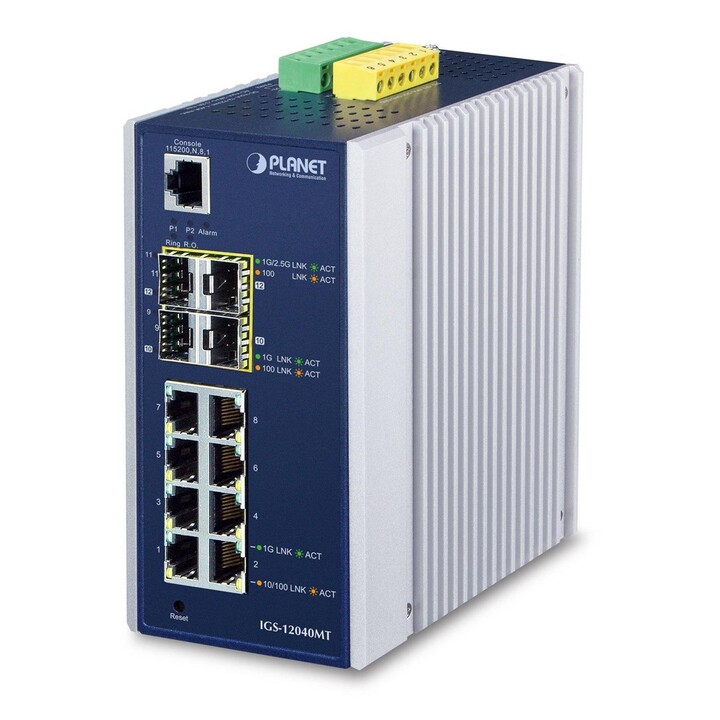

PLANET IGS-12040MT Managed L2+ Gigabit Ethernet Switch (10/100/1000) Blue, White
PLANET IGS-12040MT Managed L2+ Gigabit Ethernet Switch (10/100/1000) Blue, White

PLANET IGS-12040MT Managed L2+ Gigabit Ethernet Switch (10/100/1000) Blue, White

PLANET
Reference: IGS-12040MT
EAN: 4711605281010
Condition: New
€458.63
VAT included
Without tax: €379.03
The PLANET IGS-12040MT is a Managed L2+ Gigabit Ethernet Switch featuring 8 RJ-45 ports and 4 SFP slots. It supports advanced management protocols like SNMP and telnet, offers VLAN and QoS capabilities, and ensures robust security with ACL, SSH/SSL, and loop protection. Designed with energy efficiency, aluminum housing, and versatile mounting options, it delivers 24 Gbit/s switching capacity ideal for reliable network performance.
Share


Buy it now and receive it between Thu 24 and Mon 28 with GLS / UPS / DHL €5.99

Up to 3 years warranty 100% secure payment 14 days return

Energy control
Energy consumption (max)
12 W
Redundant Power Supply (RPS) support
Yeah
Energy consumption
6.5 W
Management features
Switch type
Managed
Web-based administration
Yeah
Quality of Service (QoS) support
Yeah
ARP Inspection
Yeah
System event log
Yeah
Switch layer
L2+
Traffic classification
Yeah
Connection
Network standards
IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 1588v2, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3u, IEEE 802.1s, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1ag
Auto MDI / MDI-X
Yeah
Virtual LAN functions
Protocol-based VLAN, Tagged VLAN, Stacked VLAN, Private VLAN
Copper Ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Self-negotiation
Yeah
Adding links
Yeah
Storm transmission control
Yeah
Full duplex
Yeah
Supports MAC address auto-learning
Yeah
Half-duplex transmission
Yeah
Supports auto-aging MAC address
Yeah
VLAN support
Yeah
Flow control support
Yeah
10G support
No
Spanning tree protocol
Yeah
Port mirroring
Yeah
Limit rate
Yeah
Number of VLANs
4095
Weight and dimensions
Height
152 mm
Weight
1.01 kg
Depth
107 mm
Broad
76 mm
Other features
Port terminal block
Yeah
Environmental conditions
Relative humidity range for operation
5 - 95%
Heat dissipation
22.18 BTU/h
Relative humidity range during storage
5 - 95%
Storage temperature range
-40 - 85 °C
Operating temperature range
-40 - 75 °C
Design
LED Indicators
Yeah
IP Code (International Protection)
IP30
Rack mount
No
Restore button
Yeah
Product color
White, Blue
Housing material
Aluminum
DIN rail mounting
Yeah
Wall mount
Yeah
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Optical fiber
Ethernet cabling fiber technology
1000BASE‑BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
Data transmission
Switching capacity
24 Gbit/s
Jumbo plots
9000
MAC address table
8000 tickets
Jumbo Frames, stand
Yeah
Performance
17.85 Mpps
Number of queues
8
Number of IP interfaces
8
Security
Access Control List (ACL)
Yeah
IGMP
Yeah
SSH/SSL support
Yeah
BPDU protection and filtration
Yeah
Loop protection
Yeah
Protocols
Management protocols
telnet, SNMP
Supported network protocols
IPv4 / IPv6
Multicast functions
Number of multicast groups filtered
255
Multicasting, support
Yeah
Ports and Interfaces
Basic type switching RJ-45 Ethernet ports
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Number of basic RJ-45 Ethernet switching ports
8
Number of SFP module slots
4
Logistics data
Harmonization System (HS) Code
85176990
