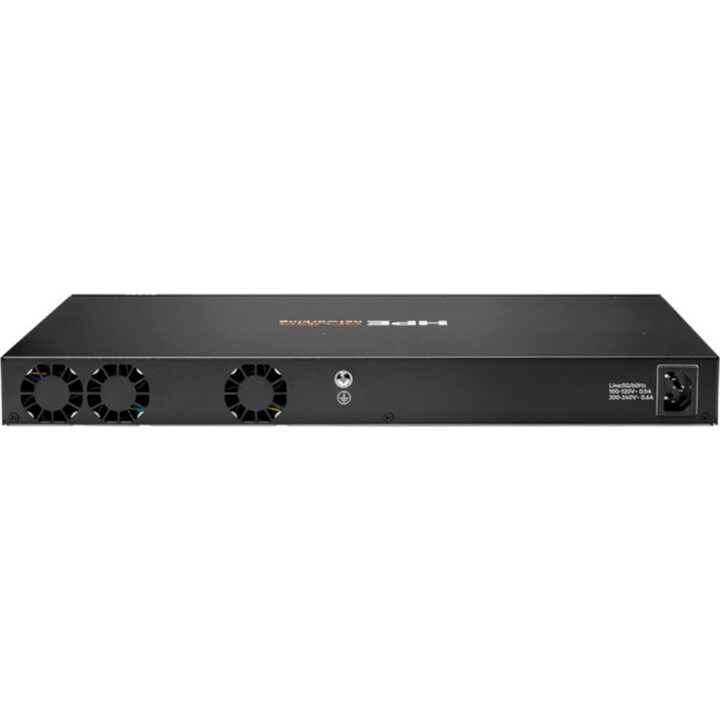

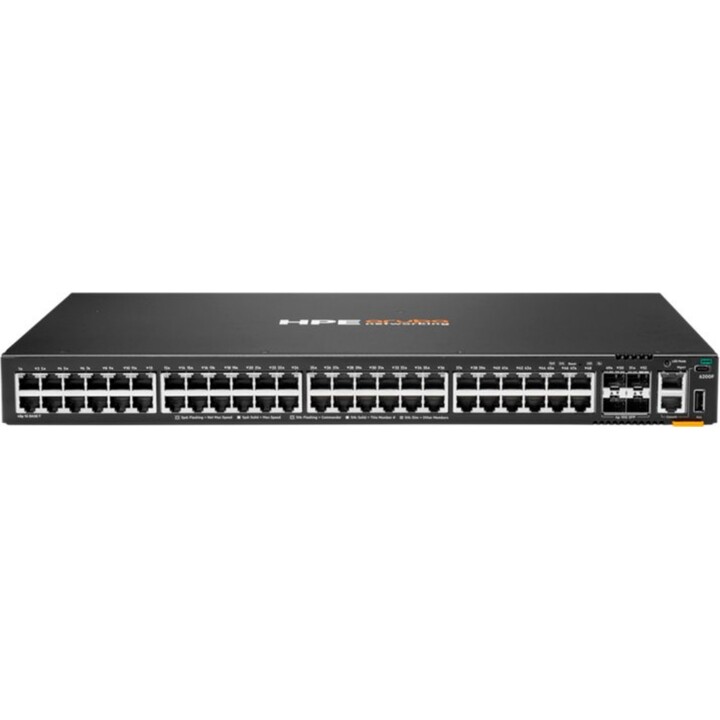

Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726B#ABB)
The Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726B) is an enterprise-class Layer 3 stackable access switch designed for high-performance networking in branch offices, campuses, and SMB environments. Built on the powerful Aruba Gen7 ASIC architecture, it provides a fully programmable operating system (AOS-CX) and the Aruba Network Analytics Engine for industry-leading monitoring and troubleshooting. This model features 48 Gigabit Ethernet ports and 4 high-speed 10GbE SFP+ uplink ports, supporting up to 176 Gbps of switching capacity. With support for Aruba Virtual Stacking Framework (VSF), up to 8 switches can be managed as a single logical device, offering exceptional scalability. The 6200F series is designed for operational efficiency with automated configuration and secure, role-based access through Aruba Dynamic Segmentation.
Technical Specifications
* **Ports:** 48 x 10/100/1000Base-T ports; 4 x 1/10G SFP+ uplink ports.
* **Processor:** Quad-Core ARM Cortex™ A72 at 1.8 GHz.
* **Memory:** 8 GB DDR4 RAM; 16 GB eMMC Flash.
* **Performance:** Switching capacity: 176 Gbps; Throughput: 130.9 Mpps.
* **Latency:** 1 Gbps: 2.28 μs; 10 Gbps: 1.46 μs.
* **Stacking:** Up to 8 members via VSF (Virtual Stacking Framework).
* **Layer Support:** Full Layer 3 (Static, OSPF, Access OSPF, RIP, Policy-based routing).
* **Management:** Aruba Central, Web GUI, CLI, Aruba NetEdit, and REST APIs.
* **Airflow:** Front and side to back.
* **Power Supply:** Fixed internal power supply (68W typical consumption).
* **Part Number:** JL726B#ABB.
* **EAN:** 0190017638447.
Connectivity and Features
* **Console Ports:** 1 x USB-C Console Port; 1 x RJ-45 Console Port.
* **OOBM:** 1 x RJ-45 Out-of-Band Management port.
* **USB:** 1 x USB Type-A Host port.
* **Security:** Dynamic Segmentation, ACLs, robust QoS, TPM (Trusted Platform Module).
* **Resiliency:** 802.3ad Link Aggregation, RPVST+, MSTP.
* **Mounting:** Rack-mountable (1U height), brackets included.
| Brand | HPE |
|---|---|
| Country | USA |
| Address of origin | 1701 E Mossy Oaks Rd, Spring, TX 77389, USA |
| EU responsible person | Hewlett Packard Enterprise |
| Address | Am Weißkirchener Berg 4, Eschborn, Germany, 60438 |
| [email protected] | |
| Phone | 4969153253500 |
