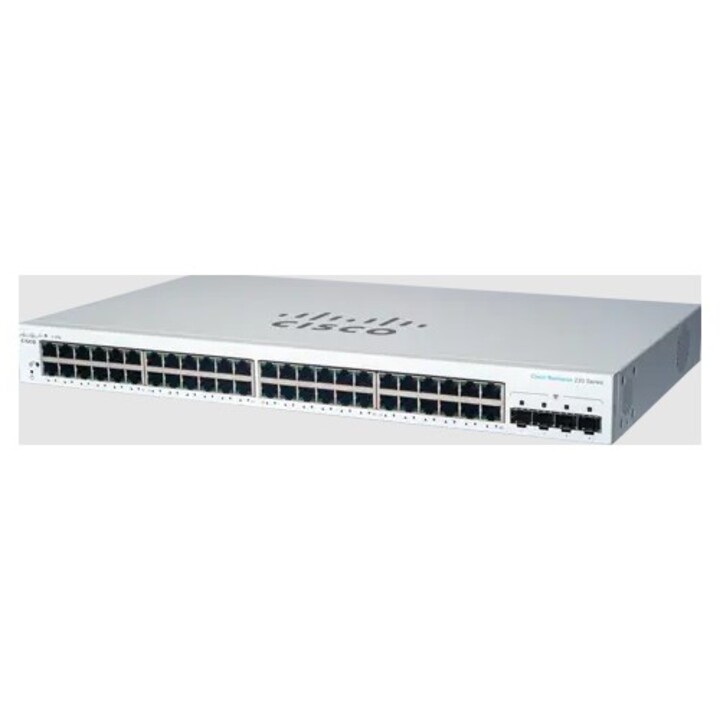

Cisco CBS220-48T-4G Managed L2 Gigabit Ethernet switch 1U white
Cisco CBS220-48T-4G Managed L2 Gigabit Ethernet switch 1U white

Cisco CBS220-48T-4G Managed L2 Gigabit Ethernet switch 1U white

Cisco
Reference: CBS220-48T-4G-EU
EAN: 0889728345224
Condition: New
€423.90
VAT included
Without tax: €350.33
The Cisco CBS220-48T-4G is a managed L2 Gigabit Ethernet switch featuring 48 RJ-45 ports and 4 SFP module slots. It supports advanced multicast functions, VLANs, IP routing, and QoS for optimized network performance. Designed for rack mounting with a 1U form factor, it offers robust security features including IEEE 802.1x authentication, ACL, and SSH/SSL support. Ideal for reliable and scalable network management in business environments.
Out-of-Stock
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Up to 3 years warranty 100% secure payment 14 days return

Ports and Interfaces
Number of SFP module slots
4
Basic RJ-45 Ethernet switching ports
Gigabit Ethernet (10/100/1000)
Number of RJ-45 Ethernet basic switching ports
48
Multicast Functions
Multicast MAC Address Table
8192 entries
Multicast, support
Yeah
Data transmission
Forwarding rate
74.38 Mpps
Switching capacity
104 Gbit/s
Jumbo Frames, stand
Yeah
Packet buffer
12 MB
MAC Address Table
8192 entries
Jumbo Plots
9216
Number of queues
8
Connection
Port mirroring
Yeah
Spanning Tree Protocol
Yeah
Number of VLANs
256
Head of Line (HOL) blocking
Yeah
Storm transmission control
Yeah
VLAN support
Yeah
Adding links
Yeah
IP Routing
Yeah
Ethernet LAN, data transfer rate
10,100,1000 Mbit/s
Network standards
IEEE 802.3, IEEE 802.3af, IEEE 802.1D, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3z, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1x, IEEE 802.1s, IEEE 802.3u, IEEE 802.3at
Auto MDI / MDI-X
Yeah
Flow control support
Yeah
10G Support
Yeah
Weight and dimensions
Weight
3.18 kg
Height
44 mm
Broad
440 mm
Depth
257 mm
Performance
Flash memory
64 MB
Upgradable firmware
Yeah
Internal memory
256 MB
Embedded processor
Yeah
Administration Features
Quality of Service (QoS) support
Yeah
Switch layer
L2
Switch type
Managed
Event log in system
Yeah
Web-based administration
Yeah
Design
LED indicators
Yeah
Rack mount
Yeah
Restore button
Yeah
Form factor
1U
Product color
White
Security
BPDU protection and filtering
Yeah
Authentication Type
IEEE 802.1x, RADIUS
MAC address filter
Yeah
DHCP Features
DHCP client
Access Control List (ACL)
Yeah
Queue scheduling algorithms
Weighted Round Robin (WRR)
SSH/SSL support
Yeah
Loop protection
Yeah
IGMP
Yeah
Supported security algorithms
SNMPv3, SNMPv2, SNMP
Logistics data
Harmonization System (HS) Code
85176990
Energy control
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Environmental conditions
Heat dissipation
124.54 BTU/h
Relative humidity range during storage
10 - 90%
Relative humidity range for operation
10 - 90%
Operating temperature range
0 - 50 °C
Storage temperature range
-20 - 70 °C
Protocols
Management protocols
SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
