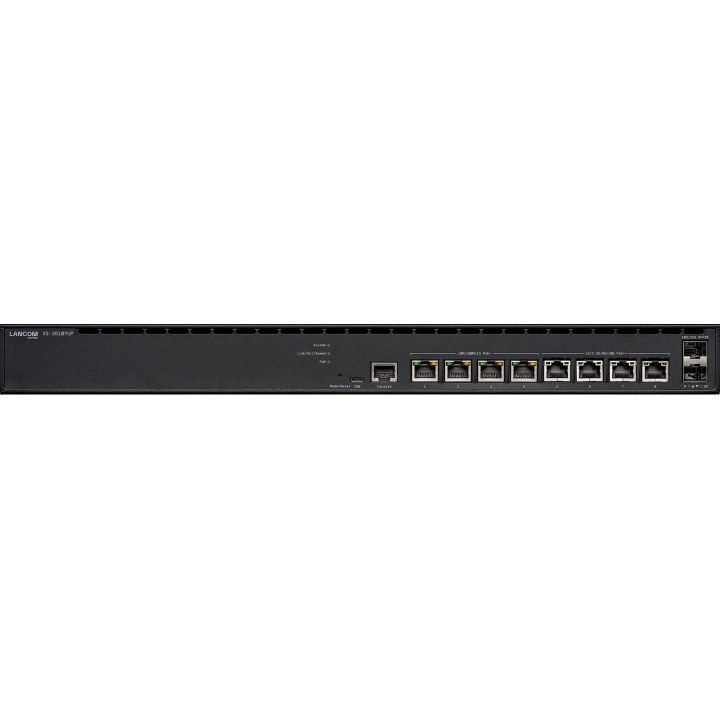

LANCOM XS-3510YUP Managed L3-Lite multi-gigabit PoE++ access switch 4x 1GE PoE+ 802.3at 4x 10GE PoE++ 802.3bt type 4 2x 25G SFP2

The LANCOM XS-3510YUP is a managed L3-Lite multi-gigabit PoE++ access switch designed to power and connect demanding network environments. It combines 1GE PoE+ ports, 10GE PoE++ ports and 25G SFP28 uplinks, making it a versatile choice for modern access-layer deployments.

With a throughput of 188 Gbit/s and a MAC address table of 16000 entries, the XS-3510YUP handles high-volume traffic efficiently. It supports VLAN, link aggregation, port mirroring and broadcast storm control, giving administrators granular control over network segmentation and resilience.

Security and multicast features are built in: IEEE 802.1x, RADIUS and TACACS+ authentication, IGMP proxy with 1024 entries, and MLD snooping. Jumbo frame support up to 10240 bytes helps optimise large data transfers, while two fans keep the unit cooled during operation.

Características principales

• Managed L3-Lite multi-gigabit PoE++ access switch
• 4x 1GE PoE+ (802.3at) copper ports and 4x 10GE PoE++ (802.3bt type 4) ports
• 2x 25G SFP28 uplink ports
• 188 Gbit/s throughput with a 16000-entry MAC address table
• VLAN support, link aggregation, port mirroring and broadcast storm control
• IEEE 802.1x, RADIUS and TACACS+ authentication
• IGMP proxy (1024 entries) and MLD snooping for multicast management

Especificaciones

Preguntas frecuentes

¿Qué tipos de puertos ofrece el LANCOM XS-3510YUP?

Incluye 4 puertos Gigabit Ethernet de cobre con PoE+ 802.3at, 4 puertos 10GE con PoE++ 802.3bt type 4 y 2 puertos SFP28 de 25G, además de un puerto de consola RJ-45.

¿Soporta segmentación de red mediante VLAN?

Sí, el switch ofrece soporte VLAN, junto con GARP VLAN Registration Protocol (GVRP), link aggregation y port mirroring.

¿Qué opciones de autenticación y seguridad incluye?

Admite autenticación IEEE 802.1x, RADIUS y TACACS+, además de broadcast storm control para proteger la red frente a tormentas de broadcast.

¿Gestiona tráfico multicast?

Sí, incorpora IGMP proxy con 1024 entradas y MLD snooping para una gestión eficiente del tráfico multicast.

Es para ti si...

• Necesitas un switch de acceso gestionado con PoE+ y PoE++ para alimentar dispositivos de red.
• Buscas uplinks de 25G SFP28 para agregar tráfico de alta capacidad.
• Requieres control avanzado con VLAN, link aggregation y port mirroring.
• Valoras funciones de seguridad como 802.1x, RADIUS y TACACS+.
