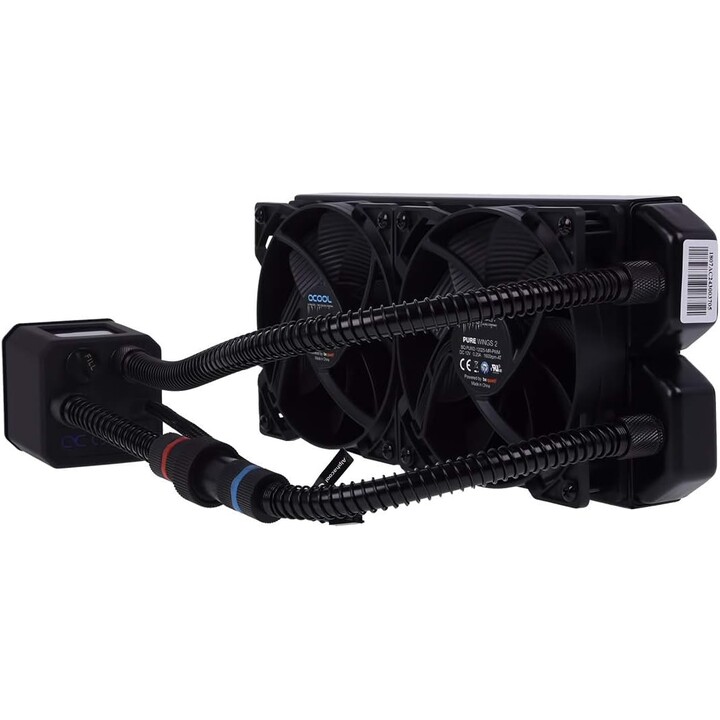

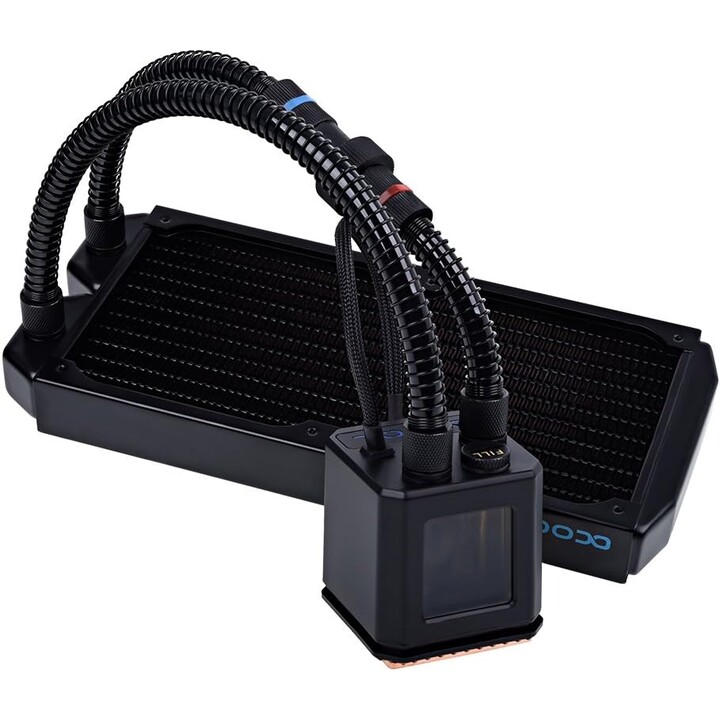

Alphacool Eisbaer 240 – Liquid Cooling Kit

With the "Eisbaer", Alphacool is revolutionising the market for AIO CPU-coolers (All-In-One-Coolers).

Where traditional AIO CPU-coolers are non-upgradable, non-refillable and disposable products: But Alphacool's "Eisbaer" is modularly constructed and can be expanded, rebuilt or refilled at any time.

The Eisbaer is an AIO (All-In-One), built with its own liquid-cooled components, ensuring a quality solution that is quieter and more powerful than typical AIOs.

Individual components:

Radiator
The radiator base (made of pure copper) is the popular one in the Alphacool NexXxoS series, which is highly appreciated all over the world. The pure copper construction raises the cooling performance enormously compared to the usual aluminium radiators used in classic AIOs (All-In-Ones). The thinner fins ensure an enormous cooling power for fans with low rotational speed.

Fans
The "Eiswind" fans were specially developed for radiators and generate a high static pressure in order to push cool air through the fan.

Both fans can be regulated with PWM in a huge range from 550 to 1700 RPM. A PWM adapter type -Y is included with the "Eisbaer" so that both fans can be controlled by the motherboard or a separate control with PWM connection.

Connectors
All connectors are based on the classic G1 / 4 inch standard in the field of liquid cooling. This way any time you want. This also means that, for example, if you later decide to switch to thicker hoses or even HardTubes and set your system uniquely apart.
All these features make the "Eisbaer" cooler something extraordinary. Its enhanced look, its illuminated logo and its illuminated pump tank let the inside of your PC shine in a whole new way.
With the "Eisbaer", you get a perfect product that is not only extremely powerful, but also runs very quietly.

Pumps
The basis of the pumps is the Alphacool DC-LT with Ultra Low Noise ceramics, also available separately. The pump runs very quietly and can be regulated between 7 and 12V. It can also be regulated via the motherboard. With the "Eisbaer" you will have no loss of performance.
The polished and shiny copper base of the cooler ensures optimal heat absorption and can transmit the heat over the thin slot structure of the cooler to the water quickly and efficiently.

Technical details:

Pump (Alphacool DC-LT 2600 Low Noise Ceramic)

• Speed: 2600 RPM
• Voltage: 7-13.5V DC
• Power consumption: 4W
• Maximum flow rate: 70 L / h
• Maximum head: 0.85m

Fan (Eiswind 12):

• Bearing: Cylinder bearings
• Voltage: 12V
• Power supply connection: 4-pin PWM
• Rated speed: 550-1700 (+/- 10%)
• Airflow: 63.85 cfm / 108 m3 / h
• Static pressure: 1.66 mmH20
• Volume: 29 dB (A)

Delivery data:

• • 1x Alphacool Eisbaer 240 CPU - Black
  • 2x Eiswind fans
  • 1x Intel backplate
  • 1x Intel bracket
  • 1x AMD bracket
  • PWM adapter
  • Mounting material
  • 1x thermal paste
