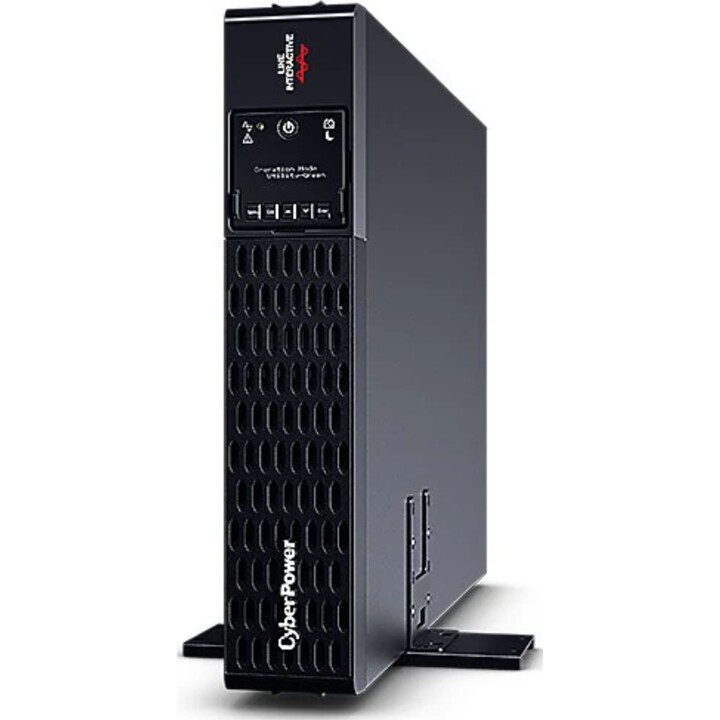

CyberPower PR3000ERTXL2U UPS (Uninterruptible Power Supply) Line Interactive 3 kVA 3000 W 8 AC Outlets

Description

CyberPower PR3000ERTXL2U Uninterruptible Power Supply (UPS) Line Interactive 3 kVA 3000 W 8 AC Outlets

The CyberPower PR3000ERTXL2U rackmount UPS provides backup power protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/storage devices, telecommunications equipment, network devices, and surveillance systems. The UPS features line-interactive topology with automatic voltage regulation (AVR) and delivers stabilized sine wave output to ensure high power quality.

Its output power factor is 1, making it suitable for more critical loads than conventional UPSs. Battery management technology optimizes battery life by balancing voltage. Two-phase battery charging ensures fast and safe charging. Hot-swappable battery packs allow for easy maintenance without power interruption. The multi-function LCD screen supports intuitive operation and quick setup. The LCD panel can also be rotated to accommodate various installation requirements.

Characteristics

• UPS Topology:?Interactive Line
• Output power capacity (VA):?3 kVA
• Output power:?3000 W
• Waveform:?Pure sine wave
• Minimum operating input voltage:±159 V
• Operating input voltage (max):?288 V
• Input frequency:?50/60 Hz
• Output operating voltage (min):?220 V
• Output operating voltage (max):?240 V
• Output frequency:?50/60 Hz
• Automatic Voltage Regulation (AVR):?Yes
• Maximum current:±16 A
• Energy increase index:?2430 J
• Transfer time (from Line mode to Battery mode):?4 ms
• Response time:?4 ms
• Number of input phases:±1
• Power factor:±1
• Power factor correction type (PFC):Active
• EMI/RFI noise filter:?Yes
• Overload protection:?Yes
• Power protection functions:?Overload, Short circuit
• Audible alarm(s):?Yes
• Web-based administration:?Yes
• Management protocols: SNMP/HTTP
• Audible alarm modes:Alarm sounds when switching to battery, Low battery alarm, Overload alarm
• Plug circuit breaker:?Yes

Ports and Interfaces

• AC output type:°C13 coupler, C19 coupler
• Connector:°C20 coupler
• Number of AC outlets:?8 AC outlets
• USB port:?Yes
• Serial interface:?Yes
• Interface serial type: RS-232
• Ethernet LAN (RJ-45) number of ports:?2
• Cabling technology:±10/100/1000Base-T(X)
• Emergency shutdown device:?Yes

Battery

• Battery technology:?Sealed Lead Acid (VRLA)
• Number of batteries supported:?4
• Typical backup time at full load:±1.7 min
• Typical backup time at half load:?7.1 min
• Battery recharge time:?3 h
• Hot-swap battery:?Yes
• Replacement battery cartridge: RBP0129

Design

• Form factor:?Rack/Tower or Frame/Tower
• Case material:?Metal
• Rack capacity:?2U
• Cable length:?2.4 m
• Product color:?Black
• Display type: LCD
• LED Indicators:?Error, Operation

Environmental conditions

• Operating temperature range:?0 - 40°C
• Storage temperature range:?-15 - 45 °C
• Relative humidity range for operation:?0 - 95%
• Relative humidity range during storage:?0 - 95%
• Operating altitude:?0 - 3000 m
• Non-operating altitude:?0 - 15000 m

Regulatory approvals

• Certificates of conformity:?RoHS
• Certification:°CE, FCC Class A, UL, CISPR 22 Class A, IEC62040-2, RCM, VCCI, EN 61000-3-2

Sustainability

• Sustainability certifications: ENERGY STAR

Weight and dimensions

• Width:?433 mm
• Depth:?500 mm
• Height:?86.5 mm
• Weight:?32.8 kg

Packaging

• Package width:?560 mm
• Package depth:?620 mm
• Package height:?275 mm
• Package weight:?41 kg
• Package volume:?40800 cm²

Other features

• Derivation:?GreenPower UPS

?
