Phasak Protekt Slim Rack Interactive Line UPS/ 1500VA-900W/ 4 Outputs/ Rack Format

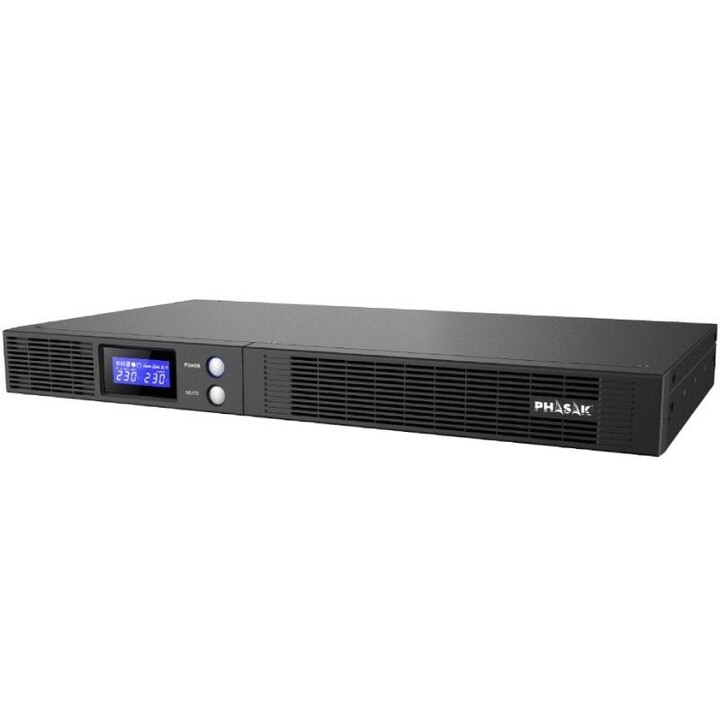

The Phasak PH 7541 (1U) is a powerful and compact Uninterruptible Power Supply (UPS) designed in a 1U Slim Rack format, ideal for business applications that require high backup capacity and protection against power outages and voltage fluctuations.

Main features:

High Capacity: With 1500 VA / 900 W, the PH 7541 is ready to support servers, telecommunications equipment, network systems and other critical devices.

Compact 1U design: This model fits perfectly into 19″ racks, optimizing space thanks to its small dimensions (44 mm high, 433 mm wide and 389 mm deep).

Efficient energy backup: Equipped with 4 6V/9Ah batteries, it offers ideal autonomy time to guarantee operational continuity during power outages.

Advanced Connectivity:

• 4 IEC C13 sockets for connecting essential equipment.
• USB HID port for monitoring and management via computers.
• EPO and RS232 ports for remote control functions and additional security.
• Interactive technology: Includes automatic voltage regulation (AVR), guaranteeing clean and stable energy at all times.
• Robust and efficient design: Weighing 16.7 kg, it combines power and functionality in a compact and versatile format.

The Phasak PH 7541 (1U) is the perfect solution for installations requiring high protection and backup capacity without compromising rack space.

Specs

• Power
• PH 7541: 1500 VA / 900 W
• Entrance
• Nominal Voltage: 220 / 230 / 240 Vac
• Voltage Range: 165 - 290 Vac
• Frequency: 50Hz/60Hz (Auto Detection)
• Exit
• Nominal Voltage (Battery): 220 - 240 Vac
• Frequency (Battery): 50 Hz / 60 Hz ± 1%
• Waveform (Battery): Pure Sine Wave
• Transfer Time: 4 ms
• Overload Protection: Circuit breaker or internal fuse protection
• Battery
• Quantity / Type / No.: 4x 6V / 9 Ah
• Charging time (90%): 4 h
• Indicators
• Display: Input/Output current
• Alarms:
• Battery on
• Low battery
• Overload
• Failed
• Characteristics
• Dimensions (WxHxD): 438 x 44 x 400 mm (1U)
• Weight: 16.2 kg
• Operating Humidity: 0 – 90% non-condensing
• Operating Temperature: 0 - 40 ºC
