It can support a load of up to 5000 watts. The runtime without power will depend on the load, but it is designed to provide enough time to save data and safely shut down equipment in case of power failures.

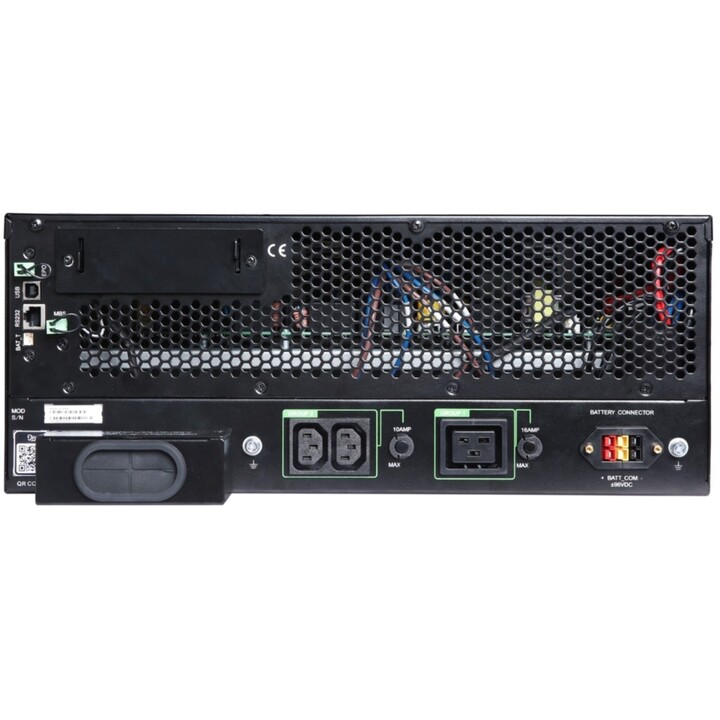

The runtime for a load of 500 to 5000 watts is between 2 minutes and 50 seconds to 5 minutes. The maximum capacity used is 100%. The main input voltage is 230V and can also be 220V or 240V. The main output voltage is 230V and can also be 220V or 240V. The rated power in watts is 5000W and in volt-amperes (VA) is 5000VA. It has 2 C13 power outlets, 1 C19 outlet, and a 3-wire output cable. The battery is lead-acid. It includes an RS-232 cable, user manual, and USB cable.
It does not have free power slots. It is not redundant.
It measures 17.78cm in height, 44cm in width, and 62cm in depth. It weighs 51.9 kg. It can be rack-mounted with a kit. It is not compatible with USB.
The input frequency is automatically detected between 40-70 Hz. It has 1 3-wire input connector. It supports an input voltage of 160 to 285V and a maximum input current of 30A. The current switching capacity is 40A.
The maximum configurable power is 5000W. The harmonic distortion is less than 2%. The output frequency is 50/60 Hz +/- 3 Hz. The crest factor is 3:1. The topology is double-conversion online. The waveform is sinusoidal. It has automatic and manual internal deviation. The runtime for a full load of 5000W is 3 minutes 30 seconds and for 2500W is 10 minutes 20 seconds.
It has European certifications indicating that it meets EU safety, quality, and performance standards. It operates from 0 to 40°C. Up to 6600 feet above sea level. The pre-installed batteries are 2 and there are no free slots. The typical recharge time is 4 hours. It includes 2 spare cartridges. The battery life is 3 to 5 years.
