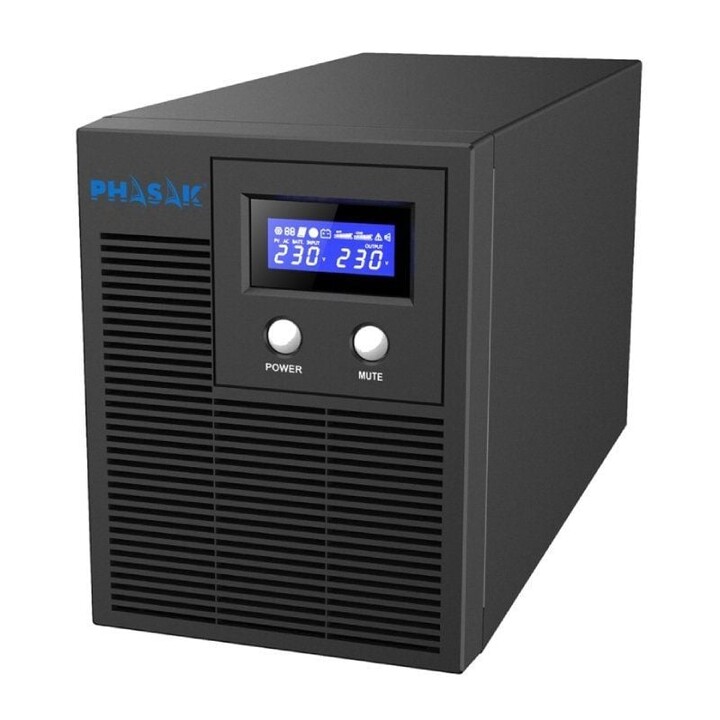

Line Interactive UPS Phasak Protekt 1060 VA/ 1060VA-700W/ 4 Outputs/ Tower Format

Protect Tower

The Protekt series in Tower format with interactive digital technology offers a complete and highly efficient solution for connected equipment.


Characteristics
The Protekt series in Tower format offers a complete and highly efficient solution for connected equipment. A robust and compact format that incorporates all the necessary shots for the most demanding user and a complete display with information in real time. The Surge Protect socket incorporated in all references allows the connection of equipment with high voltage peaks.

The compatibility with generators is an extra boost for this advanced UPS with interactive technology, which allows different monitoring options on Windows, Linux, Unix or Mac through the provided software.

The LCD screen provides real-time information on the voltage measurements at the input and output of the UPS, as well as information on the autonomy time or the current charging capacity of the batteries, among other relevant data. You can perform the management and control of the UPS parameters through the USB port with HID protocol, which allows access to the configuration and shutdown of systems easily from a computer with USB input. The supplied POWER GUIDE software allows monitoring and file management for Windows, Linux and Mac.

Equipment specially recommended for the use of Business IT Networks, telecommunications systems, industrial automation equipment, emergency installations or for the protection of dedicated lines. Critical applications: Industrial, public, pumps or electric motors, etc.

• Specifications
• Power: 1060VA / 700W
• Input
• Rated Voltage 220 / 230 / 240 Vac
• Voltage Range 165 - 290 Vac
• Frequency 50 Hz / 60 Hz (Auto detection)
• Exit
• Voltage Regulation (Bat.) 220 - 240 Vac
• Frequency (Bat.) 50 Hz / 60 Hz ± 1%
• Waveform (Bat.) Simulated sinusoidal
• Transfer time 4ms
• Overload protection Circuit breaker or internal protection fuse
• Battery
• Quantity / Type / no. 2x 12V/ 7 Ah
• Charging time (90%) 4h
• Indicators
• Input current / Output LED
• Warning Battery On / Battery Low / Overload / Fault
• Characteristics
• Dimensions (WxHxD) 140 x 191 x 327
• Weight (Kg) 13.5
• Operating humidity 0 – 90% without condensation
• Operating temperature 0 - 40ºC
