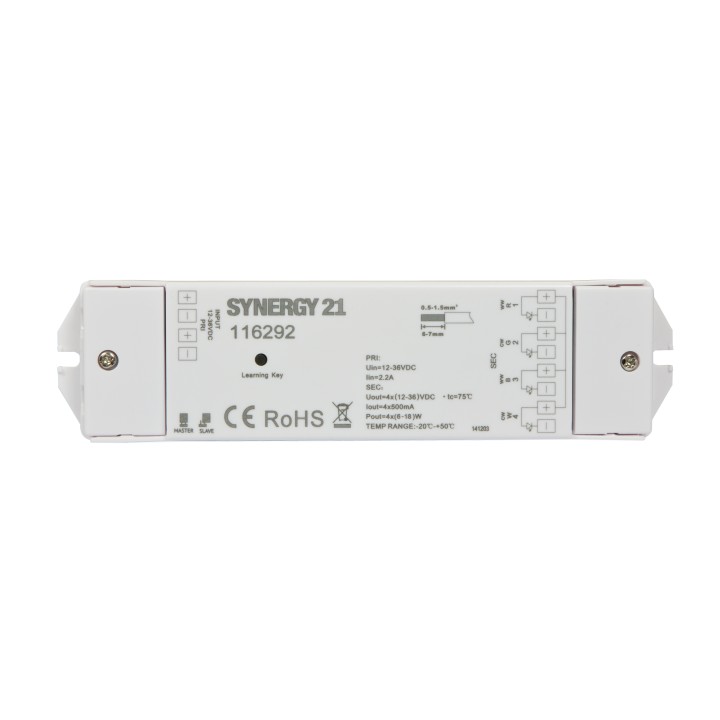

Synergy 21 LED Controller EOS 05 4-channel controller + CC500

The Synergy 21 LED Controller EOS 05 is a 4-channel radio controller designed for constant current. It is compatible with the switches and remote controls of the EOS 05 series and allows control of single-colour, dual-colour and RGB/RGB-W installations.

• Intuitive RGB colour selection via colour wheel
• Individual colours dimmable (8 levels)
• 10 colour programmes (preset)
• 16 programme speeds selectable (4 sec. - 256 sec.)
• Status memory in case of power failure
• Reception up to 15 metres away
• Input: 12-36 VDC
• Output: 4*500 mA
• Max output: 4*(6-12 W)
• Transmission power: >5 dBm
• Radio frequency: 868.3 MHz (EU approval - licence-free)
• Operating temperature: -10 °C - +60 °C
• Protection class: IP20
