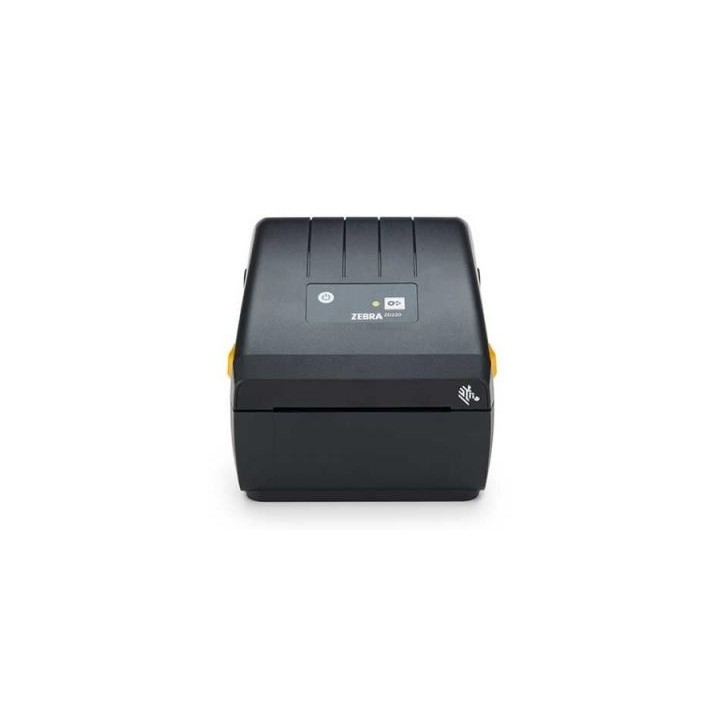

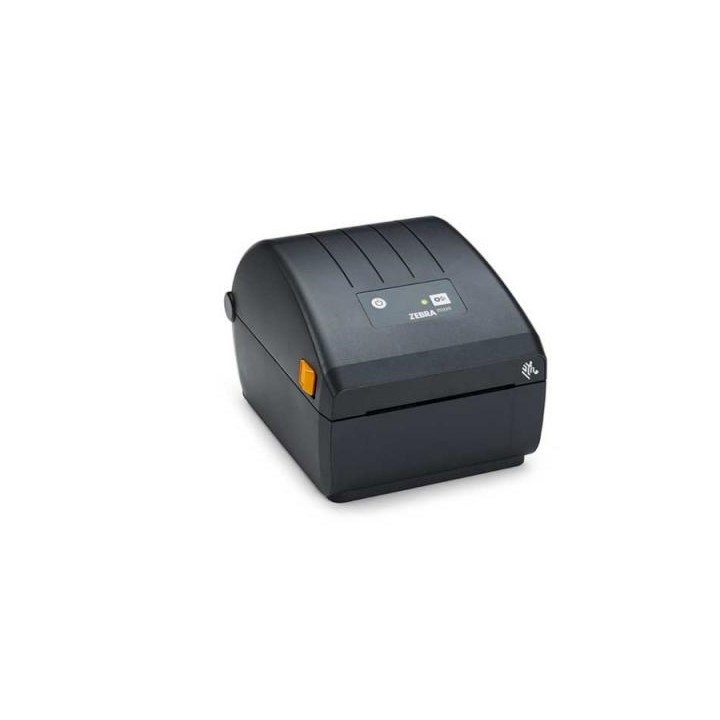

Zebra ZD230 label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
- Direct thermal printing with 203 x 203 DPI resolution
- Print speed up to 152 mm/sec for efficient label production
- Wired connectivity: Ethernet LAN and USB 2.0
- Compact desktop design with dual-wall frame construction
- Supports ZPL II, EZPL and XML programming languages
Zebra ZD230 label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
The Zebra ZD230 is a reliable desktop label printer designed for everyday printing in transportation, logistics, retail, healthcare and light manufacturing. It uses direct thermal printing technology to produce clear labels at a resolution of 203 x 203 DPI, ensuring barcodes and text remain legible. With a print speed of up to 152 mm per second, it keeps workflows moving efficiently.
Connectivity is straightforward with wired Ethernet LAN and a USB 2.0 port, making it easy to integrate into your network. The printer supports ZPL II, EZPL and XML programming languages, and includes a wide range of built-in barcode symbologies. Its dual-wall frame construction provides durability, while the single LED indicator and feed/pause button simplify operation.
Características principales
- Direct thermal printing technology – no ribbons required
- 203 x 203 DPI resolution for sharp text and barcodes
- Print speed up to 152 mm/sec
- Ethernet LAN and USB 2.0 connectivity
- 128 MB internal memory and 256 MB flash memory
- Supports ZPL II, EZPL and XML
- ENERGY STAR qualified
Especificaciones técnicas
| Print technology | Direct thermal |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152 mm/sec |
| Maximum printing width | 10.4 cm |
| Ribbon width | 10.9 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.2 cm |
| Maximum label length | 0.991 m |
| Maximum roll diameter | 12.7 cm |
| Media thickness | 0.08 - 0.1905 mm |
| Supported paper width | 25.4 - 112 mm |
| Core diameter | 1.27 cm |
| Connectivity technology | Wired |
| Ethernet | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Page description languages | EZPL, XML, ZPL II |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Built-in barcode | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Number of characters | 23 |
| Product colour | Black |
| Built-in display | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating relative humidity | 10 - 90% |
| Storage relative humidity | 5 - 95% |
| Operating temperature | 4.4 - 41 °C |
| Storage temperature | -40 - 60 °C |
| Width | 176 mm |
| Depth | 220 mm |
| Height | 151 mm |
| Weight | 1.1 kg |
| Quantity per pack | 1 piece(s) |
| Cables included | AC |
Preguntas frecuentes
Does this printer support wireless connectivity?
No, the Zebra ZD230 is a wired printer with Ethernet LAN and USB 2.0. It does not have Wi-Fi or Bluetooth.
What is the maximum print resolution?
The maximum resolution is 203 x 203 DPI, suitable for clear text and barcodes.
What barcode types are supported?
It supports a wide range of 1D and 2D barcodes, including Code 128, Code 39, EAN-13, QR Code, Data Matrix, PDF417 and many more.
What are the dimensions and weight?
The printer measures 176 mm in width, 220 mm in depth and 151 mm in height, and weighs 1.1 kg.
Es para ti si...
- You need a reliable desktop label printer for moderate-volume printing
- You require both Ethernet and USB connectivity for flexible integration
- You print labels, tags, receipts or barcodes in direct thermal mode
- You value a compact, durable design with dual-wall construction
-
