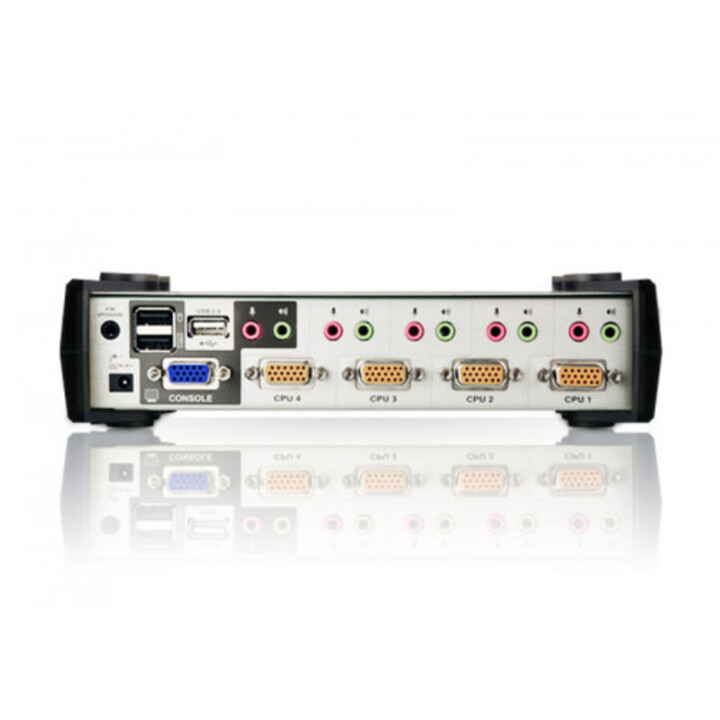

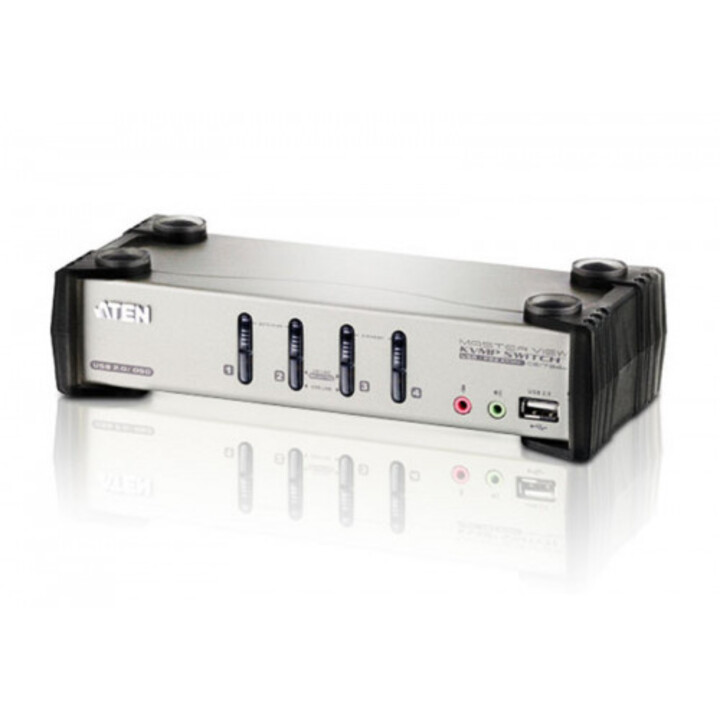

Aten Cs1734b Kvm Switch Silver

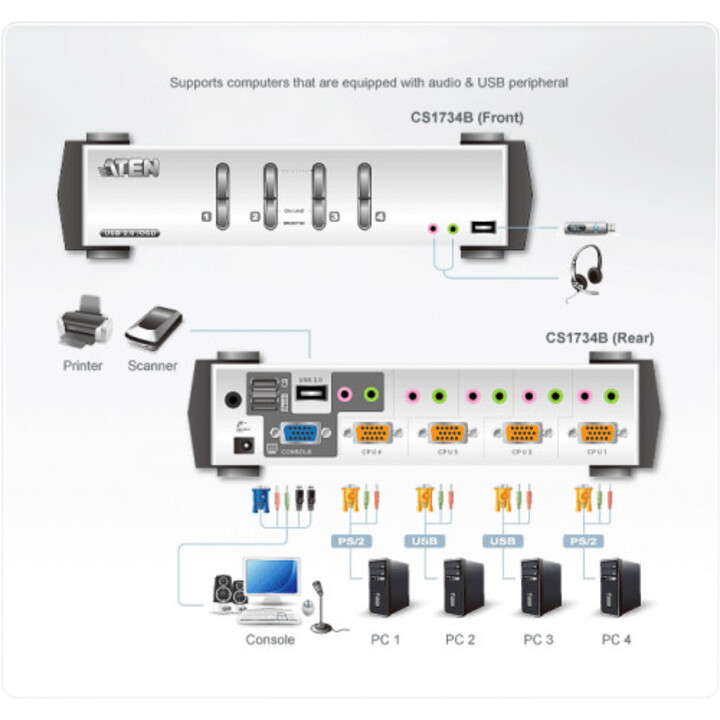

Features nn- 4-door KVM switch with USB 2.0 support and 2.1 surround audion- One console controls two computers and two additional USB devicesn- Built-in 2-door USB 2.0 hubn- USB 2.0 compatiblen - Dual interface, supports computers with PS/2 or USB keyboard and mousen- Supports audio, provides a rich listening experience with 2.1 surround audio systemsn- Console audio ports on the front panel, ideal for phone users IPn- Supports PS/2 and USB keyboards and micen- Flexible configurations supported, USDB to PS/2, PS/2 Keyboard and Mouse, USB Keyboard and Mouse or PS//2 Keyboard and USB Mouse.
Specifications:
- Built-in screen: No- Number of controlled computers: 4
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- Weight: 780g
- Power consumption: 3.4 W
- Operating temperature range: 0 - 50 °C
- Storage temperature range: -20 - 60 °C
- Relative operating humidity: 0 - 80%
- Power supply type: DC5.3V
- Dimensions (Width x Depth x Height): 210 x 87 x 55 mm
- Compatible operating systems: Windows 2000/XP/Vista\nLinux\nMac
- Number of ports: 4
- Product color: Silver
- Maximum resolution: 2048 x 1536 Pixels
Features nn- 4-door KVM switch with USB 2.0 support and 2.1 surround audion- One console controls two computers and two additional USB devicesn- Built-in 2-door USB 2.0 hubn- USB 2.0 compatiblen - Dual interface, supports computers with PS/2 or USB keyboard and mousen- Supports audio, provides a rich listening experience with 2.1 surround audio systemsn- Console audio ports on the front panel, ideal for phone users IPn- Supports PS/2 and USB keyboards and micen- Flexible configurations supported, USDB to PS/2, PS/2 Keyboard and Mouse, USB Keyboard and Mouse or PS//2 Keyboard and USB Mouse.n- Independent connection to separately manage the KVM, USB and Audio focusn- Superior video quality, 2048 x 1536 DDC2Bn- Supports wide screen resolutionsn- Computer selection via front panel, OSD and mousen- Multiplatform support , Windows, Mac, and Sunn- Console mouse emulation, bypass feature supports multifunction micen- Video DynaSync™, EDID (Extended Display Identification Data) to optimize video resolutionn- Full keyboard emulation to avoid startup errorsn- Supports Sun/Mac keyboard emulation*n- Autoscan mode to monitor computersn- Led display for easy monitoringn- Easy installation, no software requiredn- Upgradeable firmwaren nn*1. PC keyboard emulates Sun/Mac keyboardsn*2. Sun/Mac keyboards only work on Sun/Mac computersnn Package Contents nn- 1x 4-Port USB 2.0 KVMP™ Switch with OSDn- 2x USB KVM Cablesn- 1x USB to PS Adapter /2n- 2x OSD Indicator Stickersn- 1x Firmware Update Cablen- 1x Power Adaptern- 1x User Manualn- 1x Quick Installation Guide
-
ColourSilver
-
TypeKVM switch
| Brand | Aten |
|---|---|
| Country | Belgium |
| Address of origin | Mijnwerkerslaan 34, 3550 Heusden-Zolder |
| EU responsible person | Aten Polska Sp. z.o.o. |
| Address | Łopuszańska 32, 02-220 Warsaw, Poland |
| [email protected] | |
| Phone | 48228608777 |
Safety warnings
General warnings for this type of product. Always follow the manufacturer's instructions.
- Read the manufacturer's instructions before installing or using the appliance and keep them.
- Connect it only to a mains supply of the stated voltage and use the power supply or cable provided.
- Do not use it with a damaged cable, plug or casing and do not open it: repairs by qualified personnel only.
- Protect it from moisture, liquids and heat, and keep the ventilation openings clear.
- Unplug it before cleaning and when it will not be used for a long time.
- Keep it out of the reach of children.
- At the end of its life, take it to a collection point for waste electrical and electronic equipment (WEEE).
