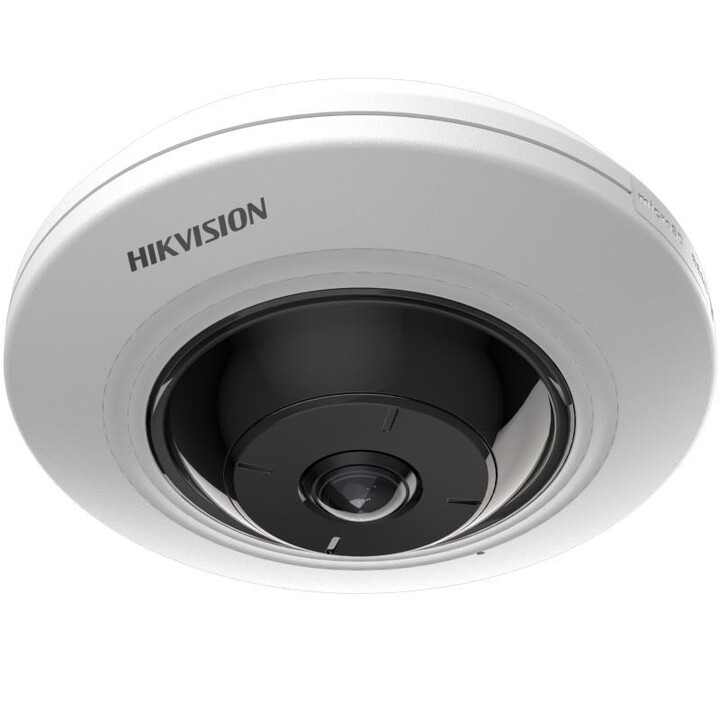

Hikvision Panoramic DS-2CD3956G2-ISU Series (1.05 mm) Pad Indoor IP Security Camera 2592 x 1944 Pixels Ceiling/Wall
Hikvision Panoramic DS-2CD3956G2-ISU Series (1.05 mm) Pad Indoor IP Security Camera 2592 x 1944 Pixels Ceiling/Wall
Hikvision Panoramic DS-2CD3956G2-ISU Series (1.05 mm) Pad Indoor IP Security Camera 2592 x 1944 Pixels Ceiling/Wall

Hikvision Panoramic DS-2CD3956G2-ISU Series (1.05 mm) Pad Indoor IP Security Camera 2592 x 1944 Pixels Ceiling/Wall

HikVision
Reference: 100566703
EAN: 6931847180034
Condition: New
€426.25
VAT included
Without tax: €352.27
The Hikvision Panoramic DS-2CD3956G2-ISU Series is a high-resolution indoor IP security camera with a 1.05 mm fixed focal length lens, offering a 180° panoramic view. It supports 2592 x 1944 pixel resolution, night vision up to 8 meters, and advanced video features like 3D noise reduction and wide dynamic range. Equipped with Wi-Fi, Ethernet, and Bluetooth connectivity, it ensures secure monitoring with multiple user access levels and intelligent video surveillance capabilities.
Share


Buy it now and receive it between Tue 29 and Mon 5 with GLS o Correos Express España €19.90

Up to 3 years warranty 100% secure payment 14 days return

Deposit methods
Built-in hard drive
Yeah
RAM capacity
400 MB
Maximum memory card size
256 GB
Internal memory
60 MB
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Integrated card reader
Yeah
Flash memory
2000 MB
Connection
Wi-Fi
Yeah
Number of users
32 users
Ethernet interface type
Fast Ethernet
Network standards
IEEE 802.3af
Bluetooth
Yeah
Ethernet
Yeah
User access level
Administrator, Operator, User
Live view
Yeah
Transmission mode
Multicast
Number of simultaneous live viewing channels
6 channels
Sustainability
Certificates of conformity
RoHS, WEEE, Low Voltage Directive (LVD), REACH, UL, RCM, CE, US Federal Communications Commission (FCC), CB
Sustainability compliance
Yeah
Night vision
Night vision
Yeah
Night vision distance
8 meters
Infrared wavelength
850 nm
LED Type
GO
Management features
Restore button
Yeah
Security
Supported security algorithms
TLS, SRTP, HTTPS
Summary Authentication
Yeah
Password protection
Yeah
Password reset via email
Yeah
Alarm output channels
1
Beat
Yeah
Active tamper alarm
Yeah
HTTPS encryption
Yeah
IP address filter
Yeah
Mirror
Yeah
Features of the intelligent video surveillance system (IVS)
Heat map
Audit log
Yeah
Flash log
Yeah
Automatic Network Replenishment (ANR, Automatic Network Replenishment)
Yeah
Alert notification type
Email
Pixel counter
Yeah
Environmental conditions
Storage temperature range
-10 - 50 °C
Operating temperature range
-10 - 50 °C
Relative humidity range during storage
0 - 95%
Relative humidity range for operation
0 - 95%
Audio
Supported audio formats
AAC-LC, G.711 A-Law, MP3, PCM, G.722.1, G.726, MP2L2, G.711 μ-Law
Audio input channels
1.0 channels
Audio output channels
1.0 channels
Signal-to-noise ratio (SNR)
52 dB
Bit transfer rate range
16 - 320 Kbps
Collection frequencies
8 - 48 kHz
Lens system
Maximum opening
2.25
Fixed focal length
1.05 mm
Detection distance
21 meters
Recognition distance
4 meters
Observation distance
8 meters
Identification distance
2 meters
Video
Supported graphic formats
1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 2592 x 1944, 1280 x 720 (HD 720), 2688 x 1520
Noise reduction
Yeah
Noise reduction technology
3D Noise Reduction
Total megapixels
5 MP
Image quality adjustment
Sharpness, Contrast, Brightness, Saturation
Video compression formats.
H.264, H.265+, H.264+, H.265, M-JPEG
Maximum resolution
2592 x 1944 pixels
High Beam Compensation (HLC)
Yeah
Coding of regions of interest (ROI)
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy mask
Yeah
Backlight compensation (BLC)
Yeah
Bit rate
32 Kbps - 16 Mbps
Packaging
Package weight
510 g
Package width
150 mm
Package depth
125 mm
Package height
99 mm
Energy control
DC output voltage
12
Feeding
CC, PoE
Energy consumption
6 inches
Power consumption (Power over Ethernet, PoE)
7.5 W
DC output amperage
0.5 A
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Design
Form factor
Pad
Mounting type
Ceiling/Wall/Desk
Product color
White
Weight and dimensions
Weight
320 g
Height
41.2 mm
Diameter
12 cm
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
RS-485 Ports
1
Performance
Guy
IP security camera
Entry/Exit Alarm
Yeah
Dynamic range
120 dB
Number of languages
33
Open platform version
HEOP 2.0
Wide Dynamic Range (WDR)
Yeah
Connectivity technology
Wired
Infrared cut filter
Yeah
AI software working environment
Caffe, TensorFlow
Supported programming languages
C++
Supported placement
Inside
Day/Night Mode
Yeah
Camera
Minimum lighting
0 lx
Shutter speed
1 - 1/100000 s
Lens viewing angle, diagonal
180°
Lens viewing angle, horizontal
180°
Lens viewing angle, vertical
180°
Technical details
Lens mounting interface
M12
Package contents
Number of cameras
1

  • Brand
  • Reference
    100566703
  • In stock
    18 Items
  • Condition
    New
  • EAN13
    6931847180034
  • MPN
    100566703

Brand HikVision
Country China
Address of origin No. 555 Qianmo Road, Distrito Binjiang​, Hangzhou, Zhejiang 31005
EU responsible person Hikvision Europe B.V.
Address Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH
Email [email protected]
Phone 31235657200
