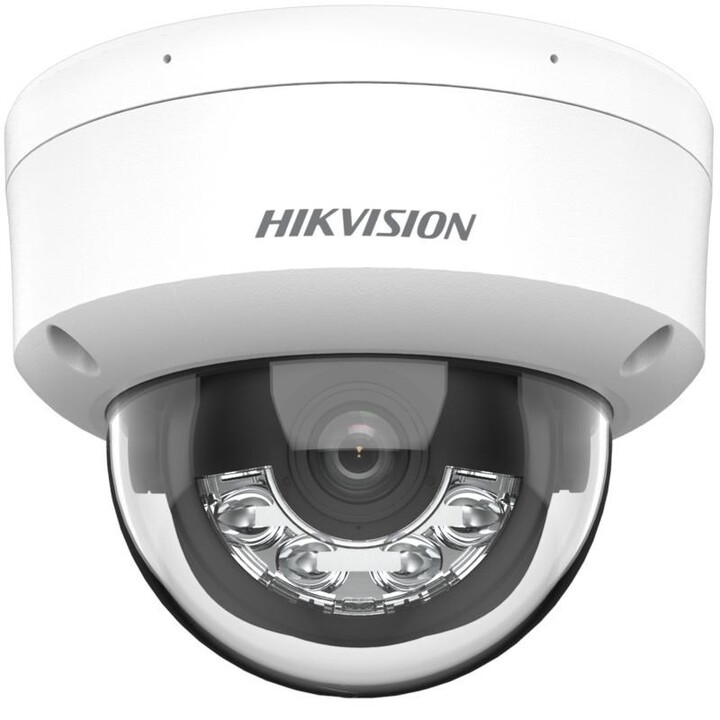

HIKVISION DS-2CD1183G2-LIUF 2.8mm IP Camera
Reference:
DS-2CD1183G2-LIUF 2.8mm PL
EAN:
6936422114695
Condition:
New
Price:
€127.81
VAT included
Without tax:
€105.63
The HIKVISION DS-2CD1183G2-LIUF 2.8mm IP Camera offers 8MP ultra-high definition video with advanced features like WDR, infrared night vision up to 30 meters, and 3D noise reduction. Designed for indoor and outdoor use, it supports wired and wireless connectivity, multiple user access levels, and robust security features including tamper alarms and password protection. Its compact, weather-resistant design with IP67 rating ensures reliable performance in harsh environments.
Weight and dimensions
Weight
550 g
Diameter
12.2 cm
Height
97.6 mm
Design
Housing material
Plastic, Metal
Weather resistant
Yeah
Product color
White
IP Code (International Protection)
IP67
Form factor
Pad
Mounting type
Ceiling
IK code
IK08
Environmental conditions
Operating temperature range
-30 - 60 °C
Relative humidity range for operation
0 - 95%
Relative humidity range during storage
0 - 95%
Storage temperature range
-30 - 60 °C
Performance
Number of languages
2
Guy
IP security camera
Infrared cut filter
Yeah
Dynamic range
120 dB
Supported placement
Interior and exterior
Day/Night Mode
Yeah
Wide Dynamic Range (WDR)
Yeah
Connectivity technology
Wired
Camera
Lens viewing angle, diagonal
134°
Lens viewing angle, vertical
62°
Lens viewing angle, horizontal
113°
Angle of inclination
0 - 75°
Rotation angle
355°
Tray reach
0 - 355°
Minimum lighting
0 lx
Shutter speed
1/3 - 1/100000 s
Connection
Live view
Yeah
Bluetooth
Yeah
User access level
Administrator, Operator, User
Number of simultaneous live viewing channels
6 channels
Wi-Fi
Yeah
Ethernet
Yeah
Interoperability with the client
iVMS-4200, Hik-Connect
Supported network protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Number of users
32 users
Quality of Service (QoS) support
Yeah
Security
Active tamper alarm
Yeah
Digital watermark
Yeah
Password reset via email
Yeah
Beat
Yeah
Password protection
Yeah
Mirror
Yeah
Video motion detection
Yeah
Energy control
Power consumption (Power over Ethernet, PoE)
7.5 W
Energy consumption (max.)
6 inches
Feeding
CC, PoE
DC output voltage
12
DC output amperage
0.5 A
Packaging
Package depth
150 mm
Package width
150 mm
Package height
141 mm
Package weight
800 g
Deposit methods
Integrated card reader
Yeah
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in hard drive
Yeah
Maximum memory card size
512 GB
Image sensor
Sensor type
CMOS
Number of sensors
1
Progressive scanning
Yeah
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Technical details
Iris
Yeah
Lens mounting interface
M12
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
Night vision
Infrared wavelength
850 nm
Night vision
Yeah
Night vision distance
30 meters
LED Type
GO
Audio
built-in microphone
Yeah
Bit transfer rate range
16 - 160 Kbps
Signal-to-noise ratio (SNR)
52 dB
Collection frequencies
8 - 16 kHz
Supported audio formats
PCM, G.722.1, AAC-LC, MP2L2, G.711 Law A, G.726
Lens system
Number of lenses
1
Fixed focal length
2.8 mm
Identification distance
7 meters
Recognition distance
15 meters
Maximum opening
2
Detection distance
79 meters
Observation distance
31 meters
Video
Maximum resolution
3840 x 2160 pixels
Bit rate
32 Kbps - 16 Mbps
Video compression formats.
H.265, H.265+, H.264+, M-JPEG, H.264
Backlight compensation (BLC)
Yeah
Noise reduction technology
3D Noise Reduction
Privacy mask
Yeah
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video recording
Yeah
Frame rate
15 pages
Coding of regions of interest (ROI)
Yeah
Image quality adjustment
Sharpness, Brightness, Saturation, White Balance, Contrast
Total megapixels
8 MP
Noise reduction
Yeah
High Beam Compensation (HLC)
Yeah
Supported graphic formats
2688 x 1512, 3200 x 1800, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 3860 x 2160, 1280 x 720 (HD 720), 640 x 360
Sustainability
Certificates of conformity
KC, REACH, US Federal Communications Commission (FCC), CB, RoHS, WEEE, Low Voltage Directive (LVD)
Package contents
Number of cameras
1
Management features
Web-based administration
Yeah
-
Brand
-
ReferenceDS-2CD1183G2-LIUF 2.8mm PL
-
In stock13 Items
-
ConditionNew
-
EAN136936422114695
-
MPNDS-2CD1183G2-LIUF 2.8mm PL
-
ColorWhite
-
Connected productYes
