Hikvision DS-2TD1228-2/QA IP Camera (BLACK)
- Thermal resolution: 160 × 120, NETD < 35 mK
- Optical resolution: 2 MP (1920 × 1080)
- Lens: 8 mm (thermal), 4 mm (optical)
- Protection: IP67, IK10
- Analytics: Line crossing, intrusion, temperature exception
Hikvision DS-2TD1228-2/QA IP Camera (BLACK)

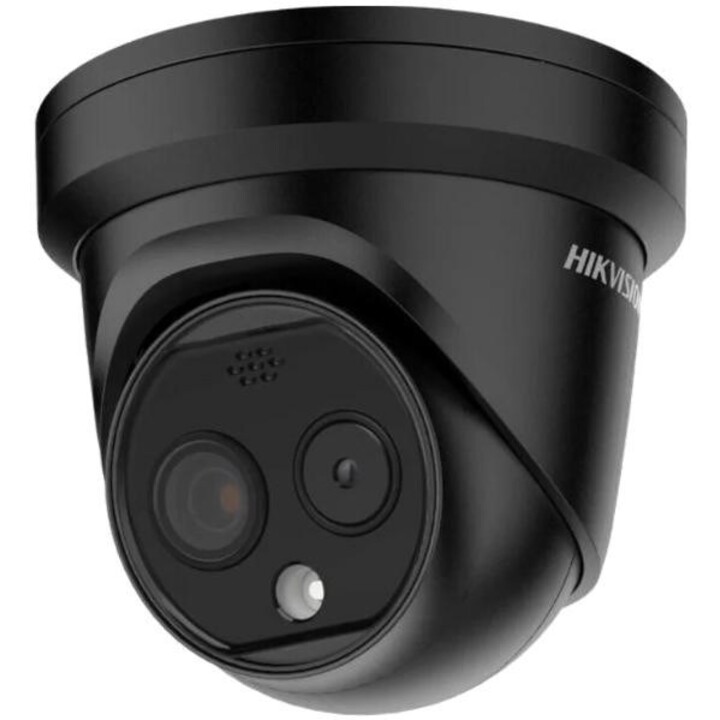

The Hikvision DS-2TD1228-2/QA is a dual-spectrum IP camera combining thermal and optical imaging for reliable 24/7 surveillance. With a thermal resolution of 160×120 and a 2MP optical channel, it detects heat signatures and visual details simultaneously. The camera features an 8mm thermal lens and a 4mm optical lens, providing a wide field of view for perimeter protection.
Built for harsh environments, this camera boasts IP67 and IK10 ratings, ensuring resistance to dust, water, and impact. It supports intelligent analytics such as line crossing, intrusion detection, and temperature exception alerts, making it ideal for critical infrastructure and industrial sites. The black housing blends discreetly into various settings.
| Thermal Resolution | 160 × 120 |
| NETD | < 35 mK |
| Optical Resolution | 2 MP (1920 × 1080) |
| Thermal Lens | 8 mm |
| Optical Lens | 4 mm |
| Field of View (Thermal) | 24° × 18° |
| Field of View (Optical) | 84° × 45° |
| Protection Rating | IP67, IK10 |
| Analytics | Line crossing, intrusion, temperature exception |
| Power Supply | PoE (802.3af), 12 VDC |
| Operating Temperature | -40 °C to 65 °C |
-
