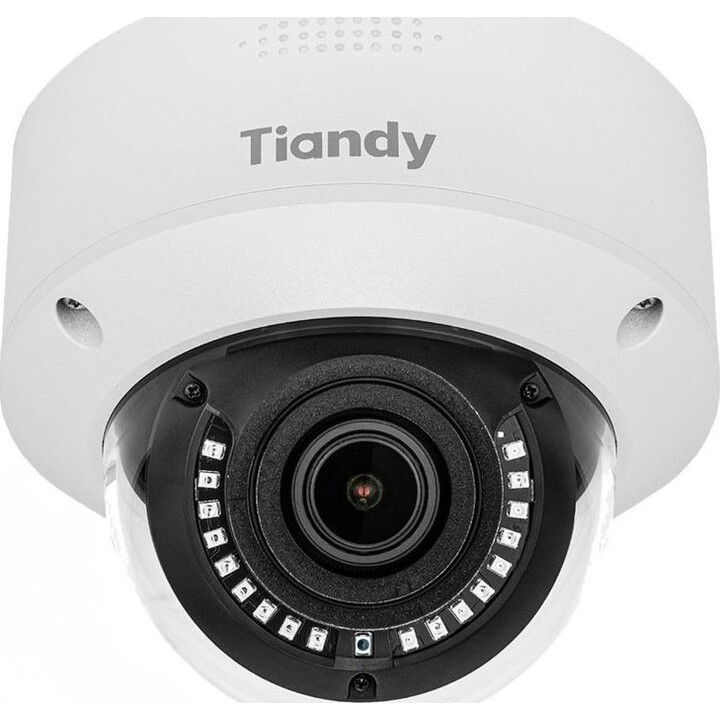

IP CAMERA TC-C38MS 3LHA-27135 Lite Series - 8 Mpx 2.7 ... 13.5 mm TIANDY
IP CAMERA TC-C38MS 3LHA-27135 Lite Series - 8 Mpx 2.7 ... 13.5 mm TIANDY
The Tiandy TC-C38MS 3LHA-27135 is a high-performance 8MP IP camera from the Lite Series, designed for demanding surveillance applications. Featuring a 1/2.8-inch progressive scan CMOS sensor, it delivers crisp 3840x2160 resolution at 20fps. The motorized 2.7-13.5mm varifocal lens with auto focus provides flexible viewing angles from 112° to 31°, allowing precise scene adjustment remotely. With Smart H.265+ compression, bandwidth and storage are optimized without sacrificing image quality.
Built for outdoor use, this camera boasts IP67 weatherproof and IK10 vandal-resistant ratings, ensuring reliable operation in harsh environments. Integrated IR LEDs provide up to 50m night vision, while advanced features like WDR (120dB), 3D DNR, and BLC enhance image clarity in challenging lighting. The camera supports ONVIF Profile S/G/T for seamless integration with third-party systems, and includes intelligent analytics such as line crossing, intrusion detection, and scene change detection.
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 8MP (3840x2160) @ 20fps |
| Lens | 2.7-13.5mm motorized varifocal, F1.4-F2.8 |
| Angle of View | Horizontal: 112°~31°, Vertical: 58°~17° |
| Minimum Illumination | Color: 0.005 lux; B/W: 0.001 lux; 0 lux with IR |
| IR Distance | Up to 50m (164ft) |
| Video Compression | Smart H.265+/H.265/H.264 |
| WDR | 120dB |
| Day/Night | ICR auto switch |
| Audio | 1ch audio input, 1ch audio output |
| Alarm | 1ch alarm input, 1ch alarm output |
| Network | RJ45 10/100Mbps, PoE (802.3af) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, RTP, RTSP, RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, ONVIF (Profile S/G/T) |
| Intelligent Analytics | Line crossing, intrusion, region entrance/exit, scene change, audio detection, face detection |

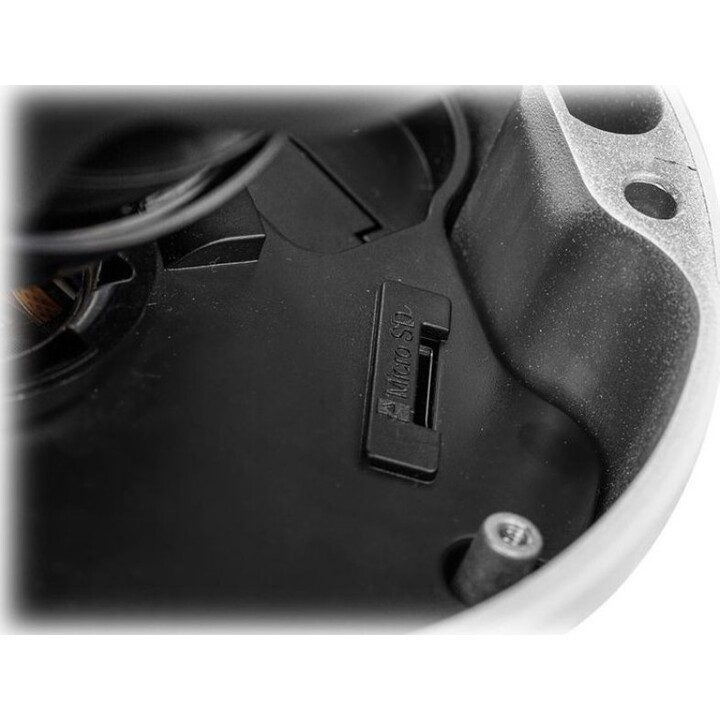

| Storage | MicroSD slot (max 256GB), NAS |
| Power Supply | DC12V ±25% or PoE (802.3af) |
| Power Consumption | ≤12W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |

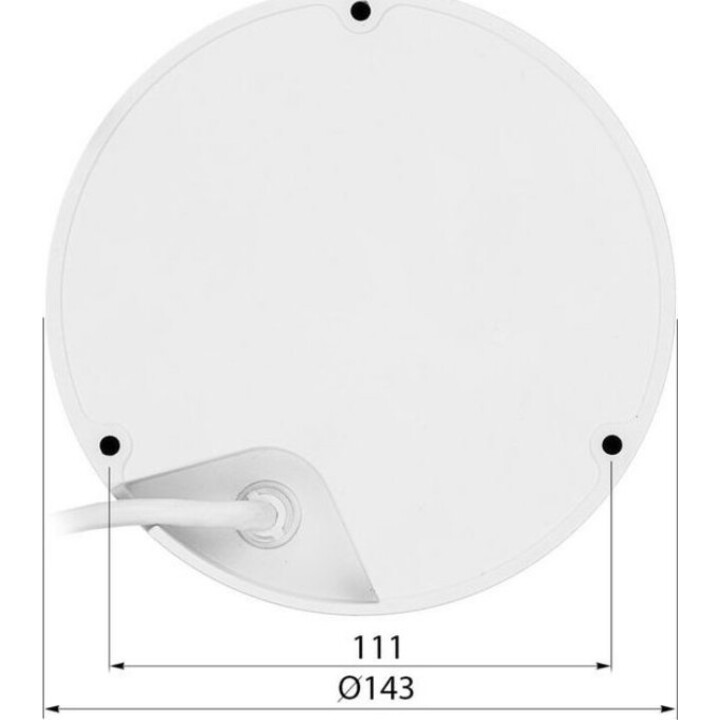

| Dimensions | Φ140mm × 106mm (Φ5.5" × 4.2") |
| Weight | Approx. 1.2kg (2.65lbs) |
-
