IP Camera TC-C34HS SPECIFICATIONS: I3/E/Y/C/SD/2.8MM

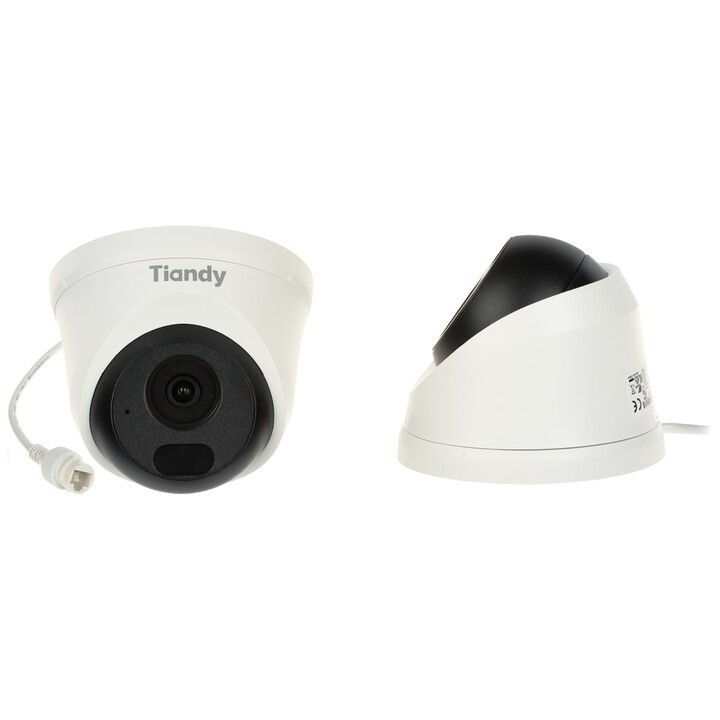

The Tiandy TC-C34HS is a robust 2MP outdoor IP camera designed for reliable surveillance in various environments. Featuring a 2.8mm fixed lens with a 105° horizontal field of view, it captures wide-angle footage suitable for monitoring entrances, corridors, or open areas. The camera supports multiple options (I3/E/Y/C/SD) for enhanced functionality, including smart IR, audio, alarm, and SD card storage.
With H.265+ compression, the TC-C34HS reduces bandwidth and storage requirements while maintaining high image quality. Its IP67-rated housing ensures protection against dust and water, making it ideal for outdoor installations. Power over Ethernet (PoE) simplifies cabling, and the built-in microSD slot allows for local recording up to 256GB. The camera also features true day/night operation with an ICR filter and smart IR illumination up to 30 meters.
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2MP (1920x1080) |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 105°, Vertical: 58°, Diagonal: 125° |
| Minimum Illumination | Color: 0.01 Lux @ F2.0; B/W: 0.001 Lux @ F2.0; 0 Lux with IR |
| IR Range | Up to 30m (smart IR) |
| Day/Night | ICR auto switch |
| Video Compression | H.265+, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1920x1080 @ 25/30fps; Sub Stream: 704x576 @ 25fps |
| Audio | 1ch audio input (line in), 1ch audio output (line out) (E model) |
| Alarm | 1ch alarm input, 1ch alarm output (Y model) |
| Storage | MicroSD slot up to 256GB (SD model) |
| Network | RJ45 10/100M, PoE (802.3af) |
| Protocols | TCP/IP, UDP, HTTP, DHCP, DNS, RTSP, NTP, IPv4, IPv6 |
| Power | PoE (802.3af) or 12V DC, max 7W |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Dimensions | Φ70mm x 186mm |
| Weight | Approx. 0.5kg |
