Expert-PoE/OTD-82GSFP External Camera Distribution Point
- 8 x Gigabit PoE+ (802.3af/at) ports, 30W per port
- 2 x Gigabit SFP uplink slots for fiber connectivity
- Total PoE budget: 120W
- Rugged metal housing, IP30 rated, operating temp -40°C to 75°C
- Plug-and-play, no configuration required
Expert-PoE/OTD-82GSFP External Camera Distribution Point

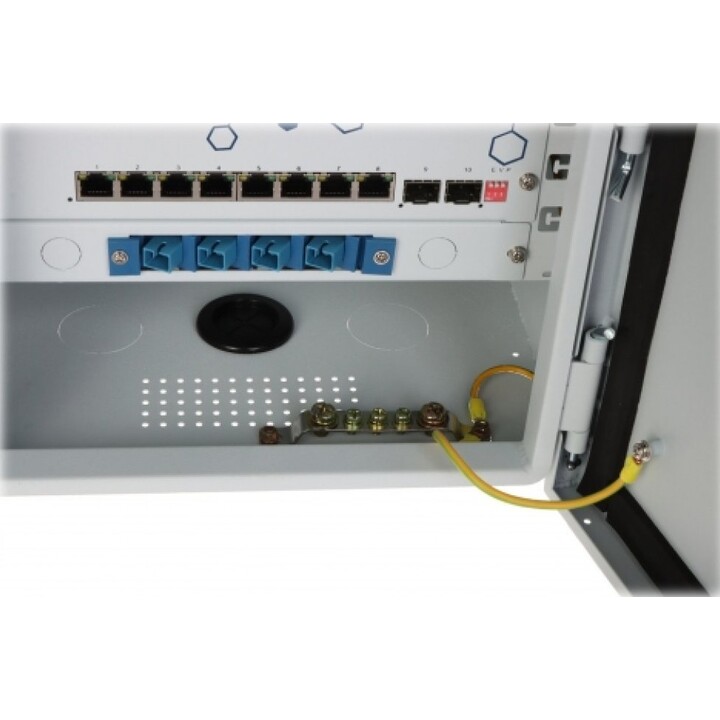

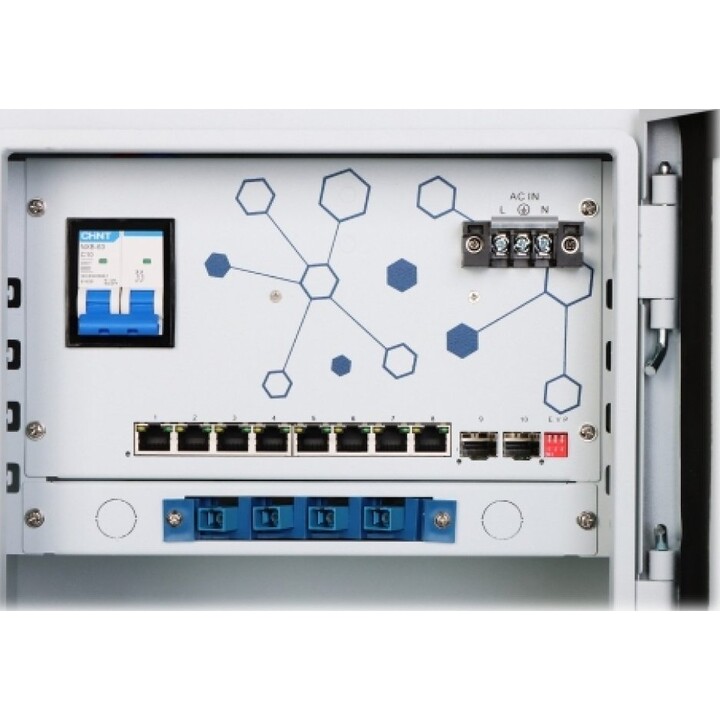

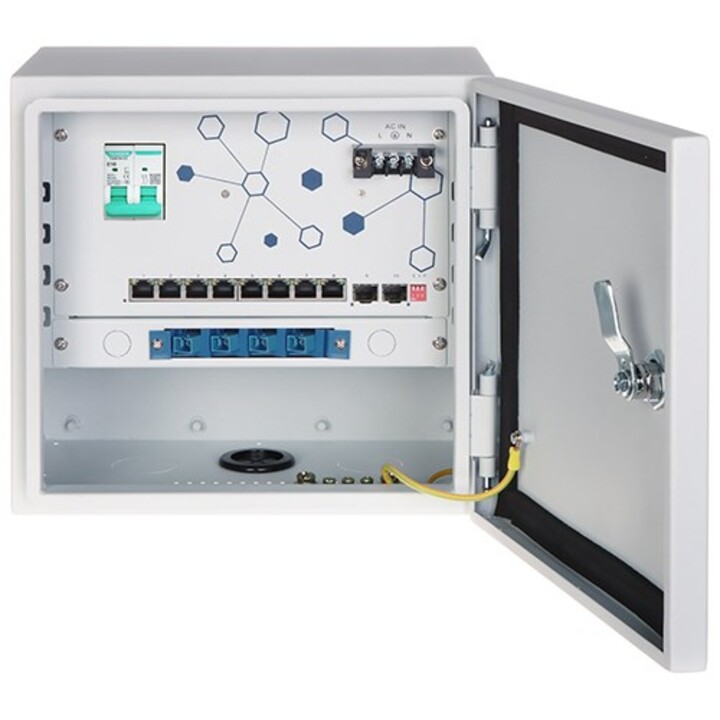

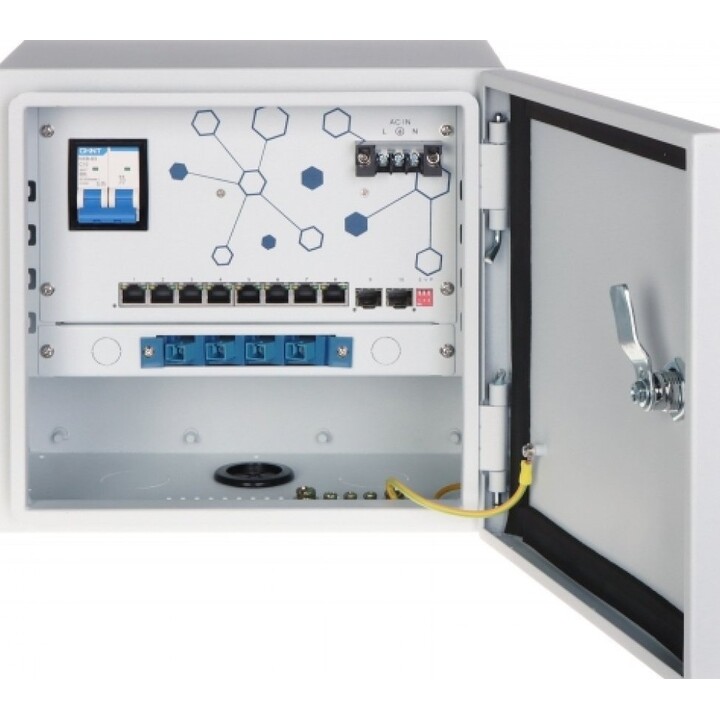

The Expert-PoE/OTD-82GSFP is a ruggedized external camera distribution point designed for IP surveillance systems. It features 8 Gigabit PoE+ ports delivering up to 30W per port, compliant with IEEE 802.3af/at standards, and 2 SFP uplink slots for long-distance fiber connections. With a total PoE budget of 120W, it can power multiple PTZ cameras or high-power devices in harsh outdoor environments.

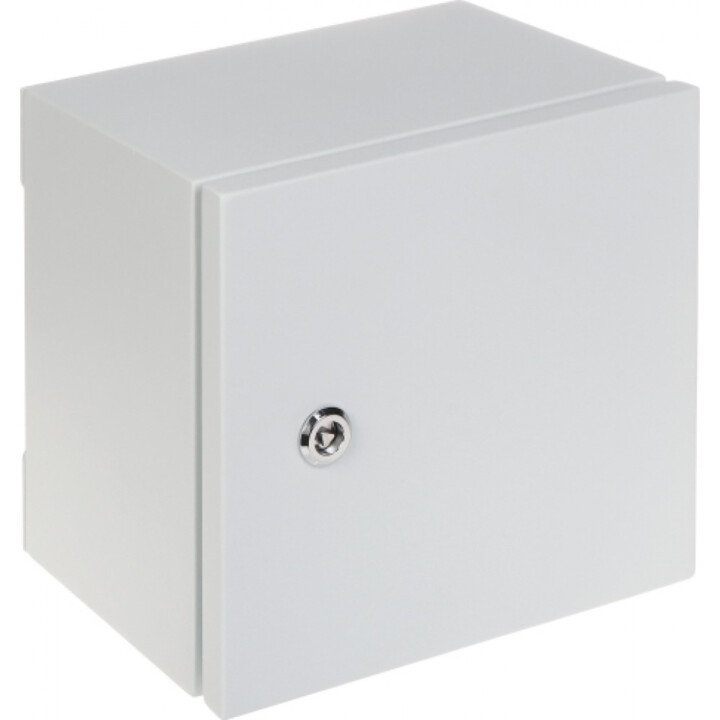

Built with a robust metal housing and IP30 rating, this distribution point operates reliably in extreme temperatures from -40°C to 75°C. It supports plug-and-play installation with no configuration needed, making it ideal for rapid deployment in security networks. The unit also features surge protection on all ports to safeguard connected equipment.
| Ports | 8 x 10/100/1000 PoE+ (RJ45), 2 x 1000 SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 120W |
| Max Power per Port | 30W |
| Enclosure | Metal, IP30 |
| Operating Temperature | -40°C to 75°C |
| Surge Protection | 6kV on PoE ports |
| Power Input | 48-57V DC (terminal block) |
| Dimensions | 200 x 150 x 45 mm |
| Weight | 1.2 kg |
-
Brand
-
ReferenceEXPERT-POE/OTD-82GSFP
-
In stock3 Items
-
ConditionNew
-
EAN135902887085970
-
MPNEXPERT-POE/OTD-82GSFP
| Brand | Dahua |
|---|---|
| Country | China |
| Address of origin | A10, Bin’An Road 1199, Binjiang District, Hangzhou, Zhejiang Province, P.R |
| EU responsible person | Dahua Technology GmbH |
| Address | In der Steele 35, Düsseldorf, Germany, 40599 |
| [email protected] | |
| Phone | 492119759870 |
