Axis W800 System Controller 01964-002: Body-Worn Camera Controller Supports 5 Docking Stations/

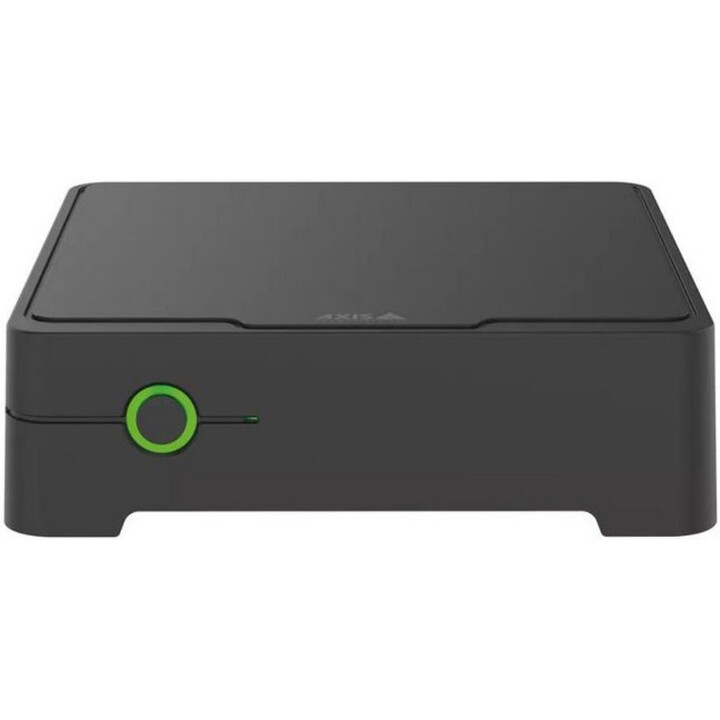

AXIS W800 System Controller (01964-002)

The AXIS W800 System Controller is the central integration and management hub for Axis body-worn camera solutions. Designed for high-speed, supervised video offloading, this modular controller ensures a flexible and highly scalable architecture. A single W800 unit supports up to five docking stations and 40 cameras, providing a single point of integration for evidence management systems (EMS) and video management systems (VMS). It features high-grade cybersecurity with a FIPS 140-2 certified TPM 2.0 module and an internal encrypted 480GB SSD (AES256) to ensure that sensitive video data remains protected from the moment of offload until it reaches its final destination. Its standalone design allows organizations to expand their body-worn fleet cost-effectively by adding more docking stations without needing a new controller for every station.

Technical Specifications

* **Capacity:** Supports up to 5 docking stations and 40 body-worn cameras.

* **Storage:** Internal 480 GB SSD (CJIS-compliant, AES256 encrypted).

* **Throughput:** Camera to Controller: 100 Mbps (per camera); Controller to Destination: 1 Gbps.

* **Networking:** 6 x RJ45 10BASE-T/100BASE-TX/1000BASE-T (1 uplink, 5 device network).

* **Cybersecurity:** Signed firmware, secure boot, TPM 2.0 (FIPS 140-2 level 2), brute force protection.

* **Protocols:** IPv4, IPv6, HTTPS, TLS, Bonjour, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP.

* **Operating System:** Optimized Linux-based Axis system.

* **Power:** 12 V DC input (Typical consumption: 12.25 W, Max: 16 W).

* **Part Number:** 01964-002.

* **EAN:** 7331021071810.

Dimensions and Physical

* **Dimensions:** 180 x 180 x 53 mm (7.1 x 7.1 x 2.1 in).

* **Casing:** Aluminum and plastic, IP3X-rated, Black finish.

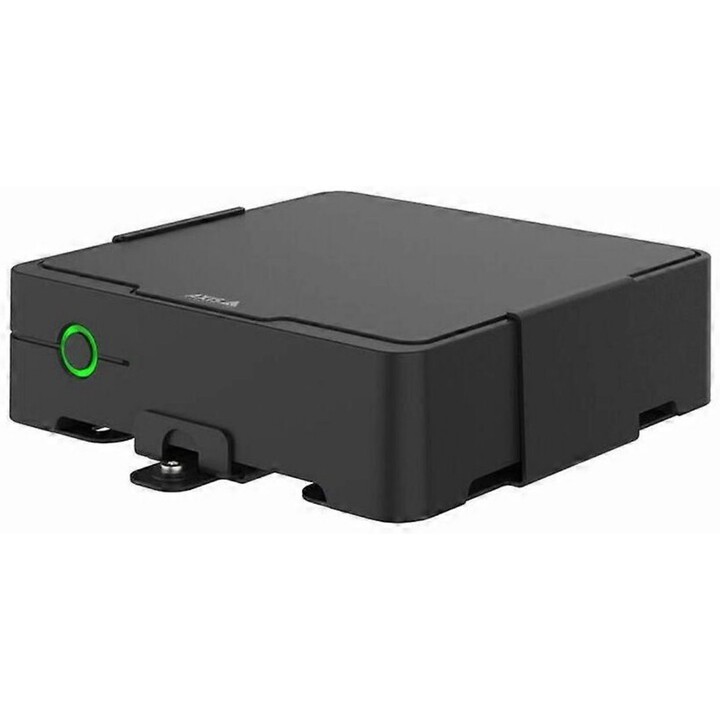

* **Mounting:** Included mounting bracket for wall or shelf installation.

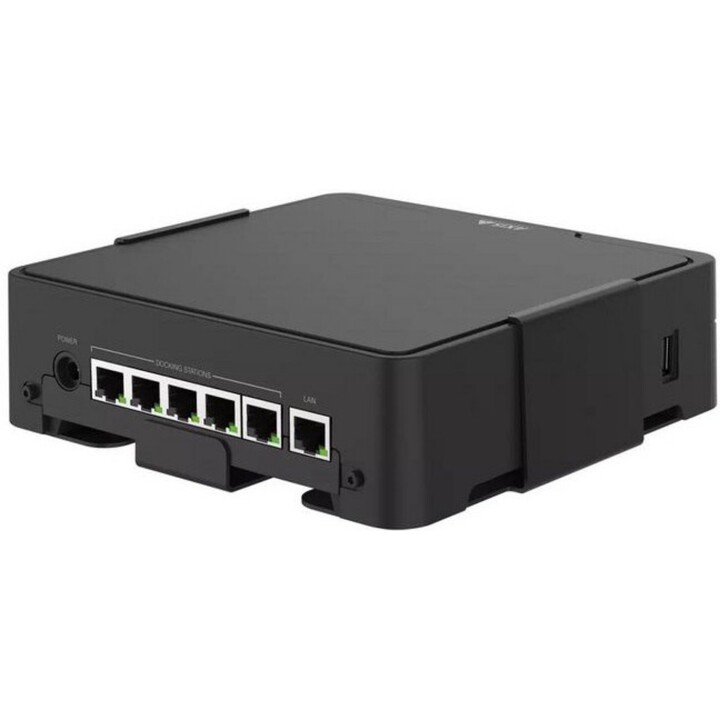

* **Connectors:** 6 x Shielded RJ45, 1 x USB 2.0, DC power jack.

* **Operational Temp:** 0 °C to 40 °C (32 °F to 104 °F).
