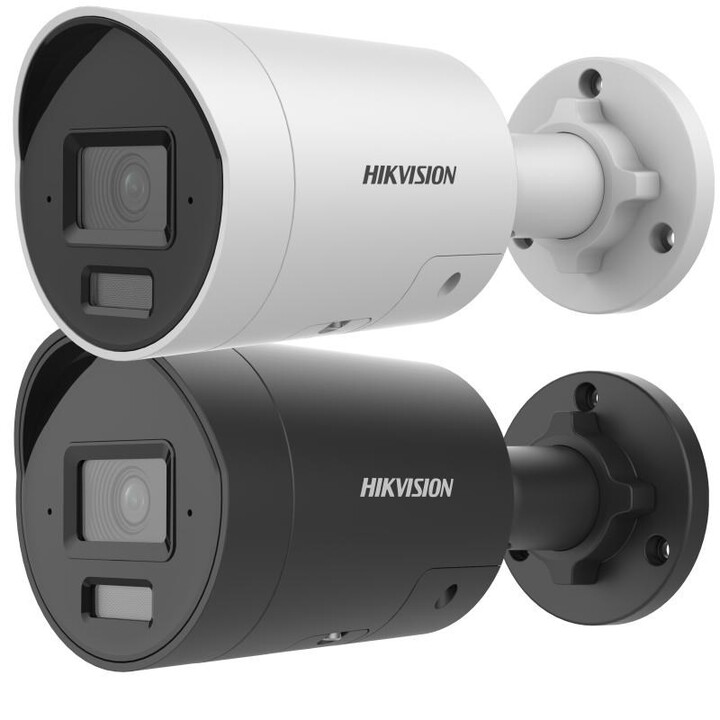

Camera DS-2CD2046G2H-I2U/SL(2.8mm)
Reference:
311327168
EAN:
6942160490359
Condition:
New
Price:
€203.56
VAT included
Without tax:
€168.24
- 4MP (2688×1520) resolution at 25fps
- 2.8mm fixed lens with 103° horizontal FOV
- AcuSense human/vehicle classification
- H.265+ compression for reduced bandwidth
- Built-in microphone for audio recording
Performance
Certification
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Number of languages
33
Infrared cut filter
Yeah
Day/Night Mode
Yeah
Support languages
Multi
Wide Dynamic Range (WDR)
Yeah
Dynamic range
120 dB
Connectivity technology
Wired
Guy
IP security camera
Supported placement
Abroad
Image sensor
Progressive scanning
Yeah
Optical sensor size
25.4 / 3 mm (1 / 3")
Number of sensors
1
Sensor type
CMOS
Video
Backlight Compensation (BLC)
Yeah
High Beam Compensation (HLC)
Yeah
Video compression formats
H.264, H.265+, H.265, M-JPEG, H.264+
Frame rate
30 pps
Smart IR
Yeah
Privacy Mask
Yeah
Bitrate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
32 Kbps - 8192 Kbps
Supported graphic formats
640 x 360, 2688 x 1520, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Region of Interest (ROI) Encoding
Yeah
Noise reduction technology
3D noise reduction
Video broadcast
Yeah
Total megapixels
4 MP
Noise reduction
Yeah
Image quality adjustment
Contrast, Sharpness, Brightness, Saturation
Maximum resolution
2688 x 1520 Pixels
Connection
Client interoperability
iVMS-4200, Hik-Connect, Hik-Central
User access level
Administrator, Operator, User
Live view
Yeah
Number of simultaneous live viewing channels
6 channels
Network standards
IEEE 802.1x, IEEE 802.3at
Number of users
32 user(s)
Ethernet interface type
Fast Ethernet
Quality of Service (QoS) support
Yeah
Ethernet
Yeah
Wifi
No
Bluetooth
No
Management Features
Web-based administration
Yeah
Behavior analysis
Intrusion detection, Line crossing detection
Restore button
Yeah
Night vision
Infrared wavelength
850 nm
Night vision distance
40 m
Night vision
Yeah
LED type
GO
Power control
Power consumption (Power over Ethernet, PoE)
16 W
DC output amperage
1 A
DC output voltage
12
Power consumption (max)
12 W
Feeding
CC, PoE
Security
Active tamper alarm
Yeah
Password reset by email
Yeah
IP Address Filter
Yeah
Beat
Yeah
Privacy Protection
Yeah
Mirror
Yeah
HTTPS encryption
Yeah
Pixel counter
Yeah
Features of the Intelligent Video Surveillance System (IVS)
Face detection
Password protection
Yeah
Motion detection in video
Yeah
Classification of targets as vehicles and people
Yeah
Flash record
Yeah
Audit log
Yeah
Digest Authentication
Yeah
Automatic Network Replenishment (ANR)
Yeah
Network Attached Storage (NAS)
Yeah
Supported security algorithms
HTTPS, TLS, EAP-MD5, EAP-LEAP, EAP-TLS
Lens system
Detection distance
63 m
Number of lenses
1
Recognition distance
12 m
Identification distance
6 m
Observation distance
25 m
Fixed focal length
2.8 mm
Maximum opening
1
Camera
Minimum lighting
0 lx
Angle of view of the lens, diagonal
120 Ω
Shutter speed
1/3 - 1/100000 s
Rotation angle
360 Ω
Tray reach
0 - 360 Ω
Angle of inclination
0 - 90 Ω
Lens angle of view, horizontal
100 Ω
Angle of view of the lens, vertical
55 Ω
Number of privacy masking zones
4
Other features
Supported browser
IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Package contents
Number of cameras
1
Design
Protection functions
Water resistant, Dust resistant
Form factor
Bullet (shape)
IP Code (International Protection)
IP67
Mounting type
Ceiling/wall
Product color
Black, White
Housing material
Metal
Audio
Audio codecs
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Signal-to-noise ratio (SNR)
52 dB
Built-in microphone
Yeah
Sampling frequencies
8 - 48 kHz
Built-in speakers
Yeah
Range of bit rates
8 - 320 Kbit/s
Technical details
Lens mounting interface
M12
Storage media
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDD
No
Integrated reading card
Yeah
Maximum memory card size
512 GB
Packaging
Package weight
840 g
Package height
117 mm
Package width
234 mm
Package depth
120 mm
Weight and dimensions
Diameter
7.44 cm
Weight
515 g
Length
176.3 mm
Sustainability
Certificates of conformity
UL, CE, RoHS, Low Voltage Directive (LVD), CB
Environmental conditions
Storage temperature range
-30 - 60 °C
Operating temperature range
-30 - 60 °C
Relative humidity range during storage
0 - 95%
Relative humidity range for operation
0 - 95%
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports
1
-
