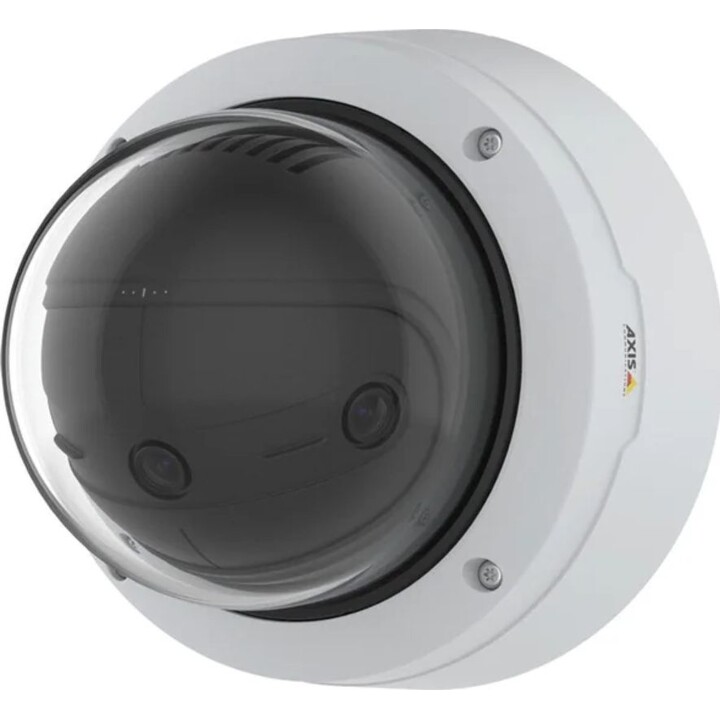

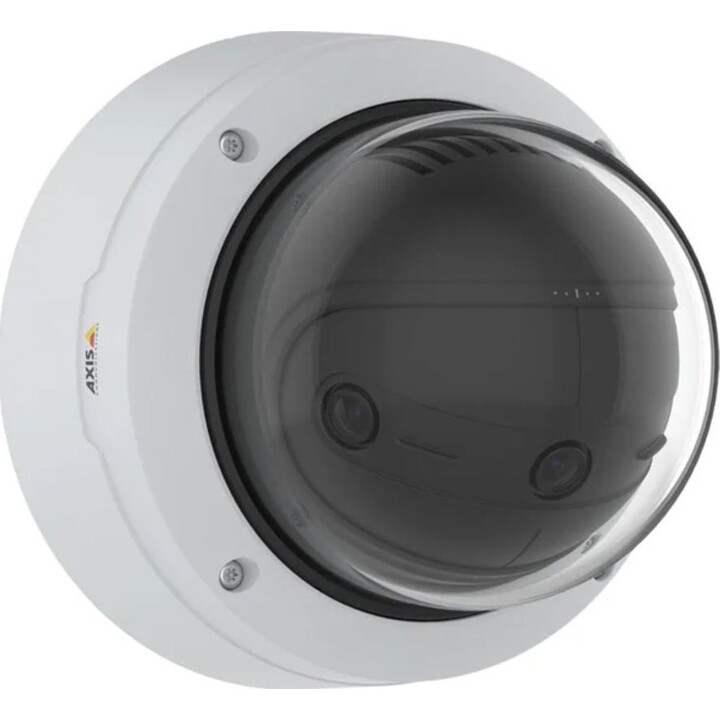

AXIS P3818-PVE Panoramic Network Camera, IP66, IP67, White

Description

Axis 02060-001 surveillance camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall

AXIS P3818-PVE offers a 180° panoramic overview of wide areas with ultra-high-resolution images and incredible detail at up to 30 frames per second. With 13 MP resolution and seamless stitching for all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. With a variety of mounting options, you can also mount two cameras back-to-back for a full 360° view with AXIS T94V01C Dual Camera MCameraThanks to end-to-edge technology, it's easy to add audio support, allowing you to listen in on transactions or incidents. Plus, built-in cybersecurity features prevent unauthorized access and protect your system.

Key product points

Built-in cybersecurity features; 180° horizontal and 90° vertical coverage; 13 MP multi-sensor camera with one IP address; Seamlessly stitched images; Audio input support

Performance

Type: IP Security Camera

Supported placement: Outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Infrared cut filter: Yes

Number of languages: 11

Supported languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Certification: EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 BA, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267

Design

Mounting type: Ceiling/wall

Product color: White

Housing material: Aluminum, Polycarbonate (PC)

IP (International Protection) Code: IP66, IP67

IK Code: IK10

Camera

Camera pan control: Yes

Camera Tilt Control: Yes

Minimum illumination: 0.05 lx

Lens viewing angle, horizontal: 180°

Lens viewing angle, vertical: 90°

Tilt angle: 0 - 50°

Tray range: -180 - 180°

Shutter speed: 1/91000 - 1/25, 1/50000 - 1/25 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Maximum opening: 2

Fixed focal length: 3.2 mm

Video

Maximum resolution: 5120 x 2560 pixels

Total megapixels: 13 MP

Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Frame rate: 30 pps

Video streaming: Yes

Noise reduction: Yes

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Audio

Audio system: 2-way

Voice codecs: G.711, G.726, OPUS

Connection

Ethernet: Yes

Ethernet interface type: Gigabit Ethernet

Network standards: IEEE 802.1x, IEEE 802.3at

Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf)

Wifi: No

Bluetooth: No

Quality of Service (QoS) support: Yes

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash Memory: 512 MB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Microphone input jack: Yes

Security

Password protection: Yes

IP Address Filter: Yes

Supported security algorithms: EAP-TLS, FIPS 140-2

HTTPS Encryption: Yes

Management Features

Web-based administration: Yes

Power control

Power: PoE

Power consumption: 11 W

Power consumption (max): 18 W

Environmental conditions

Operating temperature range: -40 - 50 °C

Storage temperature range: -40 - 65 °C

Relative humidity range for operation: 10 - 100%

Relative humidity range during storage: 5 - 95%

Weight and dimensions

Width: 206 mm

Height: 221 mm

Weight: 2.2 kg

Package contents

Number of cameras: 1
