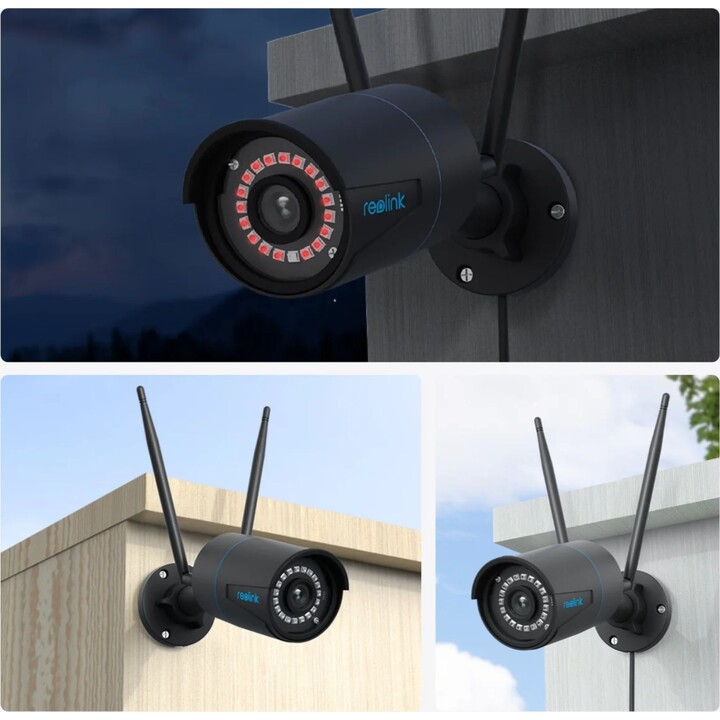

Reolink W320-B Outdoor IP Security Camera, 2560 x 1920 Pixels, Black

Description

Reolink W320-B Bullet (shape) Outdoor IP Security Camera 2560 x 1920 Pixels Wall

Reolink W320-B, IP Security Camera, Outdoor, Wireless and Wired, Google Assistant, External, Wall

Key product points

Outdoor IP Security Camera

CMOS 25.4 / 2.7 mm (1 / 2.7") 5 MP 2560 x 1920 pixels

Wireless and wired Ethernet Wifi

Night vision 30 m IR

Bullet (shape) Wall

IP67 Weatherproof

Black

415 g

Performance

Type: IP Security Camera

Supported placement: Outdoor

Connectivity Technology: Wireless and Wired

Virtual assistant: Google Assistant

Day/Night Mode: Yes

Infrared cut filter: Yes

Antenna Type: External

Number of antennas: 2

Design

Form Factor: Bullet (shape)

Mounting Type: Wall

Product color: White

IP (International Protection) Code: IP67

Weather resistant: Yes

Camera

Lens viewing angle, horizontal: 80 Ω

Lens angle of view, vertical: 48 Ω

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Sensor type: CMOS

Lens system

Number of lenses: 1

Maximum opening: 2

Fixed focal length: 4 mm

Night vision

Night vision: Yes

Night vision distance: 30 m

LED Type: IR

Number of lighting LEDs: 18

Infrared wavelength: 850nm

Video

Maximum resolution: 2560 x 1920 pixels

Total megapixels: 5 MP

Supported video formats: H.264

Video compression formats: H.264

Supported graphic formats: 2560 x 1920

Video recording: Yes

Frame rate: 20 pps

Noise reduction: Yes

Bit rate: 64 Kbps - 8192 Kbps

Audio

Built-in speakers: Yes

Audio system: 2-way

Built-in microphone: Yes

Bit rate range: 64 - 8192 Kbit/s

Connection

Ethernet: Yes

Ethernet interface type: Fast Ethernet

Network standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Supported network protocols: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Wifi: Yes

Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Bluetooth: No

Number of users: 20 user(s)

User access level: Administrator, User

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash)

Maximum memory card size: 256 GB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

DC input jack: Yes

Security

Supported security algorithms: WPA-PSK, WPA2-PSK

Intelligent Video Surveillance System (IVS) Features: Person Detection, Pet Detection, Vehicle Detection

Management Features

Restore button: Yes

Power control

Power supply: DC

Power consumption (max): 12 W

DC output voltage: 12

DC output amperage: 1 A

Environmental conditions

Operating temperature range: -10 - 55°C

Relative humidity range for operation: 10 - 90%

System Requirements

Windows operating system supported: Yes

Supported MAC operating system: Yes

Supported mobile operating systems: Android, iOS

Weight and dimensions

Height: 186 mm

Diameter: 6.7 cm

Weight: 415 g

Package contents

Number of cameras: 1

Mounting kit: Yes

Screws included: Yes

User Manual: Yes
