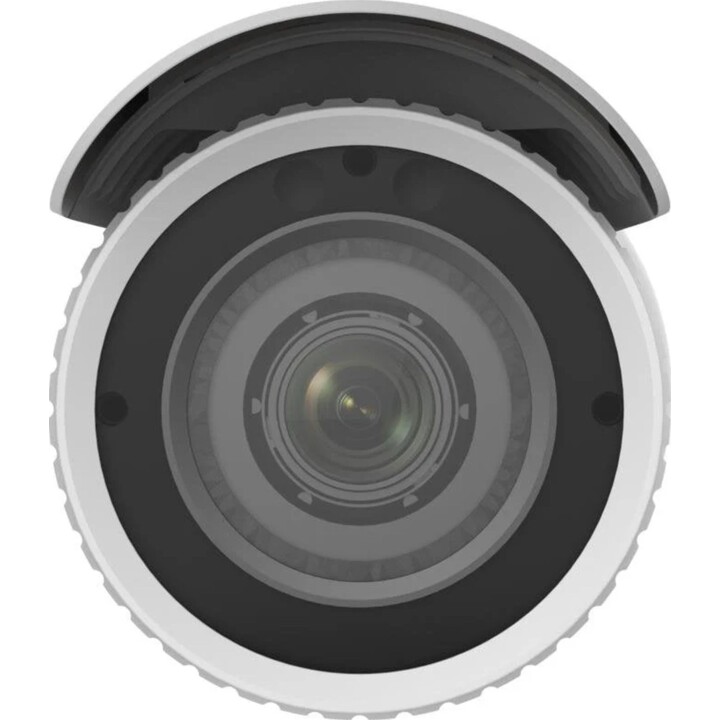

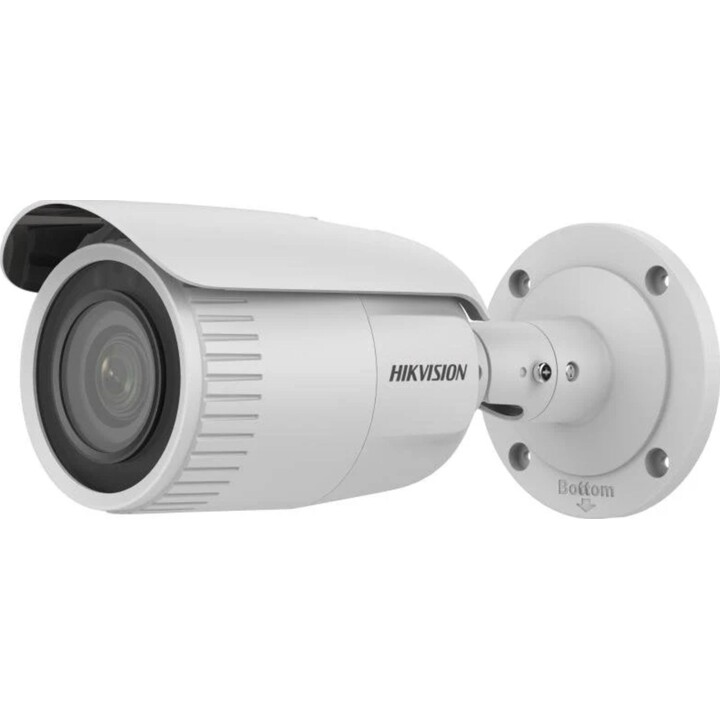

IP Camera: HIKVISION DS-2CD1643G2-IZ (2.8-12mm)

Description

Hikvision DS-2CD1643G2-IZ(2.8-12mm) Bullet (shape) IP Security Camera Indoor and outdoor 2560 x 1440 Pixels Ceiling

Security requirements vary. That's why Hikvision designs and adapts network cameras to meet diverse needs, from video surveillance to deep learning-based video content analysis.

Our network cameras are the ideal choice for hundreds of application scenarios, delivering high-quality images in a wide range of lighting conditions (while minimizing storage and bandwidth requirements) and providing data-driven situational awareness to help you make smart decisions.

Key product points

Indoor and outdoor IP security camera

CMOS 25.4 / 3 mm (1 / 3") 4 MP 2560 x 1440 pixels

Wired Ethernet

Night vision 50 m IR

Bullet (shape) Roof Water resistant, Dust resistant

IP67

White

745 g

Performance

Type: IP Security Camera

Supported placement: Indoor and outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Number of languages: 2

Support languages: English, Ukrainian

Dynamic range: 120 dB

Design

Form Factor: Bullet (shape)

Mounting Type: Ceiling

Product color: White

Protection features: Waterproof, Dustproof

IP (International Protection) Code: IP67

Camera

Minimum illumination: 0 lx

Rotation angle: 360 Ω

Lens angle of view, horizontal: 95.9 - 29.2 Ω

Lens angle of view, vertical: 50.6 - 16.4 Ω

Lens angle of view, diagonal: 114.7 - 33.5 Ω

Tilt angle: 0 - 90 Ω

Tray range: 0 - 360 Ω

Shutter speed: 1/3 - 1/100000 s

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 3 mm (1 / 3")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Number of lenses: 1

Focal length range: 2.8 - 12mm

Maximum aperture: 1.6

Night vision

Night vision: Yes

Night vision distance: 50 m

LED Type: IR

Infrared wavelength: 850nm

Video

Maximum resolution: 2560 x 1440 pixels

Total megapixels: 4 MP

Video compression formats: H.265+, H.264, H.264+, M-JPEG, H.265

Supported graphics formats: 1280 x 720 (HD 720), 2560 x 1440, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 640 x 360

Frame rate: 25 pps

Video streaming: Yes

Noise reduction technology: 3D noise reduction

Image quality adjustment: Brightness, Contrast, Sharpness, Saturation

Privacy Mask: Yes

Bit rate: 32 Kbps - 8 Mbps

Backlight Compensation (BLC): Yes

High Beam Compensation (HLC): Yes

Region of Interest (ROI) Encoding: Yes

Connection

Ethernet: Yes

Ethernet interface type: Fast Ethernet

Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Wifi: No

Bluetooth: No

Number of users: 32 user(s)

User access level: Administrator, Operator, User

Quality of Service (QoS) support: Yes

Live view: Yes

Number of simultaneous live viewing channels: 6 channels

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size: 256 GB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes

Motion detection in video: Yes

Active tamper alarm: Yes

Privacy Protection: Yes

Heartbeat: Yes

Mirror: Yes

Digital watermark: Yes

Audit log: Yes

Digest Authentication: Yes

Management Features

Web-based administration: Yes

Restore button: Yes

Power control

Power: DC, PoE

Power consumption (max): 11 W

Power consumption (Power over Ethernet, PoE): 12.9 W

DC output voltage: 12

DC output amperage: 0.9 A

Environmental conditions

Operating temperature range: -30 - 60°C

Storage temperature range: -30 - 60 °C

Relative humidity range for operation: 0 - 95%

Relative humidity range during storage: 0 - 95%

Weight and dimensions

Diameter: 10.5 cm

Length: 244.4 mm

Weight: 745 g

Packaging

Package width: 315 mm

Package depth: 137 mm

Package height: 141 mm

Package weight: 1.12 kg

Sustainability

Certificates of compliance: RoHS, US Federal Communications Commission (FCC), WEEE, CE, REACH

Package contents

Number of cameras: 1
