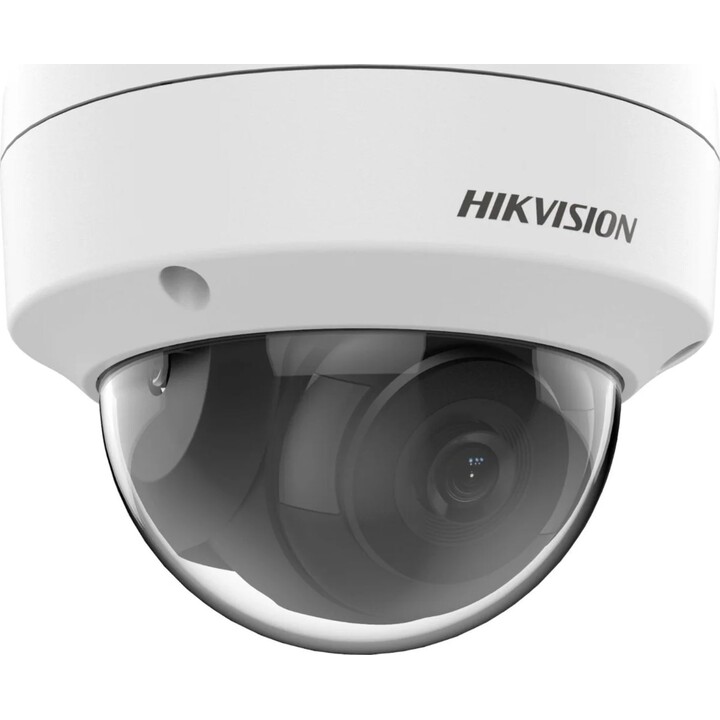

KAMERA IP HIKVISION DS-2CD2143G2-IS (2.8mm)

Description

Hikvision DS-2CD2143G2-IS Outdoor IP Security Camera Pad 2688 x 1520 Pixels Ceiling/Wall

WHAT WE OFFER

Security requirements vary. That's why Hikvision designs and adapts network cameras to meet diverse needs, from video surveillance to video content analysis based on deep learning algorithms.

Our network cameras are the ideal choice for hundreds of application scenarios, delivering high-quality images in a wide range of lighting conditions (while minimizing storage and bandwidth requirements) and providing data-driven situational awareness to help you make smart decisions.

The magic behind AcuSense technology - Deep learning algorithm

AcuSense technology is based on a deep learning algorithm developed by Hikvision's R&D team. This technology provides accurate detection in security hardware.

AcuSense technology detects targets, distinguishing between people and vehicles and other moving objects.

Focus on relevant events Intrusion of people and vehicles

Human and vehicle intrusions are the most common concerns in perimeter protection.

AcuSense technology will only trigger an alarm when the predetermined type of intrusion occurs (human or vehicle). With accurate target classification, the system can filter out up to 90% of false alarm events, greatly improving system efficiency and effectiveness, as well as reducing operating costs.

False alarm filtering

AcuSense technology accurately detects people and vehicles, while false alarms triggered by pets or other unrelated objects are greatly reduced.

Visual and audible alarm

Customizable strobe light and audio alarms, which can be triggered when an intruder is accurately detected, add an extra level of protection to AcuSense cameras.

Smart content search

Through an intelligent search system, it is possible to retrieve a specific event in real time, providing the verification process with maximum effectiveness and responsiveness.

Key product points

Outdoor IP Security Camera

CMOS 25.4 / 3 mm (1 / 3") 4 MP 2688 x 1520 pixels

Wired Ethernet

Night vision 30 m IR

Ceiling/wall pad

IP65 IK10

White

530 g

Performance

Type: IP Security Camera

Supported placement: Outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Infrared cut filter: Yes

Number of languages: 33

Certification: FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003:6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Design

Form Factor: Pad

Mounting type: Ceiling/wall

Product color: White

Housing material: Aluminum

IP (International Protection) Code: IP65

IK Code: IK10

Camera

Camera pan control: Yes

Camera tilt control: Yes

Minimum illumination: 0 lx

Rotation angle: 355 Ω

Lens angle of view, horizontal: 103 Ω

Lens angle of view, vertical: 55 Ω

Lens angle of view, diagonal: 122 Ω

Tilt angle: 0 - 75 Ω

Pan Range: 0 - 355 Ω

Shutter speed: 1/3 - 1/100000 s

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 3 mm (1 / 3")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Number of lenses: 1

Maximum aperture: 1.6

Fixed focal length: 2.8 mm

Night vision

Night vision: Yes

Night vision distance: 30 m

LED Type: IR

Infrared wavelength: 850nm

Video

Maximum resolution: 2688 x 1520 pixels

Total megapixels: 4 MP

Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics formats: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate: 30 fps

Video streaming: Yes

Noise reduction: Yes

Noise reduction technology: 3D noise reduction

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Privacy Mask: Yes

Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate: 32 Kbps - 8 Mbps

Backlight Compensation (BLC): Yes

High Beam Compensation (HLC): Yes

Region of Interest (ROI) Encoding: Yes

Audio

Audio input channels: 1.0 channels

Audio output channels: 1.0 channels

Supported audio formats: AAC, MP3, PCM

Sampling rate: 48 kHz

Voice codecs: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Connection

Ethernet: Yes

Ethernet interface type: Fast Ethernet

Network standards: IEEE 802.1x, IEEE 802.3af

Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

Wifi: No

Bluetooth: No

Number of users: 32 user(s)

Quality of Service (QoS) support: Yes

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size: 256 GB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes

Motion detection in video: Yes

IP Address Filter: Yes

HTTPS Encryption: Yes

Intelligent Video Surveillance System (IVS) Features: Face Detection

Anti-flicker: Yes

Heartbeat: Yes

Mirror: Yes

Management Features

Web-based administration: Yes

Web browser: Yes

Restore button: Yes

Behavioral Analysis: Intrusion Detection, Line Crossing Detection

Power control

Power: DC, PoE

Power consumption (max): 5 W

Power consumption (Power over Ethernet, PoE): 6.5 W

DC output voltage: 12

DC output amperage: 0.4 A

Environmental conditions

Operating temperature range: -30 - 60°C

Storage temperature range: -30 - 60 °C

Relative humidity range for operation: 0 - 95%

Relative humidity range during storage: 0 - 95%

Weight and dimensions

Height: 84.7 mm

Diameter: 11.1 cm

Weight: 530 g

Packaging

Package width: 134 mm

Package depth: 134 mm

Package height: 108 mm

Package weight: 720 g

Sustainability

Certificates of conformity: REACH, RoHS

Package contents

Number of cameras: 1
