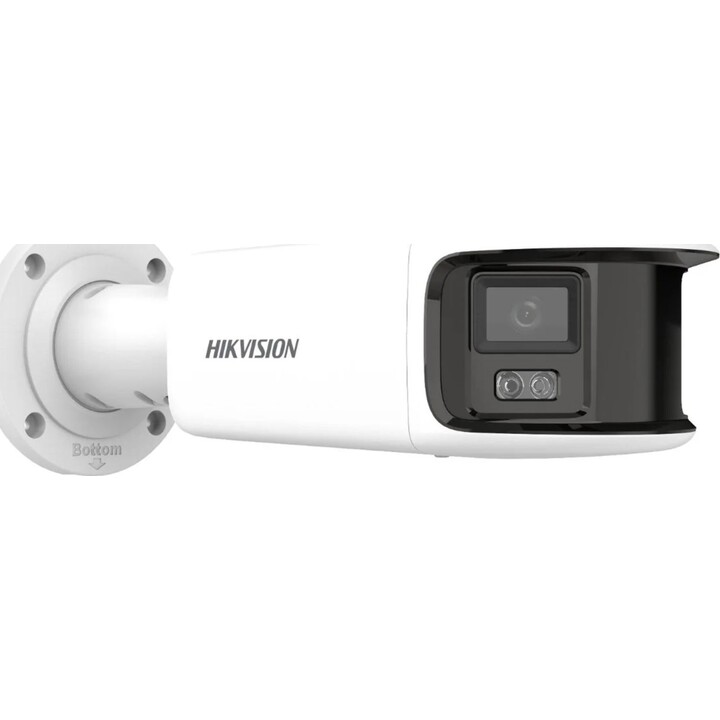

Hikvision IP CAMERA DS-2CD2T87G2P-LSU/SL (4MM) (C)

Description

Hikvision DS-2CD2T87G2P-LSU/SL(4MM)(C) Bullet (Shape) IP Security Camera Outdoor 5120 x 1440 Pixels Wall Surveillance Camera

Hikvision DS-2CD2T87G2P-LSU/SL(4MM)(C), IP Security Camera, Outdoor, Wired, Multi, 130 dB, FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:...

Key product points

Outdoor IP Security Camera

CMOS 25,4 / 1,8 mm (1 / 1.8") 8 MP 5120 x 1440 Pixeles

Almbrico Ethernet

Night vision 40 m

Bullet (shape) Wall Waterproof

IP67 Weatherproof

White

1,42 kg

Performance

Type: IP Security Camera

Supported placement: Outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Entry/exit alarm: Yes

Integrated light: Yes

Number of languages: 33

Support languages: Multi

Dynamic range: 130 dB

Certification: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Design

Form Factor: Bullet (shape)

Mounting Type: Wall

Product color: White

Housing material: Metal

Protective features: Water resistant

IP (International Protection) Code: IP67

Weatherproof: Yes

Camera

Minimum illumination: 0 lx

Rotation angle: 360 Ω

Lens viewing angle, horizontal: 180 Ω

Lens angle of view, vertical: 81 Ω

Tilt angle: 0 - 90 Ω

Pan Range: 0 - 355 Ω

Shutter speed: 1/3 - 1/100000 s

Image sensor

Number of sensors: 2

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Number of lenses: 1

Detection distance: 77 m

Observation distance: 30 m

Recognition distance: 15 m

Fixed focus: Yes

Maximum opening: 1

Identification distance: 7 m

Fixed focal length: 2.8 mm

Night vision

Night vision: Yes

Night vision distance: 40 m

Infrared wavelength: 850 nm

Video

Maximum resolution: 5120 x 1440 pixels

Total megapixels: 8 MP

Video compression formats: H.264, H.264+, H.265, H.265+

Frame rate: 20 pps

Video streaming: Yes

Noise reduction: Yes

Noise reduction technology: 3D noise reduction

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Control de tasa de bits: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate: 32 Kbps - 16 Mbps

Backlight Compensation (BLC): Yes

High Beam Compensation (HLC): Yes

Region of Interest (ROI) Encoding: Yes

Audio

Built-in speakers: Yes

Audio input channels: 1.0 channels

Audio output channels: 1.0 channels

Supported audio formats: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Signal-to-noise ratio (SNR): 52 dB

Built-in microphone: Yes

Bit rate range: 8 - 320 Kbit/s

Sampling frequencies: 8 - 48 kHz

Connection

Ethernet: Si

Ethernet interface type: Fast Ethernet

Protocolos de red compatibles: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets

Wifi: No

Bluetooth: No

Number of users: 32 user(s)

User access level: Administrator, Operator, User

Quality of Service (QoS) support: Yes

Client Interoperability: iVMS-4200, Hik-Connect, Hik-Central

Live view: Yes

Number of simultaneous live viewing channels: 6 channels

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size: 256 GB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Alarm input channels: 1

Alarm output channels: 1

Password protection: Yes

Motion detection in video: Yes

IP Address Filter: Yes

Supported security algorithms: EAP-MD5

HTTPS Encryption: Yes

Antiparpadeo: Yes

Heartbeat: Yes

Digital watermark: Yes

Password reset by email: Yes

Automatic Network Replenishment (ANR): Yes

Management Features

Web-based administration: Yes

Restore button: Yes

Behavioral Analysis: Intrusion Detection, Line Crossing Detection, Region Entry Detection, Region Exiting Detection

Power control

Power supply: DC, PoE

Power consumption (max): 9.5 W

Power consumption (Power over Ethernet, PoE): 10.5 W

DC output voltage: 12

DC output amperage: 0.79 A

Environmental conditions

Operating temperature range: -30 - 60 °C

Storage temperature range: -30 - 60 °C

Relative humidity range for operation: 0 - 95%

Relative humidity range during storage: 0 - 95%

Weight and dimensions

Ancho: 118,6 mm

Depth: 305.4 mm

Height: 105.1 mm

Weight: 1.42 kg

Packaging

Package width: 405 mm

Package depth: 190 mm

Package height: 180 mm

Package weight: 2.23 kg

Package contents

Number of cameras: 1

Technical details

Lens mount interface: M12

Other features

Input/Output (I/O) Ports: 1x line in, 1x line out
