dbx 286s microphone preamp
- Brand: dbx
- Reference: 019-07-251
- Product type: microphone
- EAN: 0691991401237
- Official dbx product, reference 019-07-251

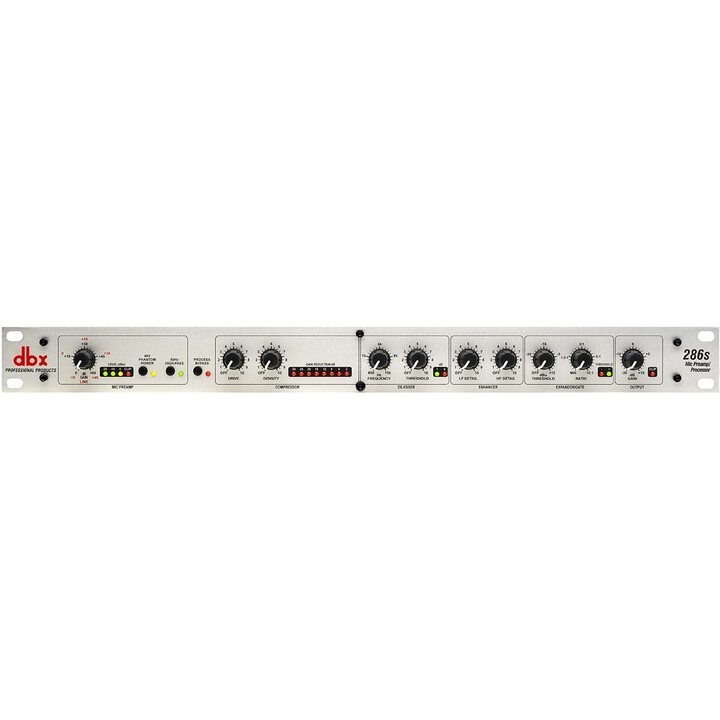

dbx 286s microphone preamp
The dbx 286s is a versatile channel strip designed for both studio recording and live broadcast. It combines a high-quality microphone preamp with essential dynamics processing, including a compressor, de-esser, enhancer, and noise gate. The preamp features +48V phantom power, a -20dB pad, and a 80Hz high-pass filter, ensuring clean and flexible signal conditioning.
With the dbx 286s, you can shape your sound using the 3-band EQ with sweepable midrange, while the compressor offers classic OverEasy® knee for transparent gain reduction. The de-esser targets sibilance, and the enhancer adds presence. The noise gate helps eliminate background noise. All controls are intuitive, making it a go-to tool for vocal processing.
| Type | Channel Strip (Preamp + Dynamics) |
| Preamp Gain | +60 dB |
| Phantom Power | +48V |
| Pad | -20 dB |
| High-Pass Filter | 80 Hz |
| Compressor | OverEasy® knee, Ratio 1:1 to ∞:1 |
| EQ | 3-band: Low ±12 dB @ 80 Hz, Mid ±12 dB (sweepable 100 Hz-8 kHz), High ±12 dB @ 12 kHz |
| De-esser | Frequency 800 Hz-8 kHz, Threshold -40 to +20 dB |
| Noise Gate | Threshold -60 to 0 dB, Release 50 ms-2 s |
| Inputs | XLR (mic), 1/4" TRS (line) |
| Outputs | XLR (balanced), 1/4" TRS (unbalanced) |
| Frequency Response | 20 Hz - 20 kHz (±0.5 dB) |
| Dynamic Range | >110 dB |
| THD+N | <0.005% |
| Power | External 24V AC adapter |
| Brand | dbx |
|---|---|
| Country | USA |
| Address of origin | Harman International (Samsung), 8500 Balboa Boulevard, Northridge, CA 91329, USA |
