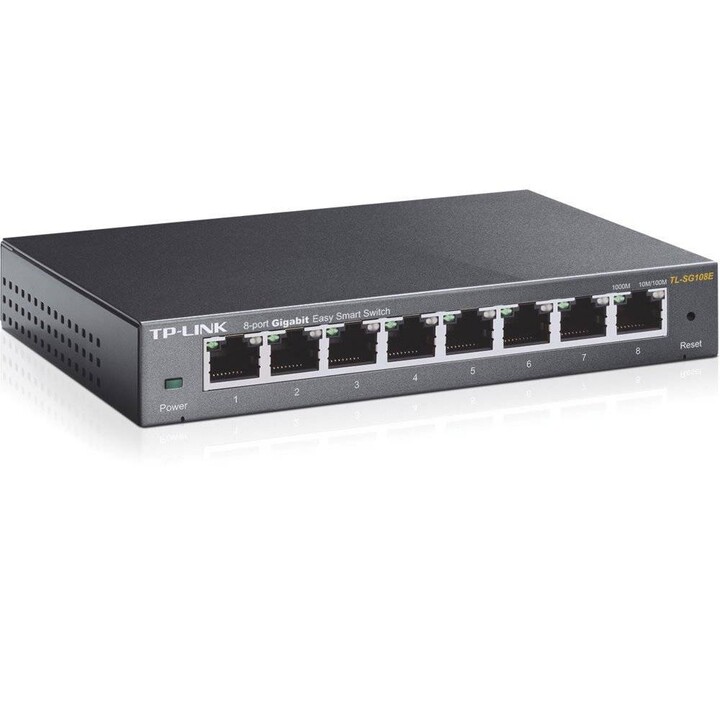

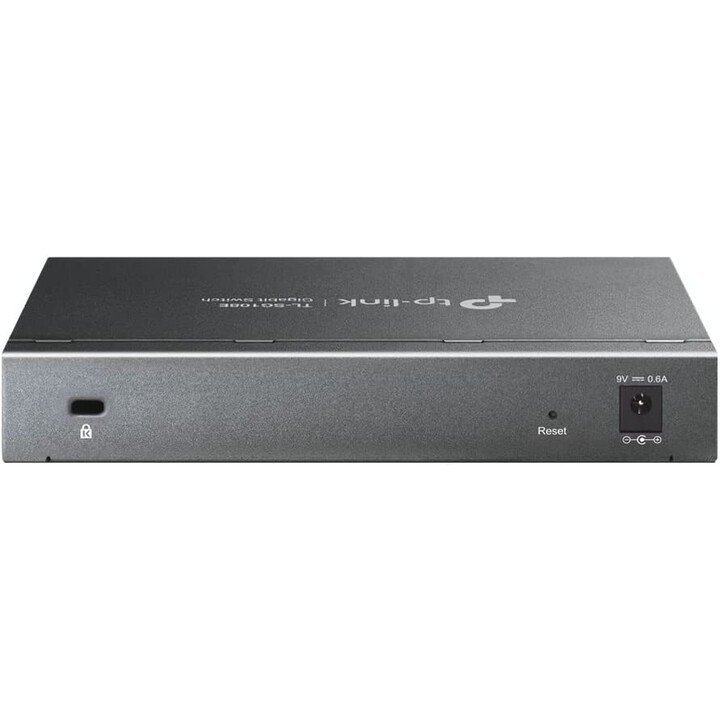

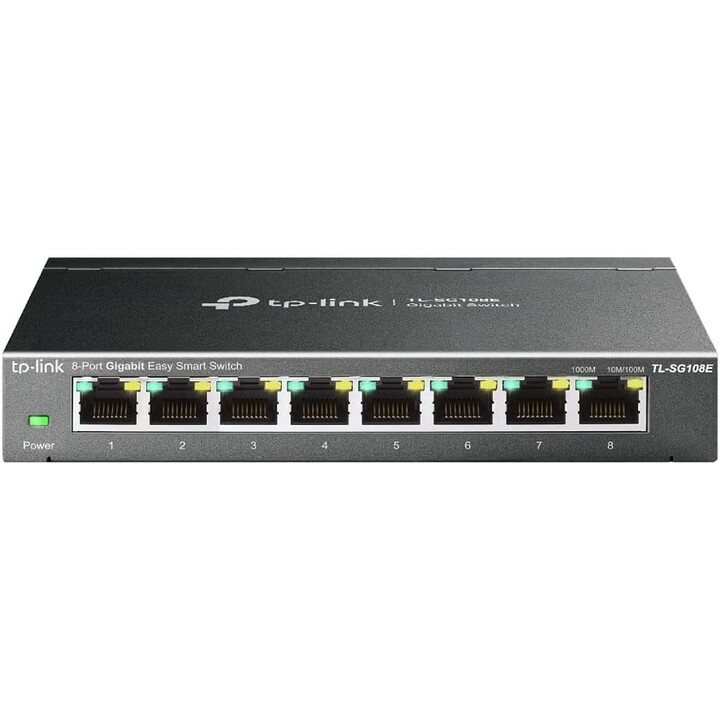

TP-Link TL-SG108E Black

What is this product for

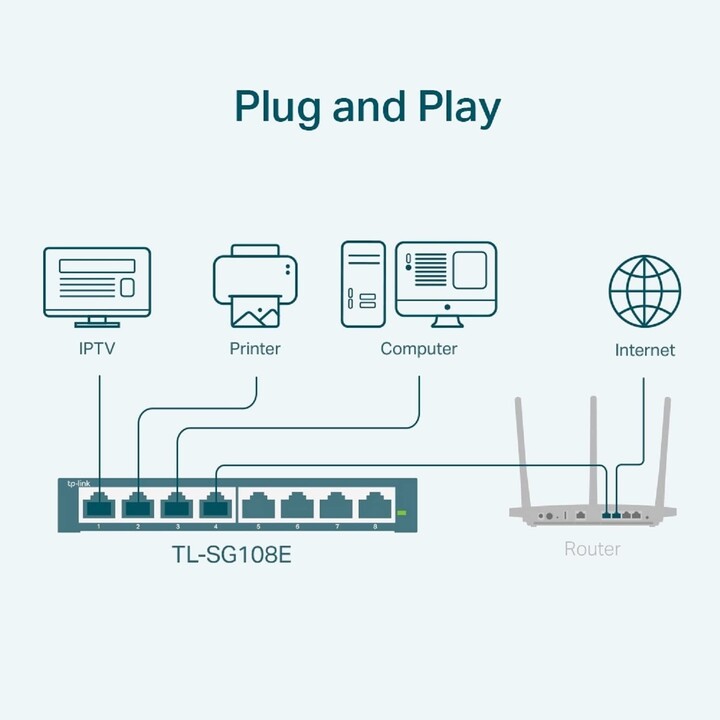

The TL-SG108E Easy Smart 8-Port Gigabit Switch is an ideal upgrade to an unmanaged switch, designed for small and medium-sized businesses that require simple-managed networking. Network administrators can monitor traffic through port mirroring, loop prevention, and with its cable diagnostic capabilities. To optimize traffic on your business network, the TL-SG108E offers port and tag-based QoS to keep latency-sensitive traffic smooth and jitter-free. Additionally, its port and / or tag-based MTU VLAN support can enhance security and meet network segmentation requirements. Moreover, with its innovative energy efficiency technology, the TL-SG108E can save up to 80% of energy consumption, which is an environmentally friendly solution for your business network.

Technical specifications

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

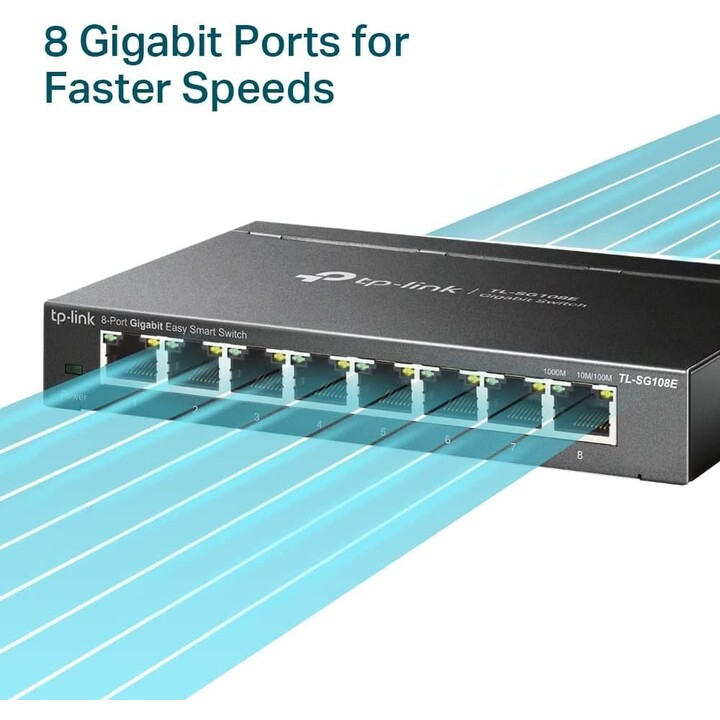

• Interfaces: 8 10/100 / 1000Mbps RJ45 ports
• AUTO Negotiation / AUTO MDI / MDIX
• Interface: 8 10/100 / 1000Mbps RJ45 Ports
• AUTO Negotiation / AUTO MDI / MDIX
• Network Media: 10BASE-T: Category 3, 4, 5 UTP Cable (100m maximum)
• EIA / TIA-568 100O STP (maximum of 100m)
• 100BASE-TX: Category 5, 5e UTP cable (100m maximum)
• EIA / TIA-568 100O STP (maximum of 100m)
• 1000BASE-T: Category 5, 5e, 6 or higher UTP cable (100m maximum)
• EIA / TIA-568 100O STP (maximum of 100m)

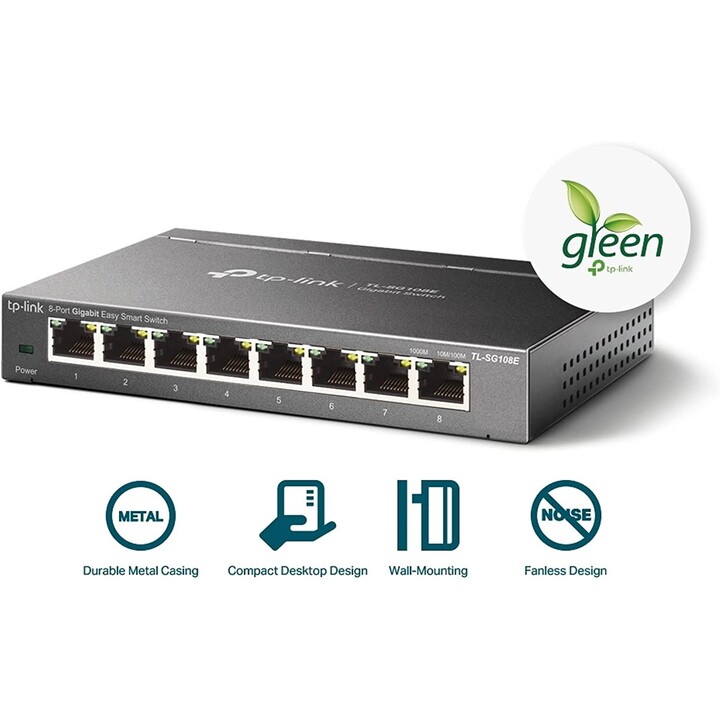

• Fan Quantity: No fan
• Power Supply: 100-240VAC, 50 / 60Hz
• Dimensions: 158 * 101 * 25mm
• Power Consumption: Maximum: 5.46W (220V / 50Hz)

• PERFORMANCE

• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 2Mb
• Jumbo Frame: 16KB

• SOFTWARE FEATURES

• Quality of Service: Supports port-based priority and 802.1p
• Supports 4 priority queues
• Traffic limiter
• Storm Control
• L2 Features: IGMP Snooping
• Port aggregation
• Port Mirroring
• Cable Diagnostics
• Loop prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4,000 VLANs)
• VLAN MTU / Port / Tag
• Transmission Method: Store-And-Forward

• OTHERS

• Certifications: FCC, CE, RoHS
• Package Contents: TL-SG108E
• Power cord
• Installation guide
• Resource CD
• Rubber Bases
• System requirements: Microsoft Windows XP, Vista Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.
• Environmental Factors: Operating Temperature: 0° ~ 40° (32° ~ 104°)
• Storage Temperature: -40° ~ 70° (-40° ~ 158°)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
