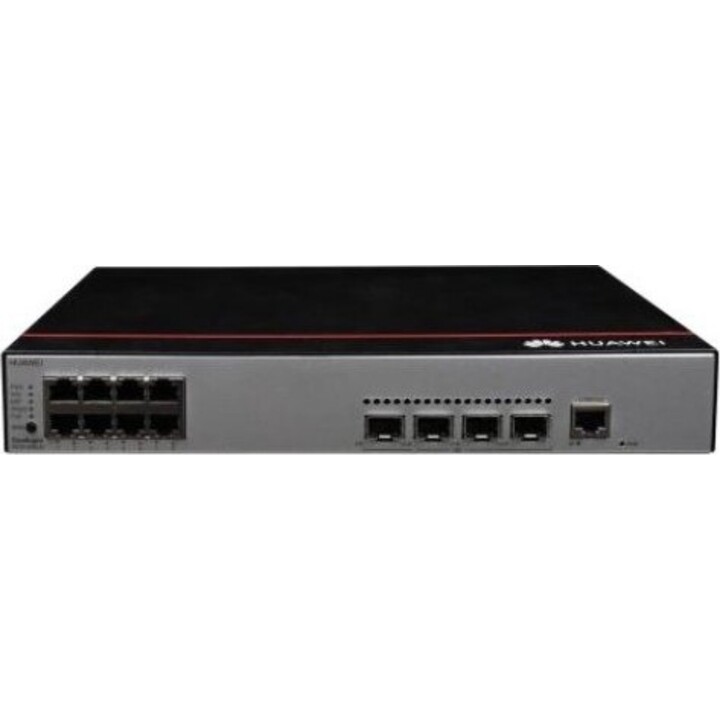

Huawei S5735-L8P4S-A1 8 Port Gigabit PoE+ Managed Switch with 4 SFP Slots
Huawei S5735-L8P4S-A1 8 Port Gigabit PoE+ Managed Switch with 4 SFP Slots
The Huawei S5735-L8P4S-A1 is a compact managed switch designed for enterprise access and small-to-medium business networks. It features 8 Gigabit PoE+ ports delivering up to 30W per port with a total PoE budget of 240W, ideal for powering IP cameras, wireless access points, and VoIP phones. The switch also includes 4 SFP slots for fiber uplinks, providing flexible connectivity options.
With a switching capacity of 56 Gbps and support for layer 2+ features such as VLAN, STP, and link aggregation, the S5735-L8P4S-A1 ensures reliable and efficient network performance. Its fanless design enables silent operation, making it suitable for noise-sensitive environments like offices and classrooms. The switch is managed via CLI, web GUI, or SNMP, offering easy deployment and maintenance.
| Ports | 8 x 10/100/1000BASE-T PoE+ |
| SFP Slots | 4 x 1000BASE-X |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 240W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 16K |
| VLAN Features | 4K VLANs, QinQ, GVRP |
| Management | CLI, Web, SNMP v1/v2c/v3 |
| Cooling | Fanless |
| Operating Temperature | 0°C to 45°C |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (W x D x H) | 250 x 180 x 43.6 mm |
| Weight | 1.5 kg |
| Brand | HUAWEI |
|---|---|
| Country | China |
| Address of origin | G1, Huawei Industrial Base, Bantian, Distrito Longgang, Shenzhen 518129 |
| EU responsible person | Huawei Technologies Co., Ltd. |
| Address | Huawei Technologies Düsseldorf GmbH, Hansaallee 205, Düsseldorf, Germany, 40549 |
| [email protected] | |
| Phone | 4921197519400 |
