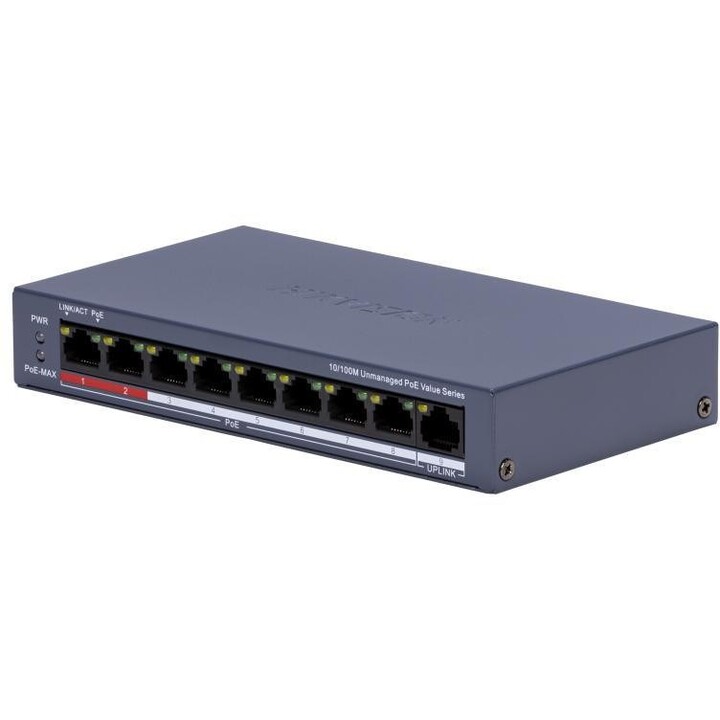

Hikvision DS-3E0109P-E/M(C) Switch
- 8 PoE ports (802.3af/at) with 120W total budget
- 10/100Mbps Ethernet, auto-negotiation
- Fanless design for silent operation
- Metal housing, wall-mountable
- Plug-and-play, no configuration needed
Hikvision DS-3E0109P-E/M(C) Switch
The Hikvision DS-3E0109P-E/M(C) is a managed 8-port PoE switch designed for small to medium surveillance systems. It provides 8 PoE ports (802.3af/at) with a total power budget of 120W, supporting IP cameras, access points, and other PoE devices. The switch features a fanless design for silent operation and a durable metal housing suitable for desktop or wall-mount installation.
With plug-and-play functionality, the DS-3E0109P-E/M(C) requires no configuration, making it ideal for quick deployment. It supports 10/100Mbps speeds and includes features like IEEE 802.3x flow control and store-and-forward switching. The switch is compliant with IEEE 802.3af/at standards, ensuring compatibility with a wide range of PoE devices.
| Ports | 8 PoE ports (10/100Mbps) + 1 uplink port |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 120W |
| Switching Capacity | 1.8 Gbps |
| Forwarding Rate | 1.34 Mpps |
| MAC Address Table | 1K |
| Operating Temperature | 0°C to 40°C |
| Power Supply | External adapter (48V DC) |
| Housing | Metal |
| Dimensions | 200 x 120 x 44 mm |
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
