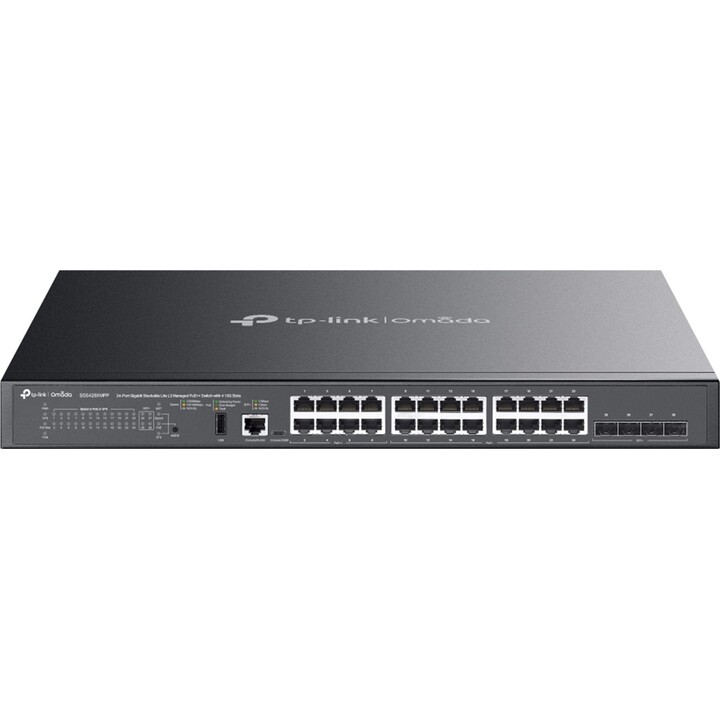

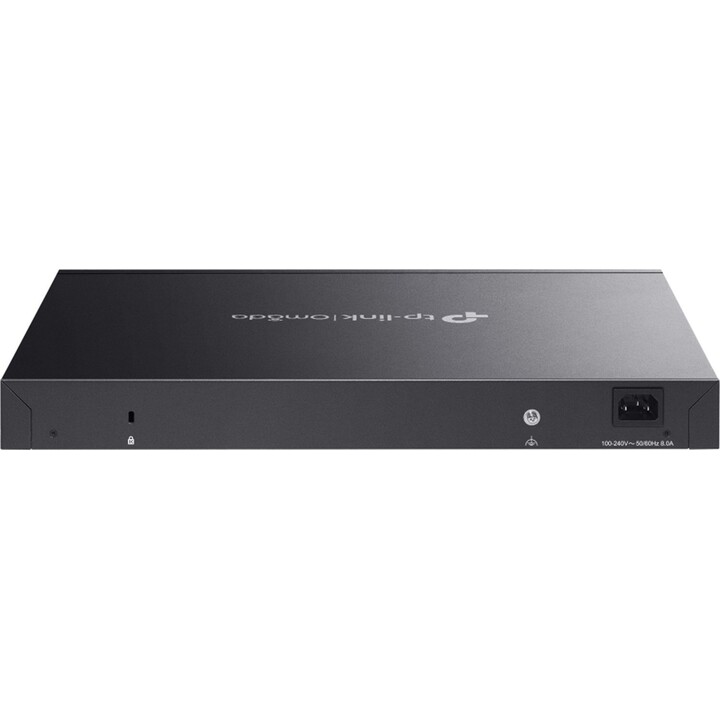

TP-Link Omada SG5428XMPP - 24-port stack. Lite L3 mgd. 10G PoE++ Switch

Main technical features:

• 24 Gigabit RJ45 ports (8 PoE++ ports with up to 90 W/port, 16 PoE+ ports up to 30 W/port).

• 4 SFP+ slots (1/10 Gbps) for uplinks and/or stacking

• Total PoE budget: 500 W

• Physically stackable: up to 4 switches via SFP+ (stacking bandwidth up to 80 Gbps)

• Switching capacity: 128 Gbps; forwarding: 95.2 Mpps

• MAC table: 16,000 entries; buffer: 12 Mbit

• Dual-core 1.2 GHz ARM processor; 2 GB DDR4 RAM

• Management: Omada SDN (cloud, local, standalone), CLI, Web, SNMP v1/v2c/v3

• Console: RJ45 and USB-C; 1 x USB 2.0 for backup or upgrades

Networking highlights:

• IPv4/IPv6 static routing, OSPF v2/v3, RIP v1/v2/NG

• Advanced DHCP server (up to 8,000 leases)

• Dual Image and perpetual PoE (maintains power on reboot)

• VLANs, LACP, Port Mirroring, Jumbo Frames, sFlow, advanced ACLs, DoS protection, IP-MAC Binding, DHCP Snooping, ARP/ND Inspection, Source Guard

• 8-Queue Quality of Service (QoS), Voice VLAN, Bandwidth Limiting, Storm Control

Recommended applications:

• Access networks with high density of Wi-Fi 6/6E APs, cameras, VoIP, IoT sensors.

• Scenarios where high PoE power, redundancy, centralised management and flexible growth with physical stacking and 10G uplinks are required.
