Switch 10x GE IGU-1071 8x 1GbE.2x 2.5GbE SFP sw

Product Description

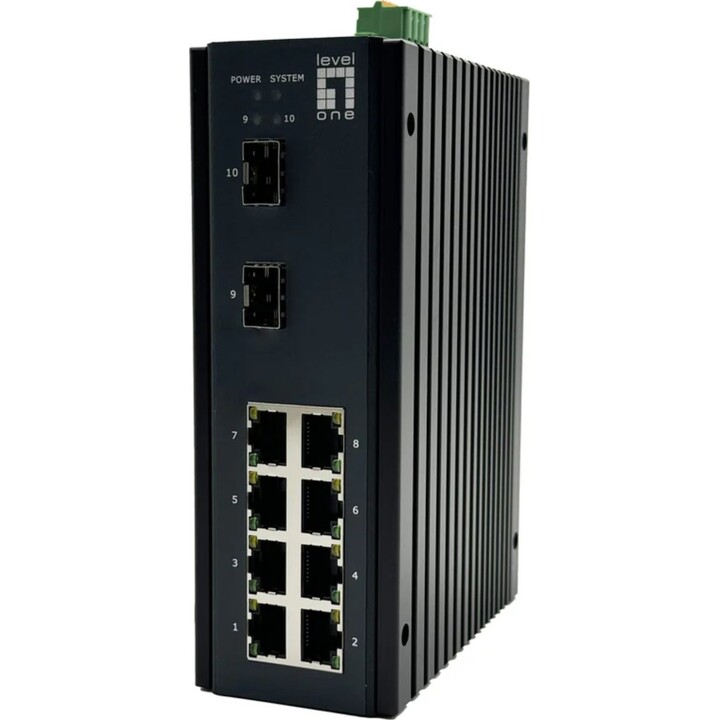

LevelOne IGU-1071 Managed L2+ Gigabit Ethernet Switch (10/100/1000) Black

LevelOne IGU-1071, Managed, L2+, Gigabit Ethernet (10/100/1000)

Key Product Features

Web-based L2+ management

Quality of Service (QoS) support and CLI configuration

Number of basic RJ-45 Ethernet switching ports: 8 Console port: RJ-45

Supports 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

MAC address table: 16,000 entries Switching capacity: 26 Gbps

Access Control List (ACL)

Access Control List (ACL) support

Management Features

Switch type: Managed

Switching layer: L2+

Quality of Service (QoS) support: Yes

Web-based management: Yes

ARP inspection: Yes

CLI configuration: Yes

System event log: Yes

Ports and Interfaces

Number of basic RJ-45 Ethernet switching ports: 8

Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports: 8

Number of SFP module slots: 2

Console port: RJ-45

Connectivity

Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support: No

Ethernet copper wiring technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

Port mirroring: Yes

Flow control support: Yes

Link aggregation: Yes

Spanning Tree Protocol: Yes

Ethernet Ring Protection Switching (ERPS): Yes

VLAN support: Yes

Data Transmission

Switching capacity: 26 Gbps

Forwarding rate: 38.6 Mpps

MAC address table: 16,000 entries

Jumbo frame support: Yes

Jumbo frames: 10,000

Packet buffer: 12 MB

Security

DHCP features: DHCP server

Access Control List (ACL): Yes

IGMP support: Yes

Supported security algorithms: HTTPS, SSH

IP-MAC port binding: Yes

Authentication: MAC-based authentication, Port-based authentication

Authentication types: IEEE 802.1x, RADIUS

Authentication protocols

IP source guard (IPSG): Yes

Design

Product color: Black

LED indicators: Power, System

International Protection (IP) code: IP40

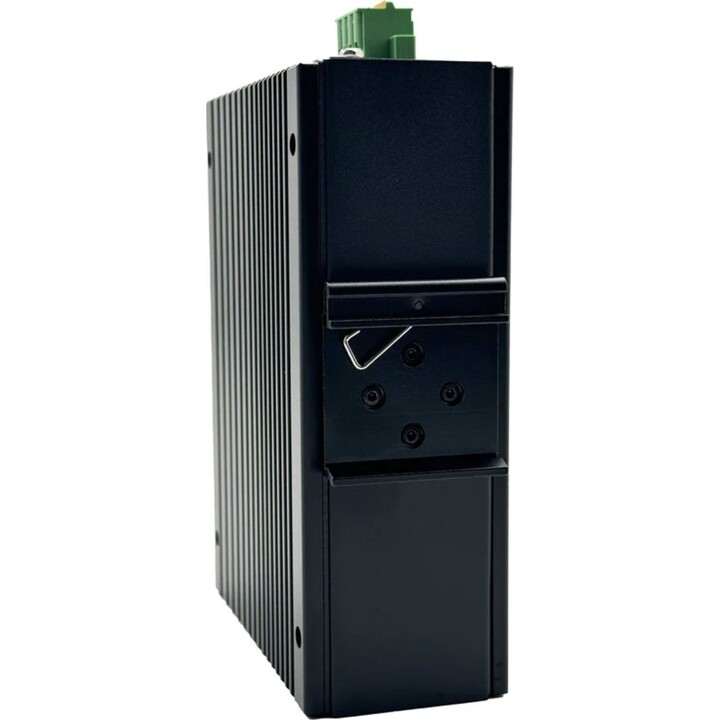

DIN rail mounting: Yes

Performance

Firmware upgrade: Yes

Fanless design: Yes

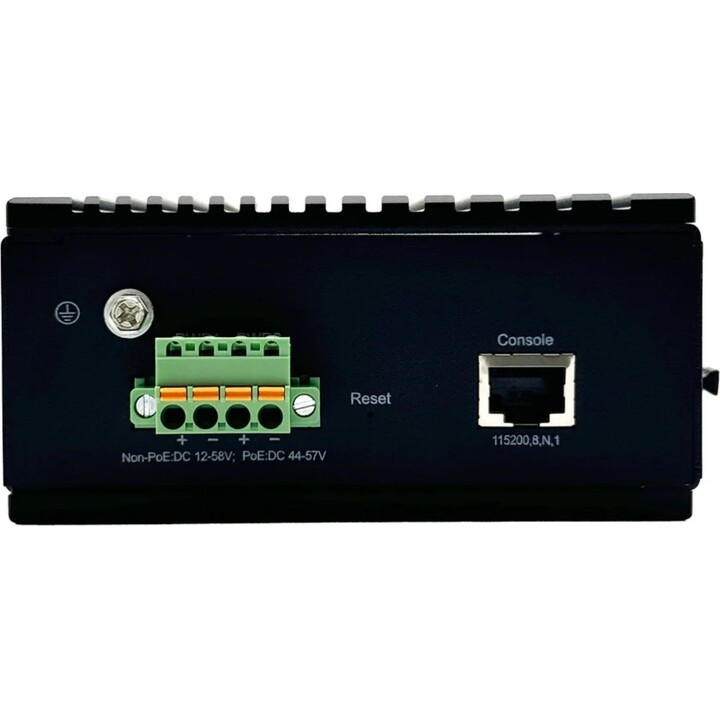

Power Management

Power source: DC

Power supply included: No

Redundant power supply (RPS) support: Yes

Number of power modules: 2

DC input voltage: 12 - 58 V

Maximum power consumption: 10 W

Overload protection: Yes

Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Other Features

Remote management: Yes

Operating Conditions

Operating temperature: -40 to 75°C

Storage temperature: -40 to 85°C

Operating relative humidity range: 10 - 90%

Storage relative humidity: 5 - 95%

Weight and Dimensions

Width: 54 mm

Depth: 115 mm

Height: 158 mm

Weight: 1.12 kg
