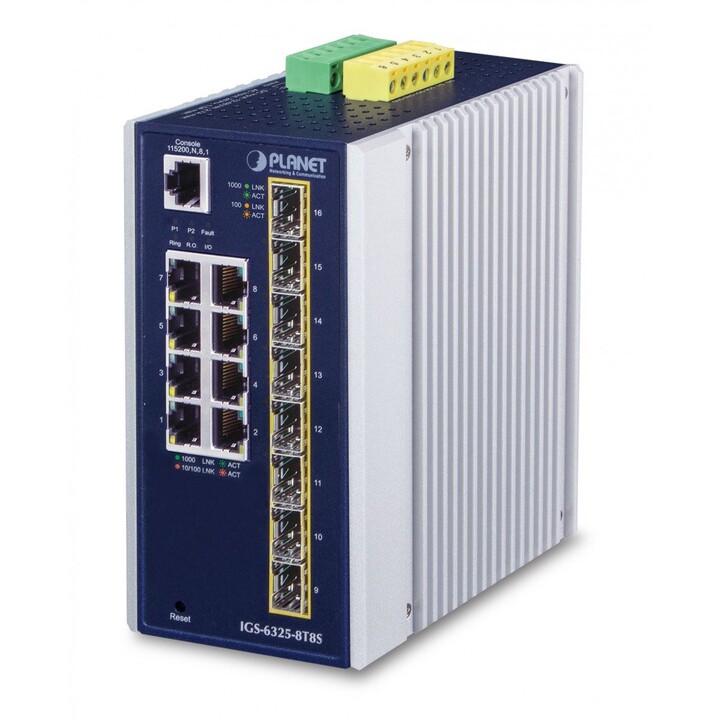

PLANET IP30 Industrial L3 8-Port Managed Gigabit Ethernet (10/100/1000) Blue, White

The PLANET IGS-6325-8T8S is a high-performance industrial Layer 3 managed switch designed for demanding network environments. Featuring 8 Gigabit Ethernet RJ-45 ports alongside 8 installed SFP modules, it offers versatile connectivity options for various network setups. This switch supports advanced networking standards including IEEE 802.1D, 802.1Q, 802.1X, and more, ensuring comprehensive VLAN support with up to 4095 VLANs and spanning tree protocol for network redundancy.

Built to withstand harsh conditions, the device has an IP30 rating and operates reliably within a wide temperature range of -40°C to 75°C and relative humidity from 5% to 95%. Its compact dimensions (76.8 mm width, 107.3 mm depth, 152 mm height) and DIN rail or wall mounting options make it suitable for various industrial installations.

Additional features include auto MDI/MDI-X support, MAC address auto-learning and aging, jumbo frame support up to 10000 bytes, and a switching capacity of 56 Gbit/s. The switch does not support Power over Ethernet (PoE) but includes DHCP features such as DHCP Option 82, relay, server, and snooping for enhanced network management.

Certified with FCC Part 15 Class A and CE standards (EN55032, EN55035, EN 62368-1/IEC 62368-1:2014), the PLANET IGS-6325-8T8S ensures compliance with international safety and electromagnetic compatibility requirements. Its blue and white color scheme and LED indicators provide clear status monitoring for efficient network management.
