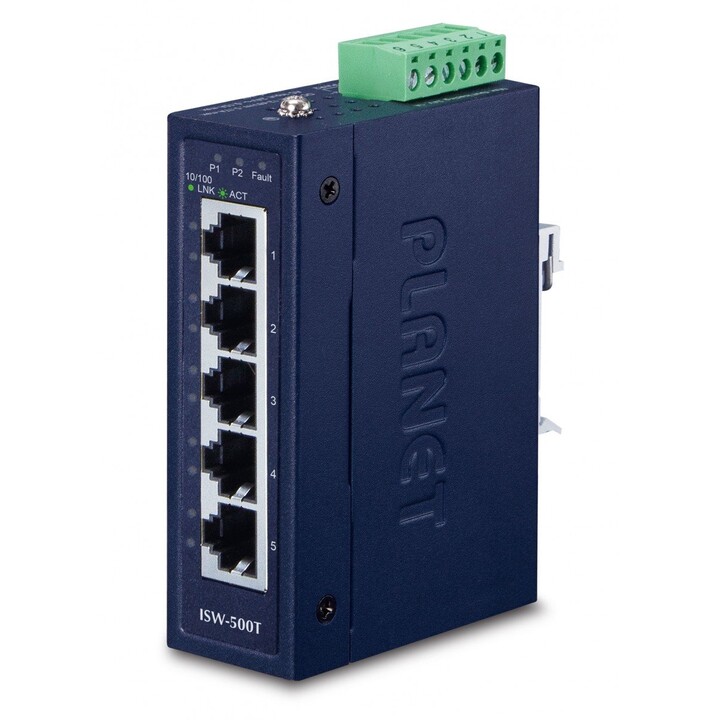

PLANET ISW-500T switch Unmanaged Fast Ethernet (10/100) Blue

The Planet ISW-500T is a compact industrial Ethernet switch designed for reliable network connectivity in demanding environments. Featuring 5 Fast Ethernet 10/100TX RJ-45 ports, this unmanaged switch supports essential networking standards including IEEE 802.3 and IEEE 802.3x with full duplex and flow control capabilities. Its rugged design allows operation in extreme temperatures ranging from -40 to 75°C, making it suitable for industrial applications.

Installation is flexible with both DIN-rail and wall-mount options included. The switch offers a non-blocking 1Gbps switch fabric and a throughput of 0.74Mpps at 64 bytes, ensuring efficient data transfer. Additional features include auto MDI/MDI-X, MAC address auto-learning and aging, and port-based authentication for enhanced security.

With an IP30 protection rating and LED indicators for activity, fault, link, and power status, the ISW-500T provides clear operational feedback. It consumes minimal power, with a maximum of 2W under full load, and supports DC input voltage from 12 to 48V. The device is FCC Part 15 Class A and CE certified, ensuring compliance with international standards.

This switch is ideal for industrial network setups requiring a durable, easy-to-install, and efficient unmanaged Ethernet solution.
